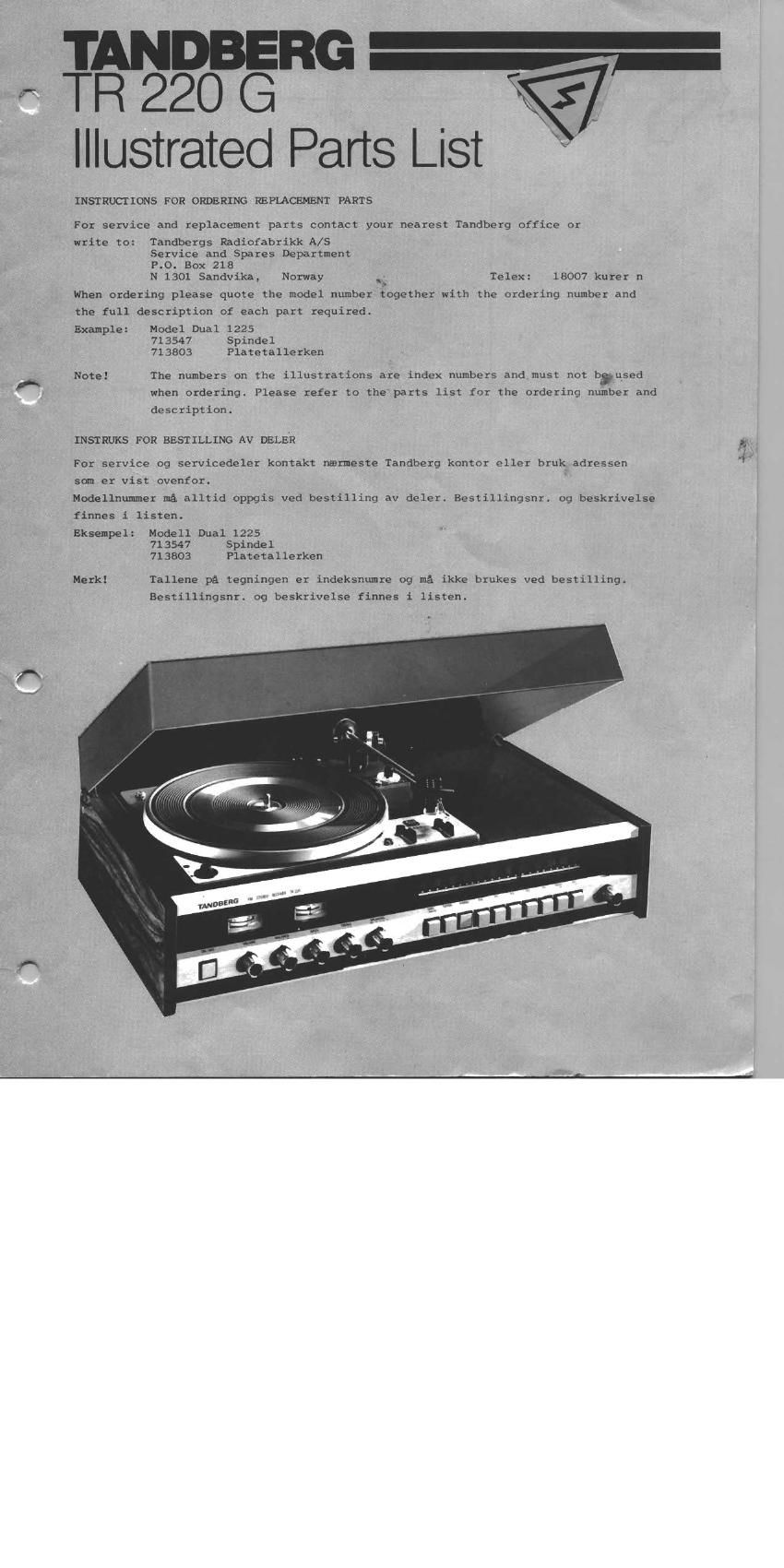

*2 TR 220 G

Illustrated Parts List

INSTRWTIONS FOR ORDERING REPLACEMENT PARTS

For service and replacement parts contact your nearest Tandberg office or

write to: Tandbergs Radiofabrikk A/S
Service and Spares Department
P.O. Box 218
N 1301 Sandvika, Norway w; Telex: 18007 kurer It

When ordering please quote the model number together with the ordering number and
the full description of each part required.
Example: Model Dual 1225

713547 Spindel
713803 Platetallerken
Note! The numbers on the illustrations are index numbers and must not ba'used

when ordering. Please refer to the'parts list for the ordering number and

desc ript ion .

INSTRUKS FOR BESTILLING AV DELEh

+3.

For service 09 servicedelez kontakt naarmeste Tandberg kontor eller bruk adressen

sun er vist ovenfor. :
Modellnummer ma alltid oppgis ved bestilling av deler. Bestillingsnr. og beskrivelse
finnes i listen.

Bksellpel: Modell Dual 1225

713547 Spindel
713803 Platetallerken
Merk! Tallene pa tegningen er indeksnumre 09 m3 ikke brukes ved bestilling.

Bestillingsnr. og beskrivelse finnes i listen.

Page 2

MR" 9'1": N bk-kc (urban) Duo-Minn (I) KIW
1 992936 Skxue Screw, transport, assembly
3 7134540 Adapter Disc, centring
4 713547 Spindel Spindle
5 713613 Skive Disc, facing
6 713543 Ring Ring, retnining
7 713705 Ring Ring, facing
5 713802 Mute Hat, turntable. complete
9 713803 Platetallexken Turntable. complete
10 713708 Knapp Knob, speed regulator
11 713706 Ring Ring, dial
12 713659 Skrue Screw, adjustment
13 713863 Pickup Cartridge, [MS 210
14 713864 Stlft Stylus, w 211 {01' [MS 210

713666 .5th Stylus, w 201 for ms 200
15 950217 Hal Template, caxtridqe mounting
17 713506 Oppheng Suspension, coaplete
18 713807 Hodz Head, tone arm, with lead
24 713622 Holder Mounting, cartridge. TX 14
25 713805 Statre Support, tone um, assmbly
26 219162 Mutter Nut, 3 In
33 713720 Hendel Lover
34 713653 Skill Plate, name
35 713815 Plate Plate, 1225
36 713624 Knapp Knob
37 237970 Skive Washer, lock, 1.5 m
35 713634 Hylse Sleeve, adjuster
39 713683 Tapp Pivot. bearing
40 713659 anr Spring, compression
41 210556 Skrue Screw, 3 x 3 In
42 711324 Deksel Covet, with It pin
43 713674 Skrue Screw, Adjuster
44 713709 Am Handle, tone an:
45 268192 Munex Nut, 2 Inn!
46 713317 Plafia Plate, chassis
47 713613 Nagle Pin, semicircular, 2 x 6 nm
49 713620 Skxue Screw, transport, assembly
54 713820 Am Tone am, cmplete
55 713821 Vekt Weight
57 713323 lager Beaming, complete
58 713809 Hus Housing, spxing
59 713704 Plate Plate
60 237905 Skrue Scxaw, 3 x 8 III
(:1 713703 Skrue Screw, adjusting
62 713794 Fjux Spring, compression
63 215320 Skive Washer, 3.4 x b x 0.5 m
64 713627 Sktue Screw, se
65 713702 Mutter Nut, lock
66 713310 Brake" Bracket, beating, complete
67 713701 Vise: Pointer
68 713707 Skrue Screw, bearing
69 713725 Knapp Knob, antiskating
