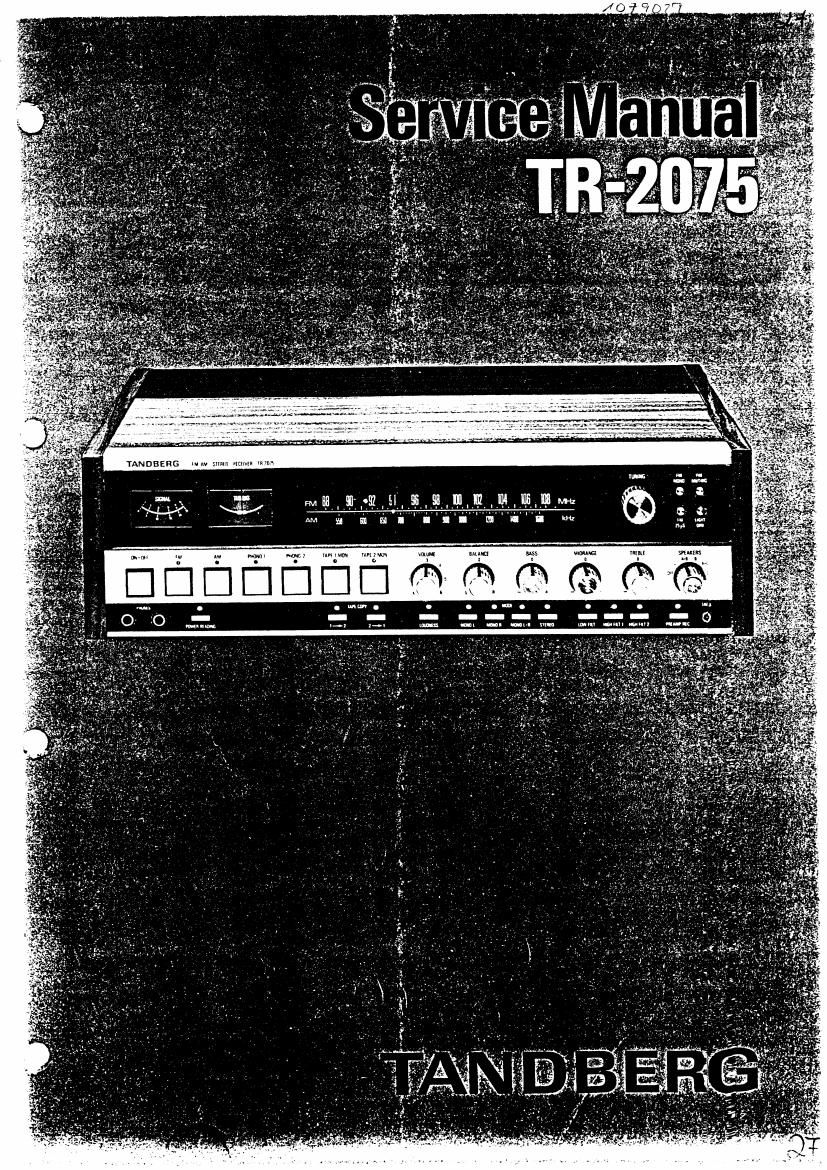

Tandberg TR 2075 Schematic
This is the 15 pages manual for Tandberg TR 2075 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 15
Extracted text from Tandberg TR 2075 Schematic (Ocr-read)
Page 2
MECHANICAL SERVICE
Removing the cabinet.
Unscrew the screws in the side plates and take the plates
off.
The top plate is then free to be removed as shown in
the figure.
FM and AM tuner.
Swing the tuner up to the posirion shown in Figure 1.
Put a. screwdriver or similar into the hole in the cooling »
fin as shown in Figure 2.
