Tandberg TR 2030 Service Manual

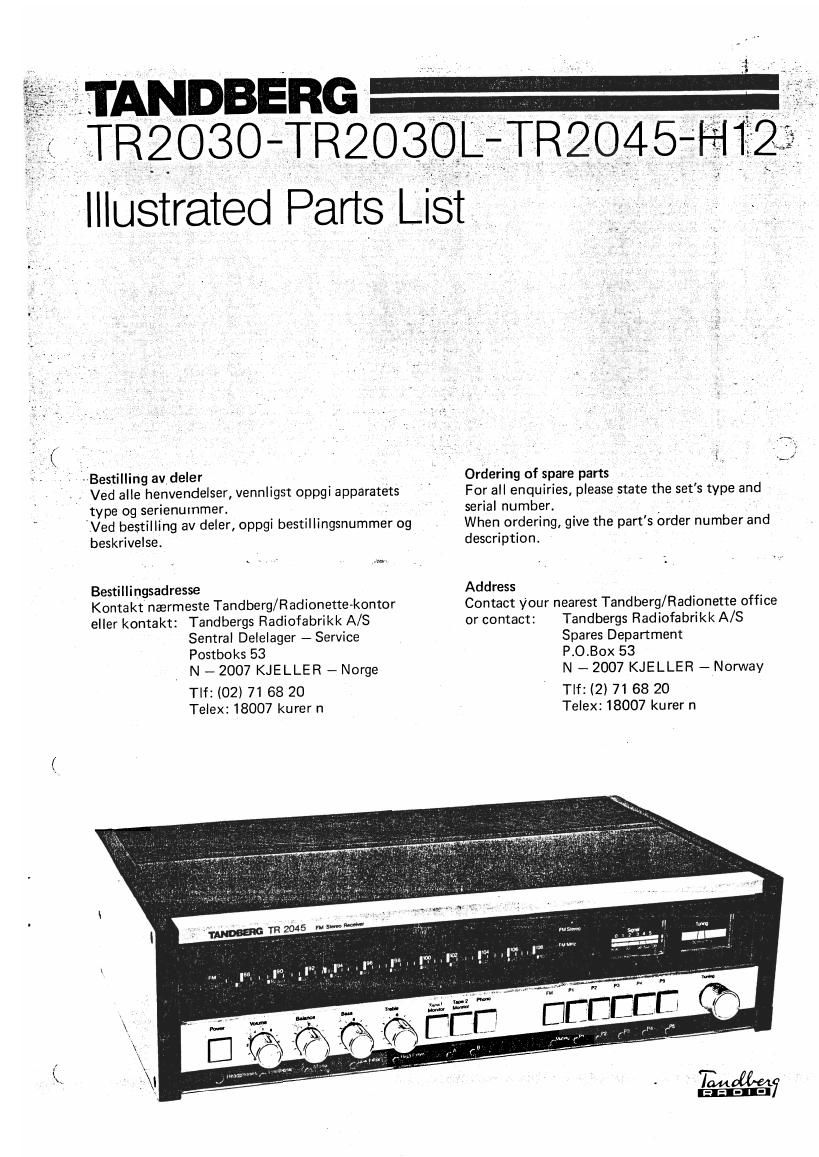

Page 1

TANDBERG =

*TR2OSO- TR203OL TR2045

'lllustrated Parts LIst

"Bestilling av_ deler

, Ved alle henvendelser, vennligst oppgi apparatets
type 09 serienummer

'Ved bestilling av deler, oppgi bestillingsnummer og
beskrivelse.

,m

Bestillingsadresse

Kontakt naermeste Tandberg/Radionettekontor

eller kontakt: Tandbergs Radiofabrikk A/S
Sentral Delelager - Service
Postboks 53
N - 2007 KJELLER - Norge

Tlf: (02) 71 68 20
Telex: 18007 kurer n

Ordering of spare parts

For all enquiries, please state the set 5 type and
serial number.

When ordering, give the part' 5 order number and
description.

Address
Contact your nearest Tandberg/Radionette office
or contact: Tandbergs Radiofabrikk A/S
Spares Department
P.O.Box 53
N - 2007 KJELLER - Norway

Tlf:(2l7168 20
Telex: 18007 kurer n

Page 2

Chassis assembly

Reference .4

Index Ordering No. Eeskrlvelse(mlr nadev] Descrimionmmes)
- SJASSIs-EMET CRASSIS ASSEMBLV
1 372385 SKINNE PLATE. 1110111 1112030. rR2045
374418 sKINNE PLATE. vRONT 11120301.
373010 SKINNE PLATE. FRONY 1112113
2 343622A RAMME SURROUNO. PUSN BUTTON. PLASTIC
3 341589: ARH ARM. PUSR BUTTON
4 374914 KNAPP BUTTON. PUSH ON-OTP. PRONO. P11. ETC.
5 341941: LAGER HEARING. N1LON
6 363047 KNAPP KNOB vDLLmE. aALANCE. aAss.
TREELE
7 369755 KNAPP KNOB YUNING
8 991005 KONTAKT SOCKEY. JACK: 3 POLE 1/4 1N. PNONES
9 343270 ARM BUTTON. PUSH. BLACK. PLASTIC LOUDNEss. HONO. LO-FILTI
10 349497 ARM BUTTON. PUSH: BLACK. PLASTIC SPEAKERS. MUTE
11 330281 POTENSIONETER POTENYIOHETER. 100 K 01111 P1: P2. P3. EN.
12 374066 LIST HOULDING. FION74 PLASTIC TR2030: 1R2030L. TR2045
379691 LIST MOULDING: FRONY. PLASTIC 1112116
13 342408 SKINNE PLATE. CHASSIS. SIDE
14 346854 SKRUE SCREW. 3.5 x 6.3 NM HEX ND. HXVH COLLAR
15 217280 HUTTER _ N01. 4 1111
16 360410 PLATE covER. BOTTOM TRZD30. TR2030L. TR2045
362090 PLA1E COVER. BOTTOM 1112113
17 352421 POT 1001. PLASTIC
18 361796 LOKK COVER. BLACK PLASTIC
19 370352 SKINNE PLATE. REAR 1112030. razoch. 1112045
370977 SKINNE PLATE. REAR 1112113
20 334326 KONTAKT SOCKET. ANTENNA EuROpsAN vznsmu
994238 KONTAKT SOCKET. ANTENNA 11,5... 115:5on
312063 KONTAKT SOCKET. ANTENNA 11¢ng
21 374677 ETIKETT LABEL. TR2030L 11120301.
356523 ETIKETT LABEL 1112MB
22 363909 ROLDER ROLOER. FUSE
23 272287 SIKRING 105E. 1 A. 5 x 20 m1. SL011 TR2030. TR2030L. 1412118-
220 - 240 v
272207 SXKRING FUSEa 146 A; S X 20 MM. $1.041 7820451 220 - 240 V
265736 SIKRINE PUSE. 2 A. 5 x 20 MM. SL9 TR2030. 1112115. 120 17
291151 sIKRING KUSE. 3.15 A. 5 x 20 m1. SLOU 1112045. 129 v
24 341467 BRAKETT BRACKET. REATSINK TRZD30. TR2030L. 1112MB
25 371517 TRANSISTOR TRANSISTOR. BD809
26 373498 TRANSISTOR TRANSISTOR. BO810P
27 335733B SKIVE B0511. PLASTIC
28 ' SKIVE HASHER
(LEV. M/TRANSISTORER) (SUPPLIED 111714 TRANSISTORS)
29 344412 SKIVE uASRER. 3.2 MM TR2030L
30 219162 HU1TER NUT. 3 MM
31 356883 SKINNE REATSINK TR2045
32 360067 TRANSISTOR TRANSISTOR. 2116052
33 341748 TRANSISTOR TRANSISTOKT 51>st
34 317243 VINKEL BRACKET. ANGLE
35 231875 SKIVE uAsNER. 3.2 MM
36 352787 SKRU: SCREW. 2.9 x 13 m1 NEx ND. 01111 {DLLAR
37 281454 TUBE TUBE. CABLE. P011211
38 357630 LEDNINC CABLE. PORER. UITR EuROPLUa EUROPEAN VERSION
346388 LEDNING (ABLE. POuER u.s.A. VERSION
39 994234 KOAT BOARD. OUTPUT AMPLIEIER
40 268832 KONTAKT SOCKET. 5 PIN DIN 180 DEGREES PNOND. TAPE 1. TAPE 2
41 373872 KONTAKY TERMINAL-STRIP. SPRING LOADED. I. HA1 SPEAKER;
42 344089 SKINNE PLATE. CRAssIS 1R2030. 1R2030L. 1R2045
340375 SKINNE PLATE. CHASSIS 1112110
43 355431 TRANSFORMATOR TRANSPORHER 1112030. 1R2030L. 1112115
355079 TRANsPORMATOR YRANSFORHER 1R203OL AL1ERNA1IvE
356912 TRANsPORnATOR TRANSFORMER 1R2045
44 348442 BRAKETT BRACKET TR2045. 111an
45 289714 KLIPs CLIP 1112030. zuxoL
46 309901A PLATE BOARD
47 352709 BRAKETT BRACKET. SUPPORT. BOARD 1R203OL. 1112118
48 994237 KOR1 BOARD. 711- 1 DEcoDER 1R203OL. 1112MB
49 993300 TUNER TUNER. PH TR203O. TR2030L. 1112118
995848 TUNER TUNER. n1 TR2030L. 1R2045
50 994232 KORT BOARD. FM-IF o DECODER TR2030. TR2O45
51 994245 KORT BOARD. AM TUNER 1R203OL
994249 KORT BOARD. A11 TUNER 1112MB
52 360467 NOLDER PILLAR. CIRCUIT BOARD
53 994241 KORT BOARD. n1 PRESET TRZOIO. T112045
994246 140111 BOARD. r11 PRESET TRZOXOL. 11121-3
54 345217 K081 BOARD. PRINTED CIRCUIY 1112119
55 994233 KORT BOARD. TONE CONTROL
56 277509 HOLDER ROLDER. rUSE
57 310124 LANPE BULB. 12 v 3 U
58 270526 SXKHNG FUSE! 500 MA. 5 X 20 MM. SLOLI
59 345798 vENDER SHITCN. PUSN 011-0
60 344951A ARM ARM. PUSH BUTTON
61 370704 SKINNE MOULDING. FRONT TR2030
372737 SKINNE NOULOINC. FROM 1R2030L
374102 sKINNE MOULDING. 1R0N1 1R2045
371329 SKINNE MOULDING. FRONT 1412MB
62 309132 SKINNE PLATE. TOP TR2030. 1R2030L. 1R2045
343112 SKINNE PLATE. TOP 111MB
63 347277 KABINETT PANEL. ROSELOOO
348958 KABINETT PANEL. uALNUT 1R2030. 1R2030L. T112045
354690 KAEINETT PANEL. ASH. BLACK
353017 xABINETT PANEL. TEAK
346056 KABINETT PANEL. ROSEUOOD 1112115
347737 KABINETT PANEL. UALNUT
355592 KAEINETT PANEL. BLACK
64 358937 SKRUE SCREW 4 x 20 1111 C11 RD. BLACK
