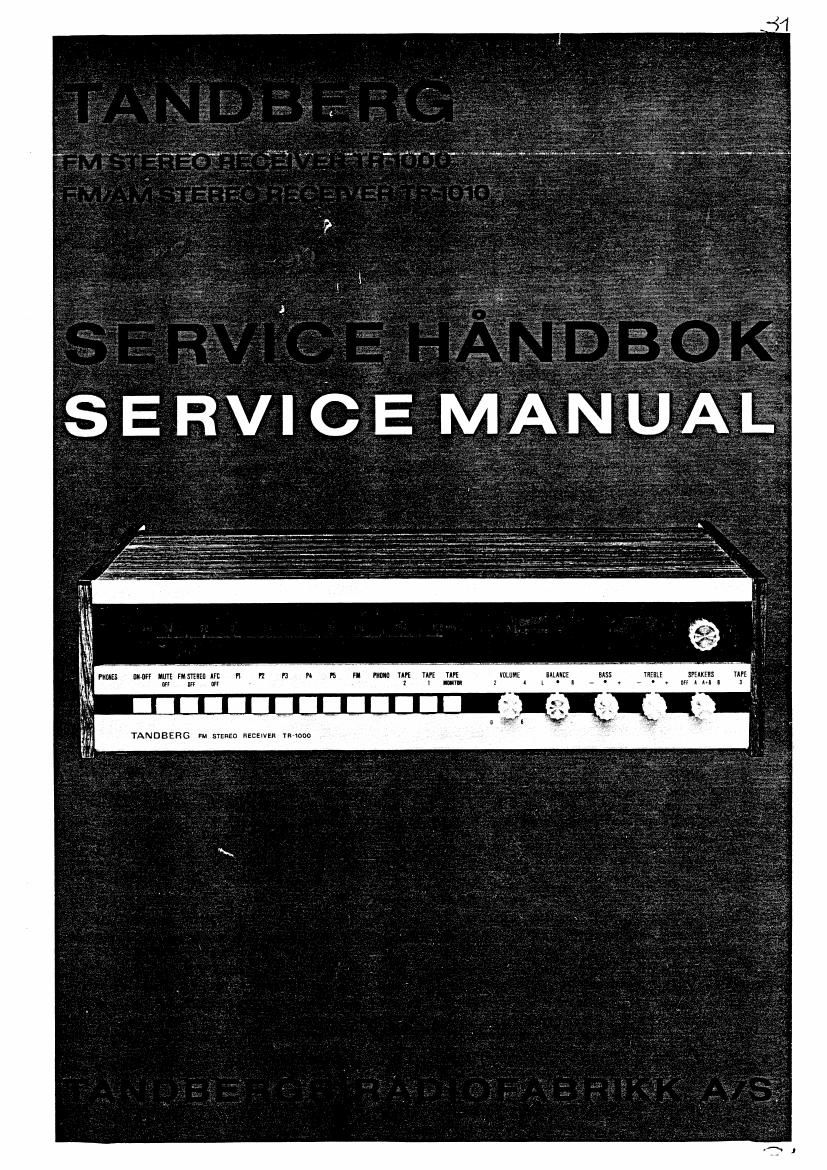

TANDBERG FM SYERED RECEWER "'0ch
Page 2
Denne service-handboken dekker TR-1000 og TR-1010 med deres variasjoner:
TRA1000(FM7mottaker med 5 forinnstiite FMestasjoner).
TR-10tO (FM/AM mottaker med 4 forinnstilte FM-stasjoner 09 MB).
TFl71010 med territtantenne for MB.
TR-tOOO og TR-lOlO med mikrofonforsterker.
This service manual Covers TR-1000 and TR-1010 and their different versions.
TFt-1000 (FM receiver with 5 pretuned FM-stations).
TFl-1010(FM/AM receiver With 4 pretuned FM-stations and MW).
TFHOtO with ferrite antenna for AM reception.
TR-1000 and TR-1010 with microphone amplifier,
lnnhold:
Mekanisk service . ..................................................... 3
Vendere ........ . . . , . . . . , . . . .. 4-5
Eiektriske deler . , . . 677
Partslister med oversiktstegninger , . 879-10-11
. . 12
Trimming, stereodekoder ......
Trimming, FM-del ..... . .
Trimming, AMvdel .......
Trimming, iavfrekvensdel
Skjema, Iavfrekvensdel
Tryktkretskort ......... . , ,
Skiema, mottakerdel ..................
Tekniske data ....
Mikrofonforsterker
Endringer .............
Motstander, kondensatorer ........
,.13
..14
.15
.15
List of contents:
Mechanical service .............................................................. 3
Switches .............
Electrical parts .......
Parts lists with exploded Views
Alignment, stereo decoder
Alignment, FM»section
Alignment, AM-section
Alignment, audio section ..
Circuit diagram. audio section
Printed boards ........... ,...
Circuit diagram, tuner section
Technical specifications ,,,,,
Microphone amplifier . .
Modifications .......
Resistors, capacitors
VED ENHVER HENVENDELSE VEDRDRENDE APPARATET, VENNLlGST OPPGI TYPENUMMER OG
APPARATNUMMER
IN ANY COMMUNICATION PERTAINING TO THE EQUIPMENT, PLAEASE SPECIFY TYPE NUMBER
AND SERIAL NUMBER
