Tandberg TPT 3011 Brochure 2

Page 2

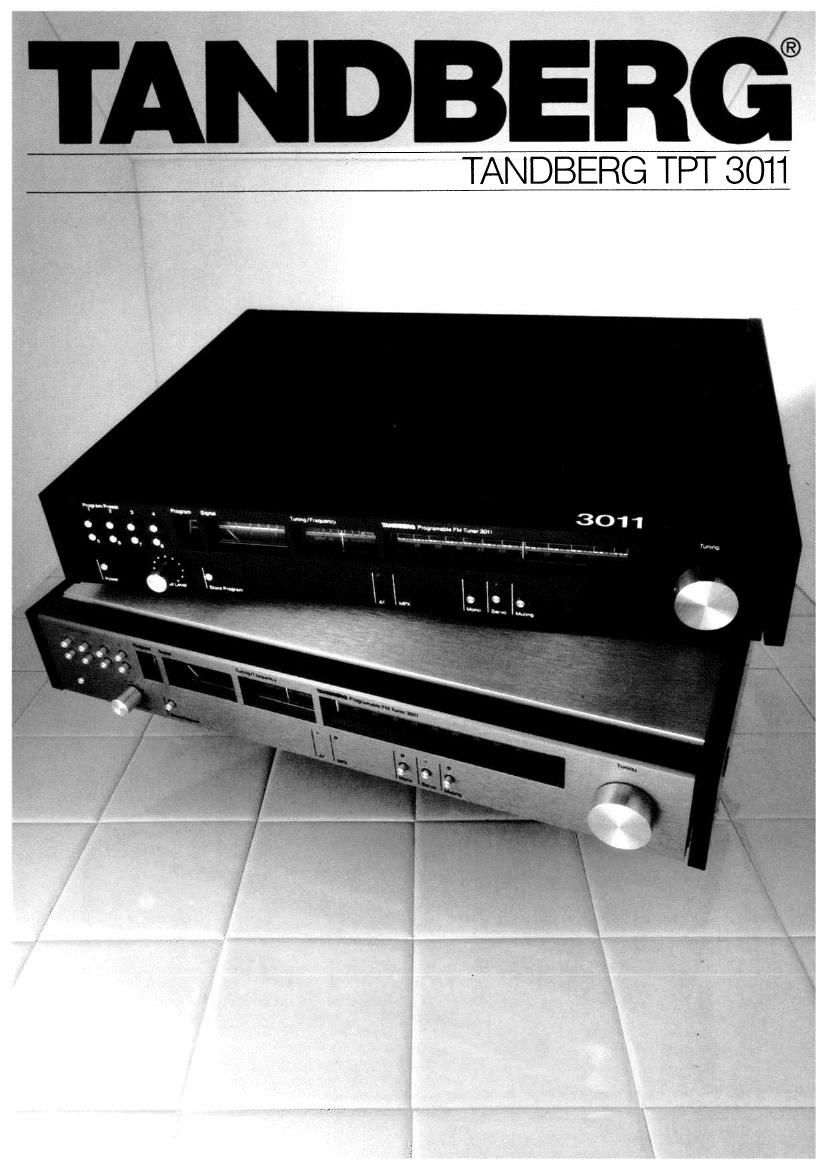

THE CONCERT TUNER

With the introduction of the TPT 3011 tuner,
Tandberg has taken another major step in their 50 year effort towards
the total accurate reproduction of music in the home.

Tandberg invested a tremen- ;

dous amount of research and
development time attempting to
design a tuner with much of the
performance, and many of the
features as the state-of-the-art
TPT 3001 yet achieving these
goals in a unit which would sell
for substantially less.

in the TPT 3011 Tandberg has
incorporated a touch sense
servo lock tuning system, 12 bit
microprocessor controlled
memory system for 8 FM presets,
a superbly flexible muting system,
and most importantly uncompro-
mised sound quality.

Much of this sound quality
may be attributed to Tandbergs
recent research and develop-
ment on the selection of

. component pans (capacitors,

resistors, transistors etc.) based
on their sonic characteristics

, and not just their electronic

specifications, as well as the
circuit lay-out.

Many capacitors in the TPT
3011, for example, are expen-
sive selected loll types due to
their ability to pass a signal with
far less distonion than
commonly used electrolytic
and ceramic capacitors.

it is of great interest to note
that even people who ask -Why
should I buy a tuner of this
quality, there is no station avail-
able to me with high quality
broadcast ability? - upon listen-
ing to their local stations on a
TPT 3011 in their home find their
assumption to be wrong.

As the lens of the camera
controls the ultimate quality of
the photograph, so does the
tuner for FM reception.

We at Tandberg suggest that
you listen to a TPT 3011 and
hear FM as FM should be.

zaei srv manual @ srv enswsv usfiuuameememau ta inwori Ui pewua

Power requirements: 230/115 V t10%. 50/60 Hz Capture ratio, selectively measured: 0.9 (18
Power consumption: 23 W Adjacent channel seleettvlty i 200 kHz: 14 63
Dimensions: Width: 17 1/8" (43.5 cm) Alternate channel selectile i 400 kHz: > 100 dB
Depth: 13 SM" (35.0 cm) Spurious response ratio: > 70 dB
Height: 3 1/4" ( 8.3 cm) Image response, ratio, balanced: > 95 dB
Weight: 12.6 lbs (5.8 kg) RF intermodulation: > 70 dB
. . AM su resslon ratio: > 70 dB
Technical Data according to lHF-T-200, 1975 s....,::......,...,.
|EEE std. 1851975 (60 Hz to 10 kHz, selectively measured): > 40 dB
, Subcarrier product ratio: 60 dB
Tuning range: 875-108 MHz 19 kHz suppression: 70 dB
Usable sensitivity: Mono 0.85 uV/75 ohms 38 kHz suppression: 60 dB
50 dB 39 sensltmty: Mono 1'5 W75 ohms Dynamic range of signal meter: 0.5 uVA100 mVI75 ohms
Stereo 20.0 uV/75 ohms
Signal to noise ratio: Mono 78 dB Option Extras;
Stereo 75 dB . , , ,
Mutiny threshold: 3 uVl75 ohms - Black acrylic or rosewood side wallstor freestanding unitst
Mutiny hysteresis: 5 dB 4 Attachment set for Installation in 19 inch racks.
Stereo threshold: 75 uVl75 ohms _ _ .
Stereo hysteresis: 8 dB 0 Specifications are subject to change for further
Frequency response Improvement Without notice.
30 Hz to 15 kHz: Mono + 0,5 dB-1 dB
Stereo + 0,5 dB-1 dB ®
Distortion at 50 dB quietmg Mono 0.3%
Stereo 0.3%
Distortion £1165 dBl
(0.5 mV/75 ohms an kHz): Mono 0.2% The European.
Stereo 0.3% . .
Distortion at 65 as: Tandberg is registered trademark for Tandberg A/S.
(30 Hz to 15 kHz) Mono 03% WORLD HEADQUARTERS;
Stereo 0.4%
lntermodulation distonion: Mono 0.2% Tandberg AIS .
Stereo 02% Post Office Box 53 N-2007 Kieller, Norway.
