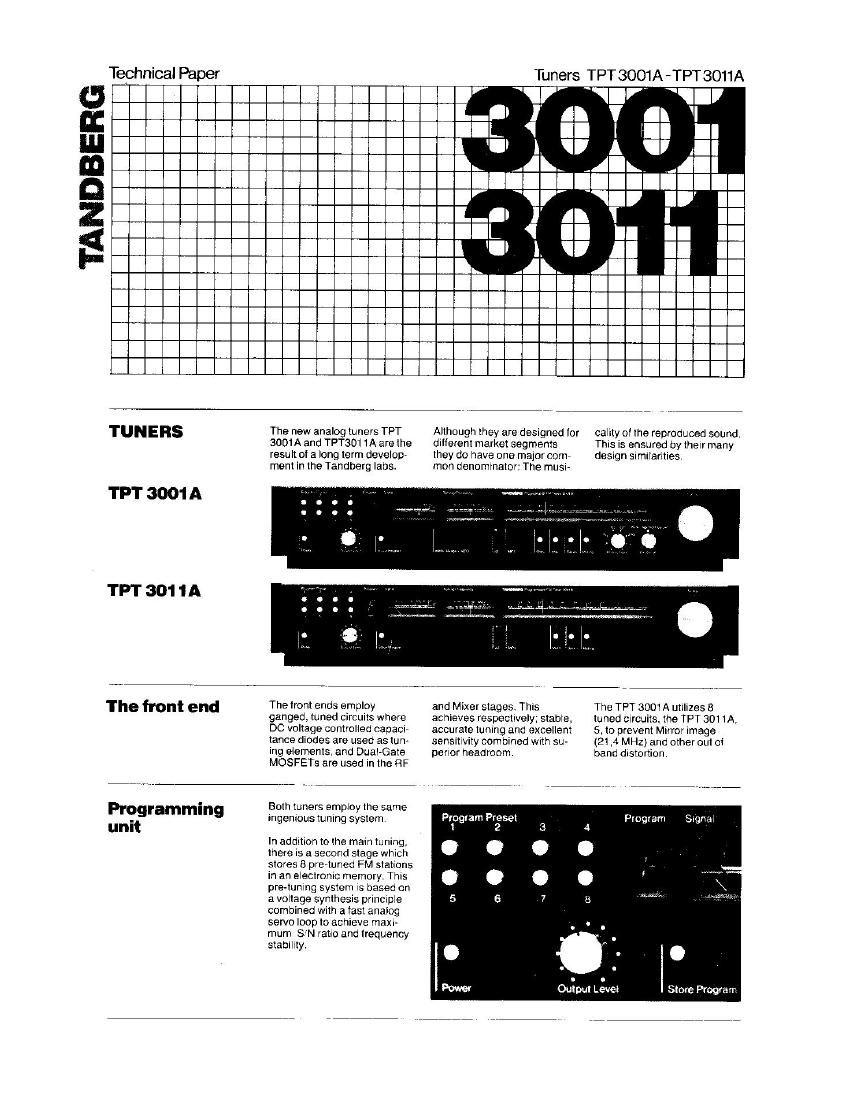

TANDBERG

Technical Paper

TUNERS

TPT 3001 A

TPT 301 1A

The front end

Programming
unit

The new analog tuners TPT
3001 A and TPT3011A are the
result at a long term develop
ment in the Tandberg labs.

The tront ends employ

ganged, tuned circuits where
DC voltage controlled capaci-
tance diodes are used as lun-
ing elements. and Dual-Gate
MOSFETs are used in the RF

Both tuners employ the same
ingenious tuning system

In addition to the main tuning,
there is a second stage which

stores 8 pre-tuned FM stations

in an electronic memory. This
pre-tunlng system IS based on
a voltage synthesis princrple
combined with a last analog
servo loop to achieve max.-
mum SN ratio and irequency
stability.

Tuners TPT 3001A *TPT 3011A

Although they are designed for

dilterent market segments
they do have one major com
mon denominator: The musr-

and Mixer slages. This
achieves respectively; stable,
accurate tuning and excellent
sensitivity combined wnh su-
perior headroom.

Pr ramPreset
{9 2

. o
Output Level

caltty ol the reproduced sound
This is ensured by their many
des>gn Similarities.

The TP'T 3001 A utilizes B
tuned CllCUiIS, the TPT 3011A,
5.10 prevent Mirror image
(21,4 MHz) and other out of
band distortion

Program Signal

Store Prograrr
