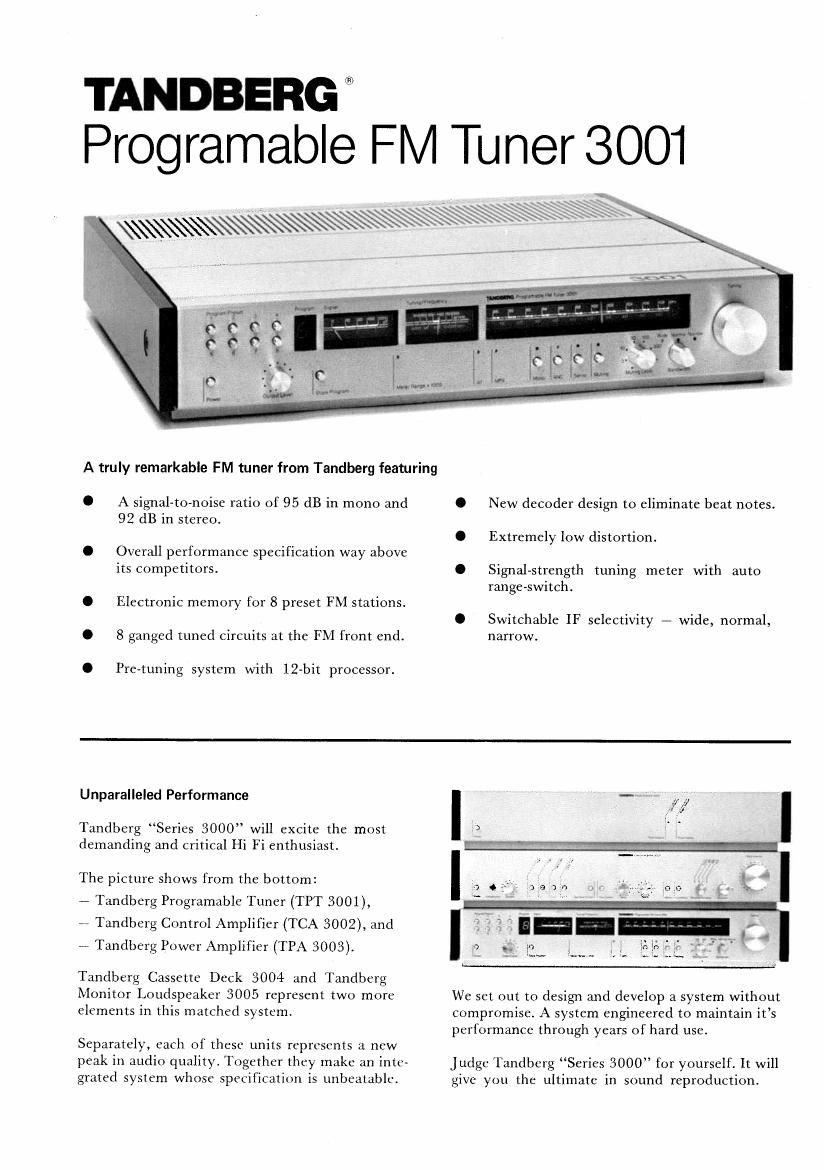

Programable FM Tuner 3001

A truly remarkable FM tuner from Tandberg featuring

O A sig-nal-to-noise ratio of 95 dB in mono and
92 dB in Stereo.

0 Overall performance specification way above
its competitors.

. Electronic memory for 8 preset FM stations.
0 8 ganged tuned circuits at the FM front end.

0 Pre-tuning system with 12-bit processor.

\\__\-
\\\\ r

éléc ,
"M...

.-l

.1

II, I; 5

C New decoder design to eliminate beat notes.
0 Extremely low distortion.

0 Signal-strength tuning meter with auto
rangevswitch.

O Switchable IF selectivity - wide, normal,
narrow.

Unparalleled Performance

Tandberg Series 3000 will excite the most
demanding and critical Hi Fi enthusiast.

The picture shows from the bottom:

- Tandberg Programable Tuner (TPT 3001),

w Tandberg Control Amplifier (TCA 3002), and
-~ Tandberg Power Amplifier (TPA 3003).

Tandberg Cassette Deck 3004 and Tandberg
Monitor Loudspeaker 3005 represent two more
elements in this matched system.

Separately, each of these units represents a new
peak in audio quality. Together they make an inte-
grated system whose specification is unbeatable.

S r > '
3 Q i9 5.}; o 1 3 c k . 5:-
-.. , . .. :

' I=--
, . --.l
_7 o. i") '

5 l5 7
t-.. L... ... :5. mg. _

We set out to design and develop a system without
compromise. A system engineered to maintain its
performance through years of hard use.

Judge Tandberg Series 3000" for yourself. It will
give you the ultimate in sound reproduction,

Page 2

The new programable FM tuner TPT 3001

The new analog tuner TPT 3001 is the result of
long term development in the Tandberg labs. It is
aimed at the professional market and its outstanding
specification confirms that it is in a class of its
own.

The unbelievable S/N performance has been made
possible by an analog system.

I; u u {1

FM Front End

The FM front end is an exciting new design. 8
ganged tuned circuits are used to obtain a startling
performance. DC voltage controlled capacitance
diodes are used as tuning elements and Dual-Gate
MOSFETS are used in the RF stage and the mixer
stage.

Programming Unit

The TPT 3001 employs an ingenious tuning
system. In addition to the main tuning stage, there
is a stage which permits data on 8 pre-tuned FM
stations to be stored in an electronic memory. This
pre-tuning circuit is based on the voltage synthesis
principle combined with a fast analog servo loop to
achieve maximum S/N ratio and frequency stability.

3001

a
I:

Inside view of TPT3001 with
stereo decoder board and
tuning circuits.

'is Ill

IF selectivity

The filter circuits can be switched to three different
bandwidths. The filters consist of phase-linear
block-filters and pure LC filters to combine high
selectivity with extremely low distortion.

Limiter

The limiter has exceptionally good AM suppression
and interference rejection. Moreover the limiter
guarantees a constant signal output over a very
wide range of signal input level. The high definition
of the signal meter range is also due to the excel-
lence of the limiter circuit.
