Page 1

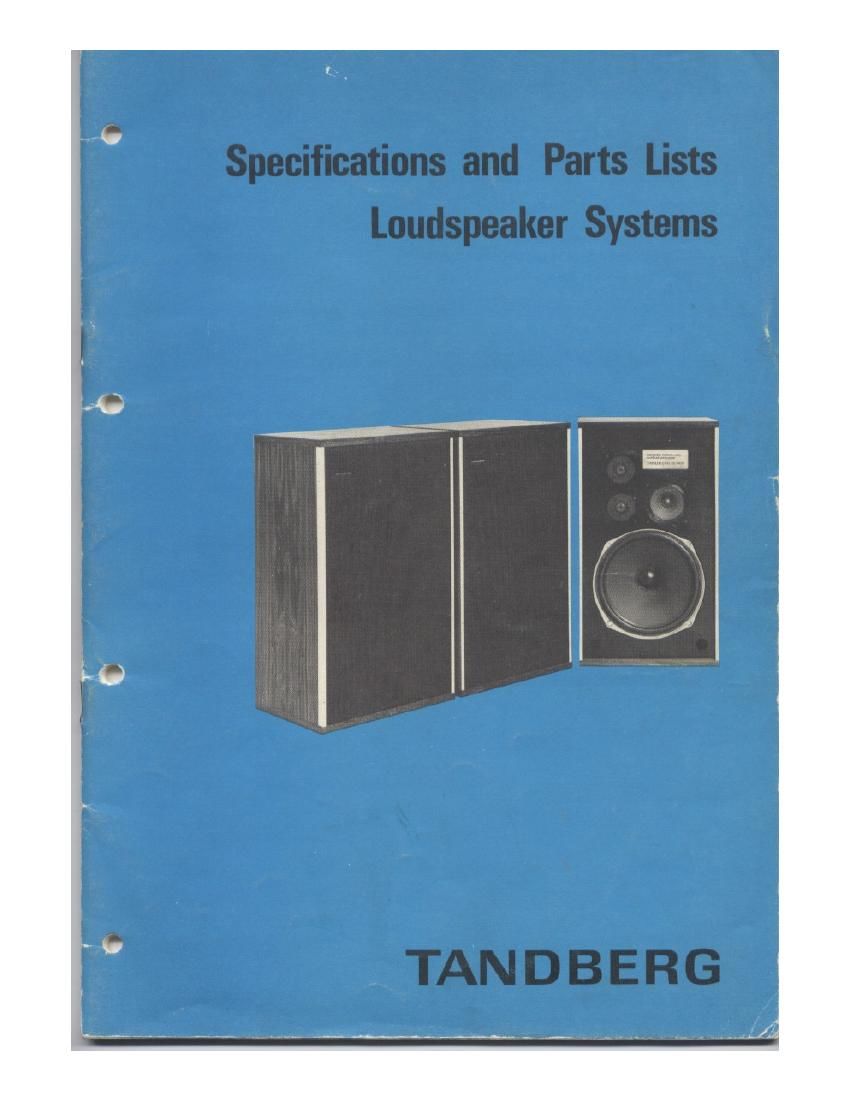

Specifications and Parts Lists
Loudspeaker Systems
TANDBERG
Page 2
Specifications and Parts lists
Loudspeaker Systems
TANDBERG
Page 8
. HI F|11
0
Technical specification:
1 Dimensions '. B:13(32 cm),H:8 1/2(21 cm),D: 6"(15 cm)
Internal volume : 0.27 cuff. (7.6 I)
y Weight : 6.7 1b (3 kg)
1 Impedance :4- ohms
Crossover frequency : 3500 Hz
Resonance frequency : 90 Hz
Frequency range (DIN 45570) : 60 to 16000 Hz
Sensitivity (DIN 45500) : 4 Watts
Max. continuous power (DIN 45573) : 20 Watts
! Complement:
* Woofer :HTB 113
or HTC 113, 4 ohms, 6 1/2, part No. 264133
. Tweeter :HT 106 5 ohms, 2, part No. 211879
Gasket in front of the tweeter: part No. 224508
Crossover filter components :
Filter board: pan No. 994732
3 L1: 0.19 mi, part No. 980147
; c1: 8 ur, part No. 276109
1
Diagram :
HTC 113 seen
from behind.
Notes:
* As a spare part for HTB 113 only HTC 113, part No. 264133 can be delivered.
