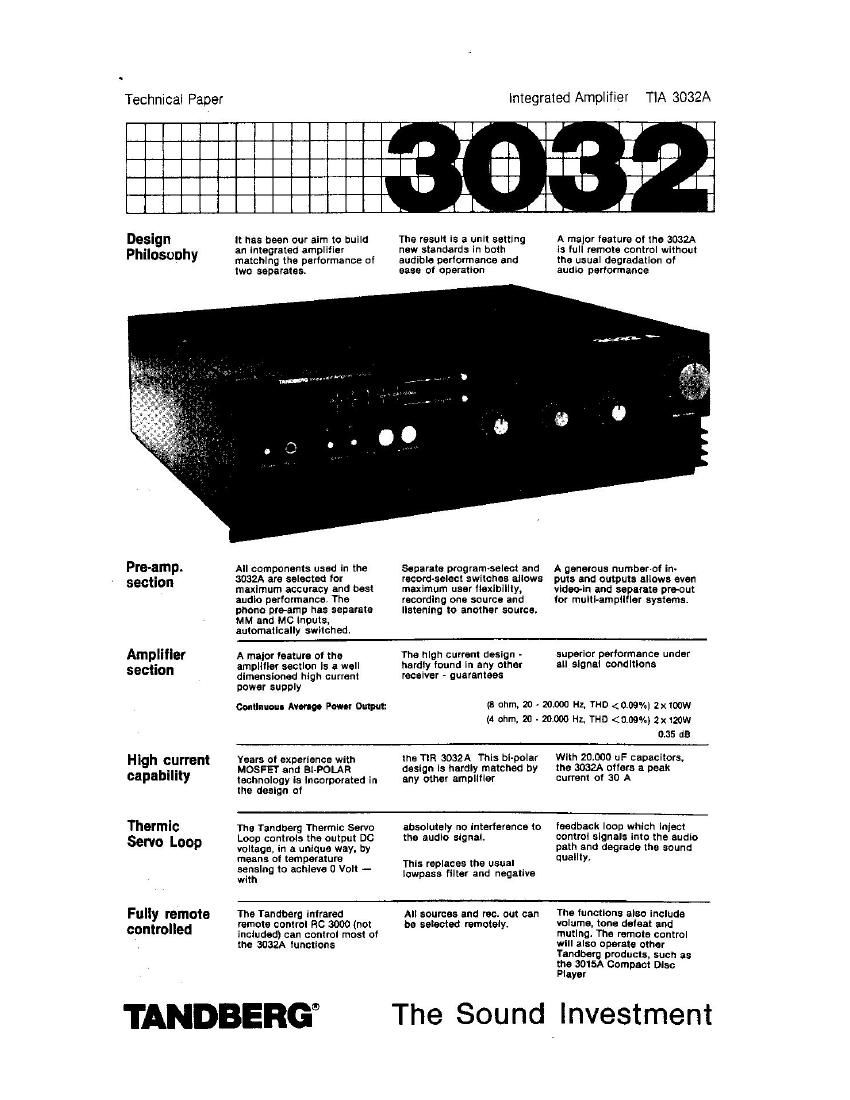

Tandberg TIA 3032 A Brochure

Page 1

-.

Technical Paper

Integrated Amplifier

TIA 3032A

Design
Philosophy

it has been our aim to build
an Integrated amplifier
matching the performance of
two separates.

The result is a unit setting
new standards in both
audible performance and
ease at operation

A major feature of the 3032A
is full remote control without
the usual degradation of
audio performance

Pre-amp.
section

Amplifier
section

High current
capabflfly

Thermic
Servo Loop

Fully remote
controlled

All components used in the
3032A are selected for
maximum accuracy and best
audio performance. The
phone pre-arnp has separate
MM and MC inputs,
automatically switched

Separate programselect and
record-select switches allows
maximum user flexibility,
recording one source and
listening to another source.

A generous number of in~
puts and outputs allows even
videoin and separate pro-out
tor multl-ampiliier systems.

A malor ieature of the
amplifier section Is a well
dimensioned high current
power supply

continuous Aver-go Power Output:

Years of experience with
MOSFET and Bi-POLAR
technology is incorporated in
the design of

The high current design .
hardly found In any other
receiver < guarantees

superior performance under
all signal conditions

(8 ohm. 20 - 20.000 Hz, THD (0.09%) 2x wow
(4 ohm, 20 - 20W HL THD (0.09%) 2)( WOW

the TIR 3032A This bl-polar
design is hardly matched by
any other amplifier

0.35 as

with 20.000 uF capacitors,
the 3032A otters a peak
current of 30 A

The Tandberg Yhermle Servo
Loop controls the output DC
voltage, in a unique way, by
means oi temperature
sensing to achieve 0 Volt -
with

absolutely no interterence to
the audio signal.

This replaces the usual
Iowpase filter and negative

feedback loop which Inject
control signals into the audio
path and degrade the sound
quality

The Yandberg infrared
remote control RC 3000 (not
included) can control most or
the 3032A iunctlons

TANDBERG

All sources and rec. out can
be selected remotely.

The Sound

The functions also include
volume. tone defeat and
muting. The remote control
will also operate other
Tandberg products. such as
the 3015A Compact Disc
Player

investment
