TANDBERG =-

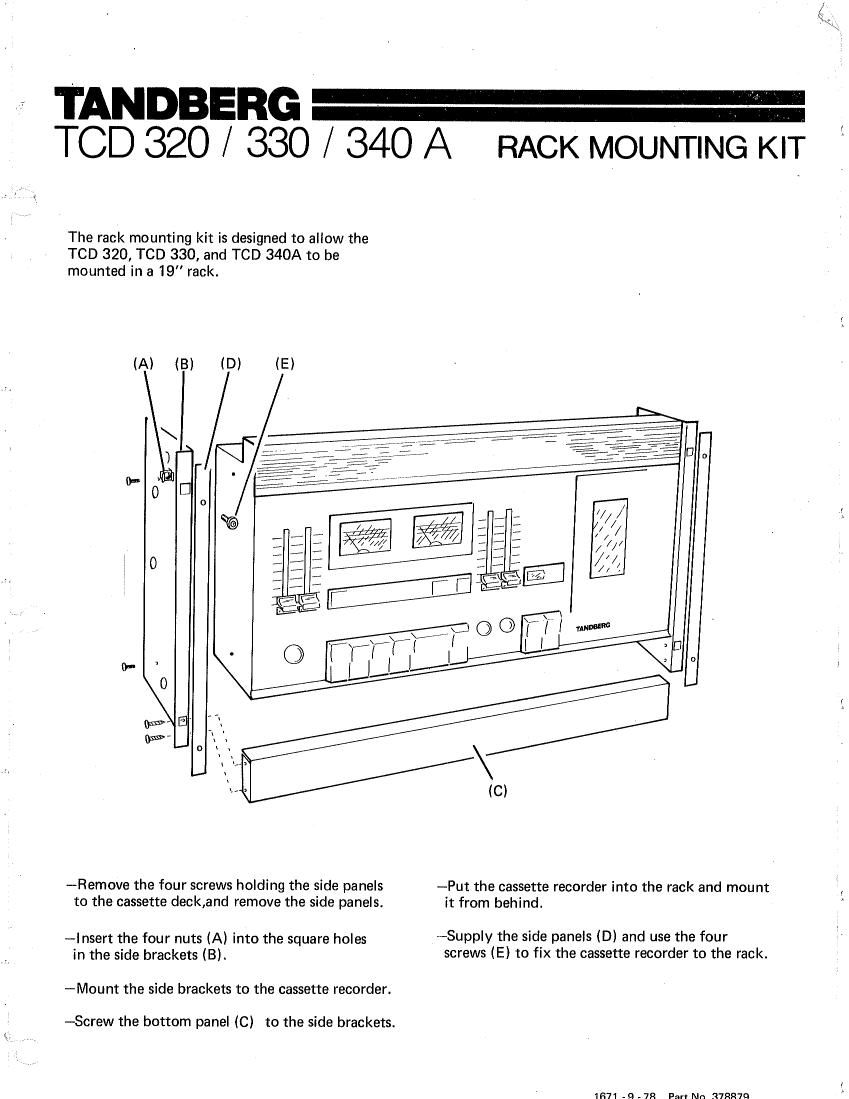

TCD 320 / 330 / 340 A RACK MOUNTING KIT 7
The rack mounting kit is designed to allow the
TCD 320, TCD 330, and TCD 340A to be
mounted in a 19 rack.
(A) (B) (D) (E)
(c)
-Remove the four screws holding the side panels ~Put the cassette recorder into the rack and mount
to the cassette deck,and remove the side panels. it from behind.
-Supply the side panels (D) and use the four
-lnsert the four nuts (A) into the square holes .
screws (E) to fix the cassette recorder to the rack.
in the side brackets (B).
-Mount the side brackets to the cassette recorder.
--Screw the bottom panel (C) to the side brackets.
1671 -9 - 78 Part Nn 37RR79
