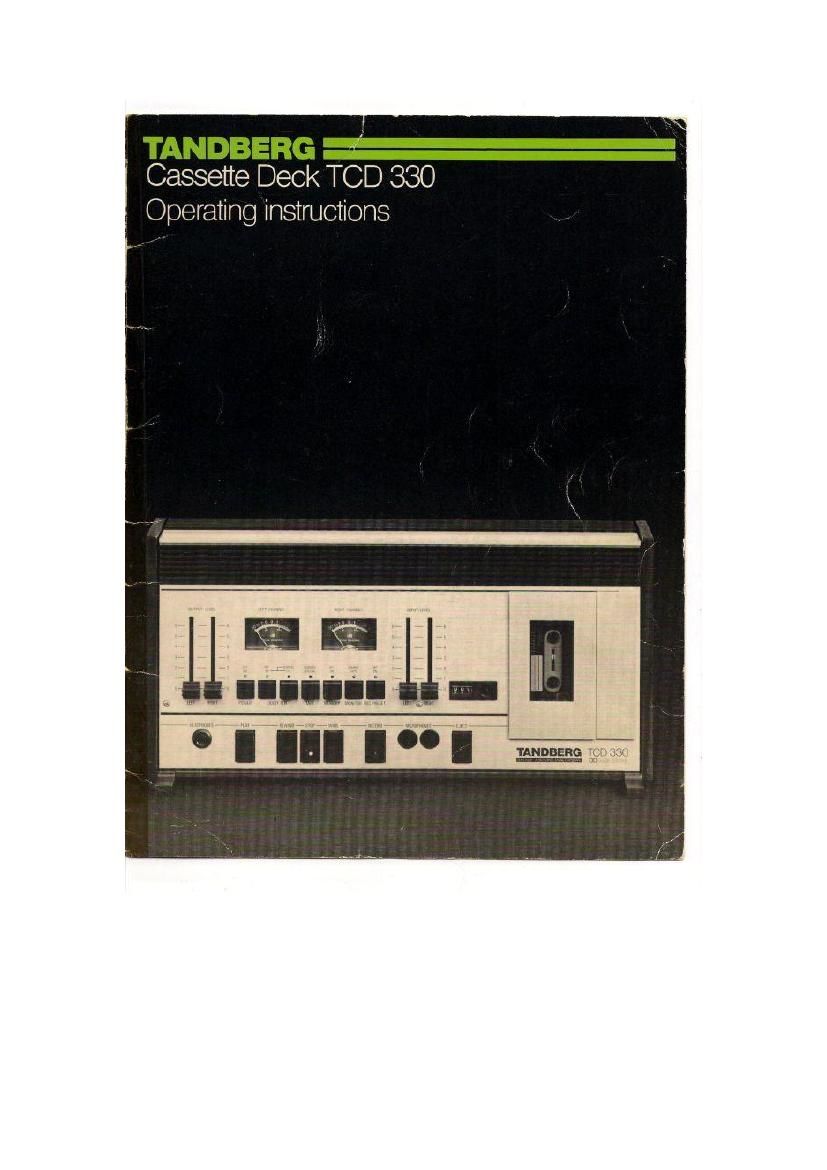

Tandberg TCD 330 Owners Manual

Page 2

No ordinarveossette recorder . . . ..

Tandberg JD 330 is a cassette recorder with very special features. The machine it equipped with In.
mic km, a leature normally found only on reel-to-reel machines. The three heads are the crate
head, the record head. and the playback had. When a recording is being made on the TCD 330, you
can - while lltl: recording is going on ~ listen to the tape via the playback head. This emble- you to
make sure that the recording is tree from noise and distortion.

TM 19! mm" in the ND 330 is unique. Two upturn - one before and one after the herds -

ensure constant and accurate tape tension. Three motors provide rapid spoofing and reliable forward \V
drive. The mechanical noise level is also very low because then is no clutch or mechanical transmirsion.

Special electronic circuits ensure that the tape automatically receive: the correct tension when a cassette

is inserted. and that the forward drive is automatically disconnected if the tape jams. The tape speed is

Eryn-regulated.

The modes ot opt-ration are controlled by electronic logic circuits. In practice this means that the

number of mating parts has been rcdmtcd to the absolute minimum. Most of the old mechanism have ,
been replaced by electronic components that endure for a very long time without the slightest degree of

wear action. The logic circuits"think for themselves" and ensure that the tape '3 correctly controlled

at all rimrs.

Belote you start to use the TCD 330 we suggest you note the following rules regarding recording. Follow
these rules and you will always be sure of first class results.

I. Use top quality cassettes (see page 7).

2 Remember to adjust the azimuth heforc recording (see page ID).

3. Take can: when setting the INPUT LEVEL controls (sec page 13).

4. Monitor Il'tt program quality during lht recording (Ice page H).

5. Clean the tape path regularly (see page )8).

Content: For your safety

Preparation for use . . . 3 To prevent electriul shock or fire, do not expose
DOLBY N.R., tape sele: r, In this product to rain or moisture and do not remove
pilot tone filter ................... . 8 cover (or back). .10 user-serviceable pans inside.
Azimuth adjustment for the record head . . 10 leave the Iepain to a qualified techniean.
15:11? i: If this product it fitted with a 55-min power cable,
Coy ing 9 16 connect the cable to a 3-pin power plug and plug it
SP3. mod 3 éfimm ' ' 17 into a grounded power outlet. 11.: ground wire in
Protecting a. recording . . )8 the power cable I: green and yellow.
Maintenance . . ..... . . 18 Specially [or the United Kingdom: .-
Tl': 0" Vs'm' Wm" ' :3 IMPORTANT! The wires in this mains lead are
Blockilisagrim 23 coloured in accordance with the Following code:
Technical data. 23 Gmnmdvellow Emmy
Trouble shooting ....................... 24 Blue Neutral (M

Brown : Live (1.)
This mains lead must be connected to a 3-pin maint
plug in accordsnee with the above code. If the plug
is not marked E. N. and L inside, or it has only two
pins. consult your dealer.
