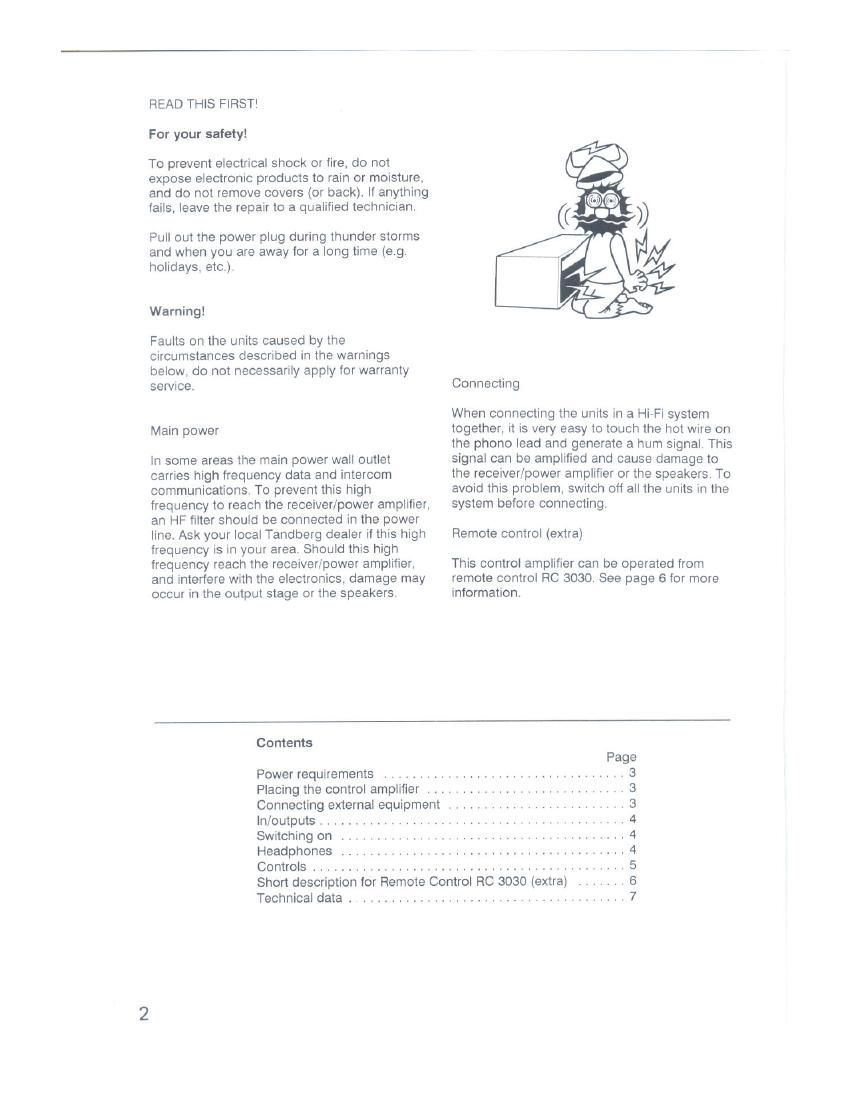

READ THIS FIRST!
For your safety!

To prevent electrical shock or fire, do not
expose electronic products to rain or moisture.
and do not remove covers (or back). If anything
fails, leave the repair to a qualified technician

Pull out the power plug during thunder storms
and when you are away for a long time (eg.
holidays. etc.)

Warning!

Faults on the units caused by the
circumstances described in the warnings
below, do not necessarily apply for warranty
service.

Main power

In some areas the main power wall outlet
carries high frequency data and intercom
communications; To prevent this high
frequency to reach the receiver/power amplifier,
an HF filter should be connected in the power
line, Ask your local Tandberg dealer if this high
frequency is in your area, Should this high
frequency reach the receiver/power amplifier.
and interfere with the electronics, damage may
occur in the output stage or the speakers.

Connecting

When connecting the units in a Hi-Fi system
together, it is very easy to touch the hot wire on
the phono lead and generate a hum signal. This
signal can be amplified and cause damage to
the receiver/power amplifier or the speakers. To
avoid this problem, switch off all the units in the
system before connecting,

Remote control (extra)
This control amplifier can be operated from

remote control RC 3030. See page 6 for more
information,

Contents

Power requirements ........
Placing the control amplifier , .

Page

.......................... 3
.......................... 3

Connecting external equipment . . . , . . 3
ln/outputs ........................................... 4
Switching on ....................................... 4
Headphones ......... . . . . 4
Controls ............................................ 5
Short description for Remote Control RC 3030 (extra) ....... 6
Technical data . ..................................... 7

Page 2

Power requirements

Make sure the power amplifier is marked at the
rear panel with the correct mains voltage for
your area.

US version 1 10 v1 15 V 110%,
50/60 Hz.

European version: 220 V-230 V 4.40%.
50/60 Hz.

Changing the mains voltage setting and fuse
(inside) should only be carried out by a
qualified service technician.

The power consumption is 18 Watt maximum.
Fuses:

220 V/230 V: 70 mA PTC.

HOV/115V: 140mAPTC.

Check for correct mains voltage at the rear
panel.

138 CAUTION l
'fDOuClS A/S. Oslo 3: 51:23 em
® © See operating
instructions !
nu

nsure corvect voltage setting l
assurer du voltage I
am.» Sla am dle nchllge Neuspannung .

0

220V»230V:10%
~ SOIGOHz

O

Placing the control amplifier

The best position for TCA 4038 is free on a
shelf with minimum 5 cm space to each sides it
the shelf is open on the back. the space to the
sides can be slightly reduced.

Never place the amplifier in a soft surface that
can impede ventilation or in front of or above a
radiator.

lf placing units on top of each other the power
amplifier must always be positioned at the top.

Connecting external equipment

lmportantl: All connections must be carried out
before the Power is switched on*.

Record player

» Connect the record player (MM) to the Phone
inputs. see figure.

The ground lead (static) from the record player
must be connected to the ground terminal.

'See page 2.

cn

run Tm:

©6-L«-@@

a
9 99:19 9
I
