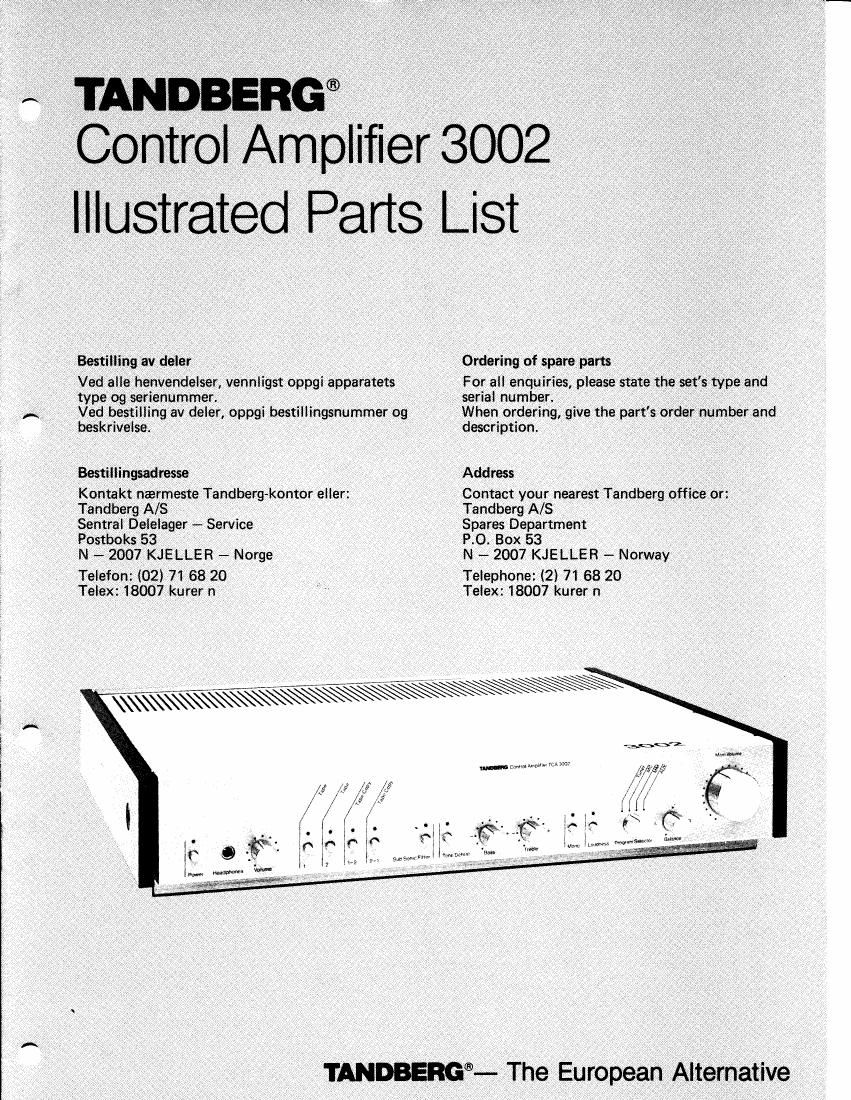

Tandberg TCA 3002 Service Manual 2
This is the 8 pages manual for Tandberg TCA 3002 Service Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tandberg TCA 3002 Service Manual 2 (Ocr-read)
Page 2
Cabinet assembly
. . . . .
Ind-x Ordering Nu, Bexkrivelse lmorknader) Description (notes) Reference
* Kabinett-enhet Cabinet assembly
1 377643 Skinne Plate, front
2 996913 Plate Plate, top-front
3 346854 Skrue Screw, M3.5 x 6.3 hex hd, with collar
4 996912 Skinne Panel, back
(see pages 6 and 7, index 1)
5 996914 Plate Plate, top
6 375969 Skinne Plate, Side, left
7 400502 Hylse Spacer, black plastic
8 401105 Skrue Screw, M4 x 16 Csk hd, black
9 406816 Skinne Plate, side, right
10 375258 Plate Plate, bottom
Extra side panels.
11 408921 Plate Panel, side
12 405875 Vinkel Bracket. side panel
13 409661 Skrue Screw, 3/8" No.4 Csk hd, black
14 400480 Avstandsstykke Spacer, black plastic
15 402786 Skrue Screw, M4 x 25 csk hd, black
Extra 19" rack mount.
16 408928 Bxakett Bracket, rack mount, left
17 403533 Bzakett Bracket, rack mount, right
18 405214 Héndtak Handle
19 404819 Skrue Screw, M4 x 12 csk hd, black
