Tandberg HIFI 19 Service Manual
This is the 39 pages manual for Tandberg HIFI 19 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tandberg HIFI 19 Service Manual (Ocr-read)

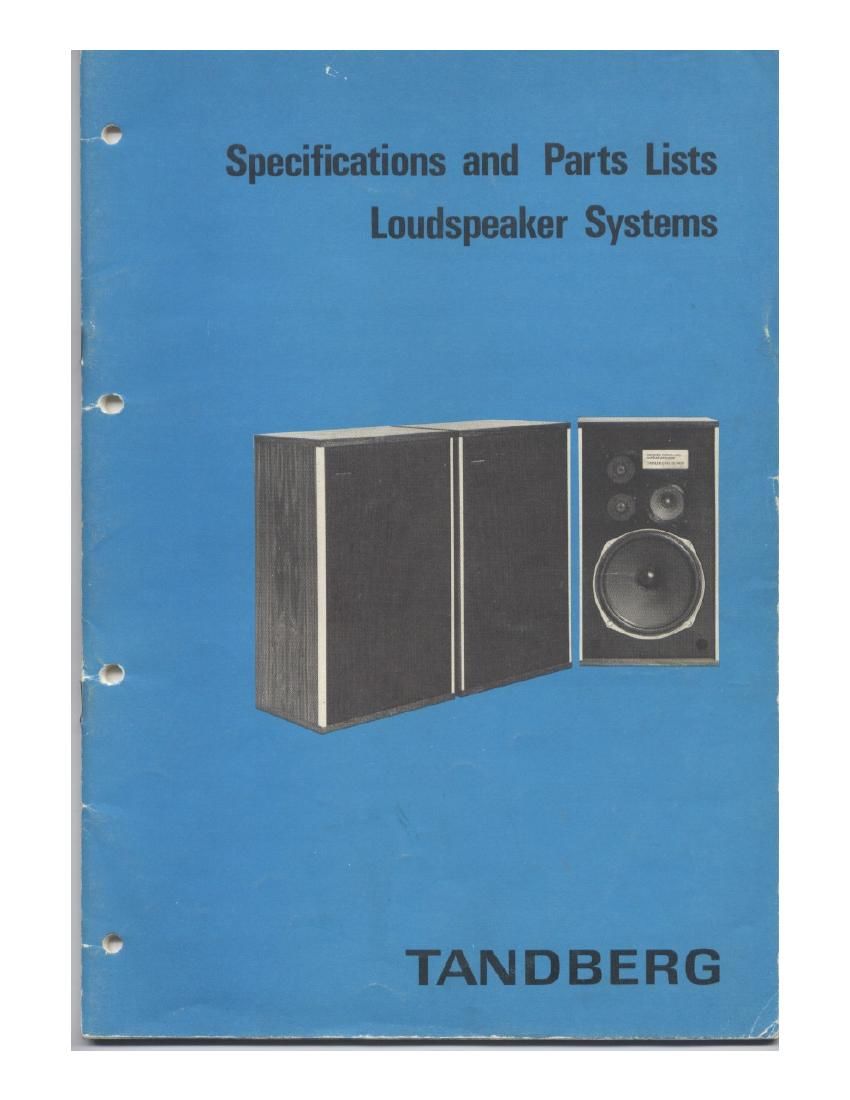

Page 1
Specifications and Parts Lists
Loudspeaker Systems
TANDBERG
Page 2
Specifications and Parts lists
Loudspeaker Systems
TANDBERG
Page 10
HI Fl 13
Technical specification:
Dimensions :B: 26 (65 cm), 11:8 1/2" (21 cm),D: 10 " (25cm)
Internal volume : 0.88 cu.ft. (25 1)
Weight : 19 lb (8.5 kg)
Impedance : 3.2 ohms
Crossover frequency : 3000 Hz
Resonance frequency : 85 Hz
Frequency range (DIN 455 70) :60 to 16000 Hz
Sensitivity (DIN 45500) : 1 Watt
Max. continuous power (DIN 45573) : 8 Watts
Complement:
Woofer :HT 112, 3.2 ohms, 6" x 10", part No. 205607
Tweeter :HT 106, 5 ohms, 2", part No. 211879
Notes:
Max. continuous power after 1967: 20 Watts (aluminium voice coil).
The tweeter with crossover filter is mounted coaxially with the woofer.
The whole unit has to be replaced when there is a fault.
