Tandberg 4000 X Schematic
This is the 4 pages manual for Tandberg 4000 X Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tandberg 4000 X Schematic (Ocr-read)
Page 1

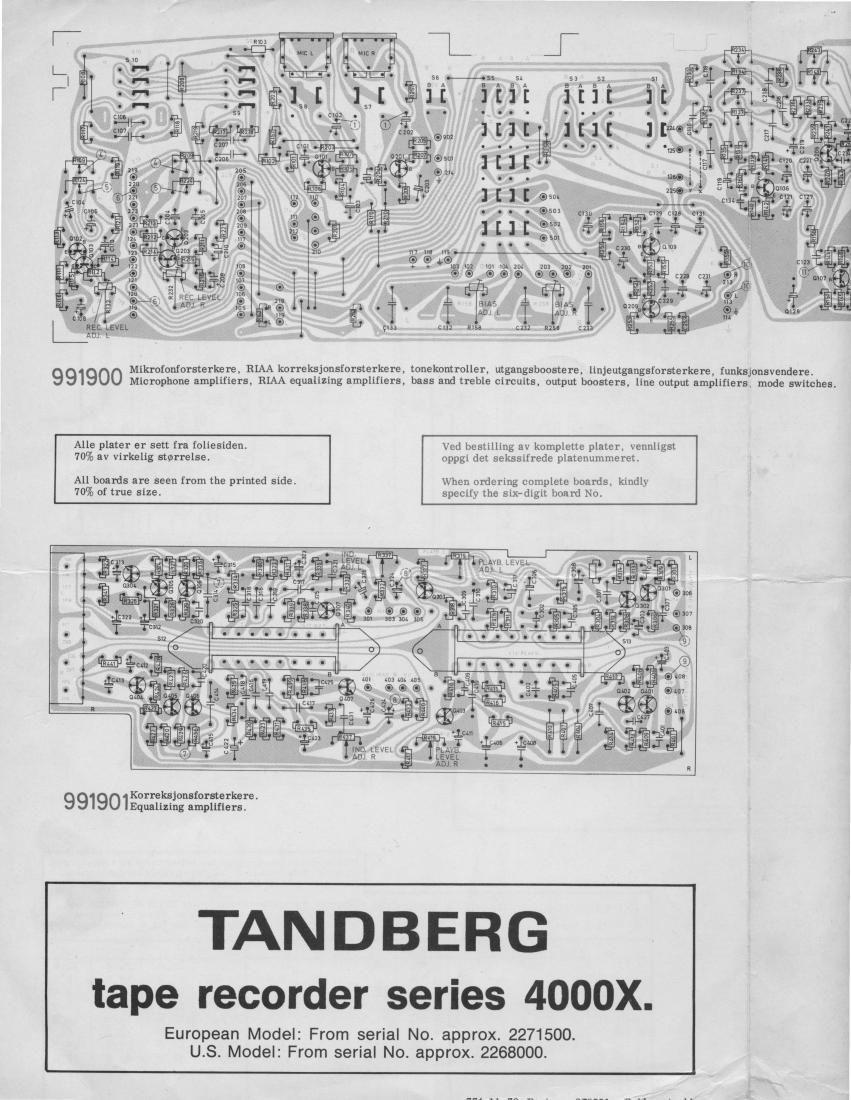

Mikrofonforsterkere, RIAA korreksjonsforsterkere, tonekontroller, utgnugsboostere, llnjeutgangsforstex'kere. funksJouavendere.
991900 Microphone amplifiers. RIAA equalizing amplifiers. bass and treble circuits, output boosters. line output amplifiers mode switches.
Alle platet er sett ira Ioliesidenl
70% 5v vlrkelig storrelse,
All boards are seen from the printed side
70% of true size.
Ved bestilllug av komplette plater. vennligst
oppgi det sekssifrede platenummeret,
When ordering complete boards, kindly
specify the slx~digit board Not
991901§3§§fi§i2"§$;3525§78'
TANDBERG
tape recorder series 4000X.
European Model: From serial No. approx. 2271500.
US. Model: From serial No. approx. 2268000.
