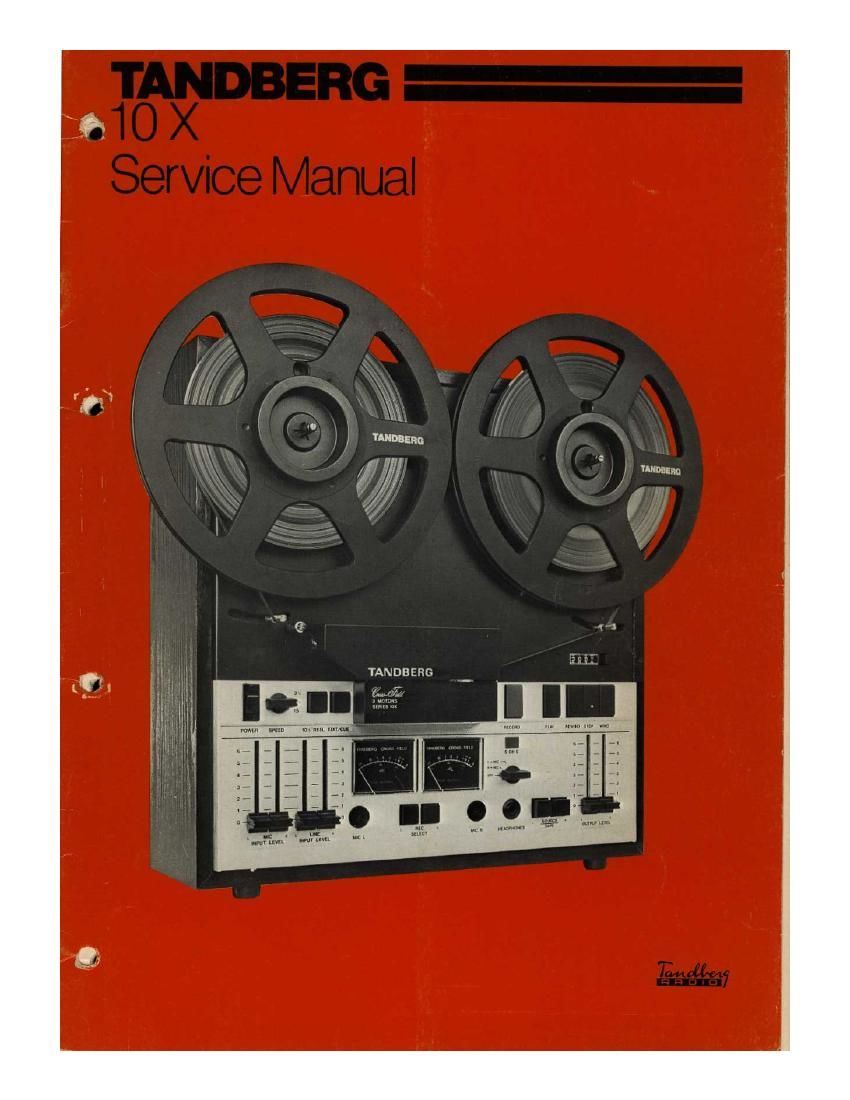

Tandberg 10 X Service Manual 3
This is the 18 pages manual for Tandberg 10 X Service Manual 3.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tandberg 10 X Service Manual 3 (Ocr-read)
Page 2
CONTENTS
page
Introduction ................................................ 2
Maintenance ....................................... 3
Changing the power supply transformer lappings . ..... 3
Changing from NAB correction to IEC correction. . . ..... 4
Elecirical adjustments ....................................... 5
Circuit diagrams and printed boards .............................. 6
INTRODUCTION
All paragraphs in this manual are valid for model
10X. For mechanical servicing, use the Service
Manual for model 10XD.
GENERAL
Only HL (High output/Low noise) tape should he
used for recording. Make sure that the heads and
tape path are clean.
To check the heads, simply remove the two head
covers. They should be pulled straight off.
When electrical adjustment an: to be made the
wooden cabinet must be removed. Lay the 10X
carfully down on the from. Remove the four
montig screws as shown in Figure 1.1. The cabinet
should be pulled stmight off.
