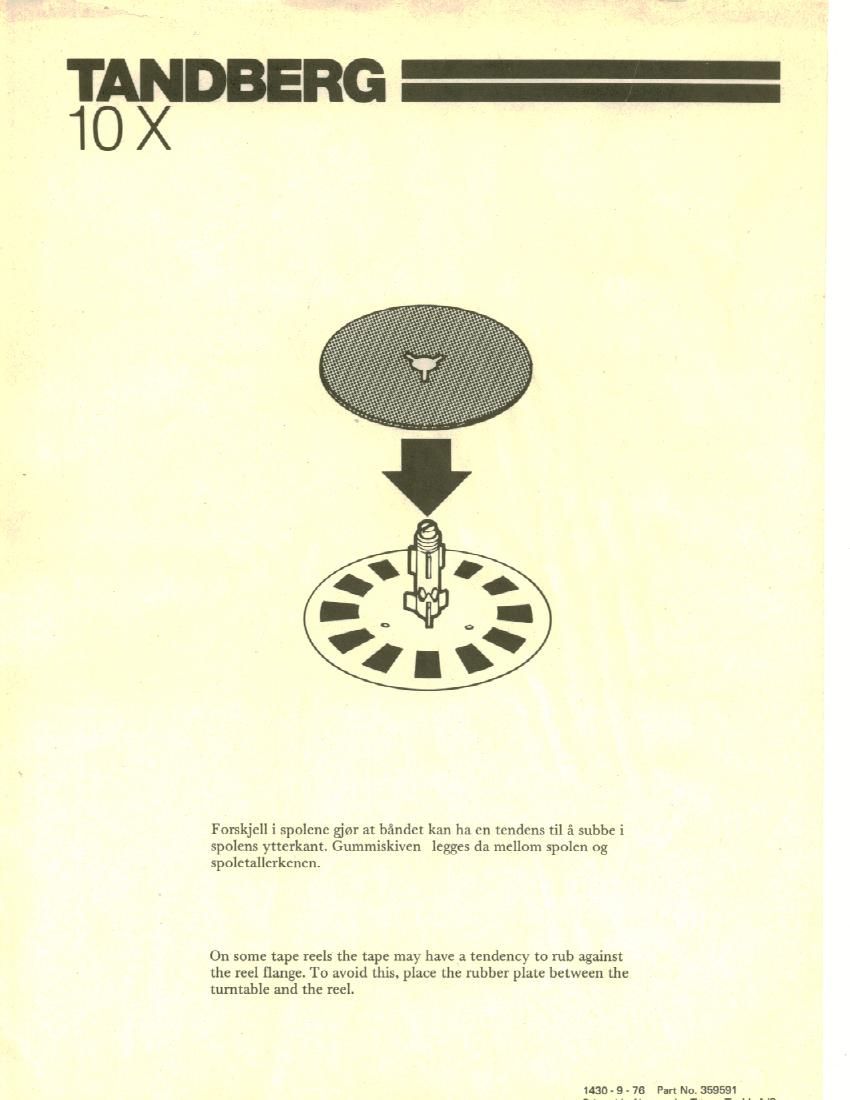

Page 1
TANDBERG
10X
Forskjell i spolene .or at bfindet kan ha en tendens til 5 subbe i
spolens ytterkant. Gummiskiven legges da mellom spolen og
spoletallerkencn.
On some tape reels the tape may have a tendency to rub against
the reel flange. To avoid this, place the rubber plate between the
turntable and the reel.
1430 - 9 - 76 Pan No. 359591
Page 2
'P.
MONTERING AV NAV
p5 10 1/2" spoler.
l. Legg bindspolen p5 et-flatt underlag. Anbring
navet oppi spolen slik at tappcne pi navet passer
ned i sporene p5 spolen. Trykk nave! helt ned i
bindspolen.
FITTING HUBS
into 10 1/2" reels.
1. Place the reel on a flat surface. Fit the hub into
the reel.
2. Trykk inn knappen merket 10 1/2 REEL p5
bindopptakeren.
3. Legg spolene pi bindopptakeren og legg inn
bindet som forklart i bruksanvisningen p5 side 6.
2. Dep'ress ihe 10 1/2" REEL button on the tape
deck.
3. Fit the reels onto the tape deck as described in
the operating instructions on page 6.
1430 ' 10 - 76 Part No. 359581
