Tandberg 10 X Owners Manual

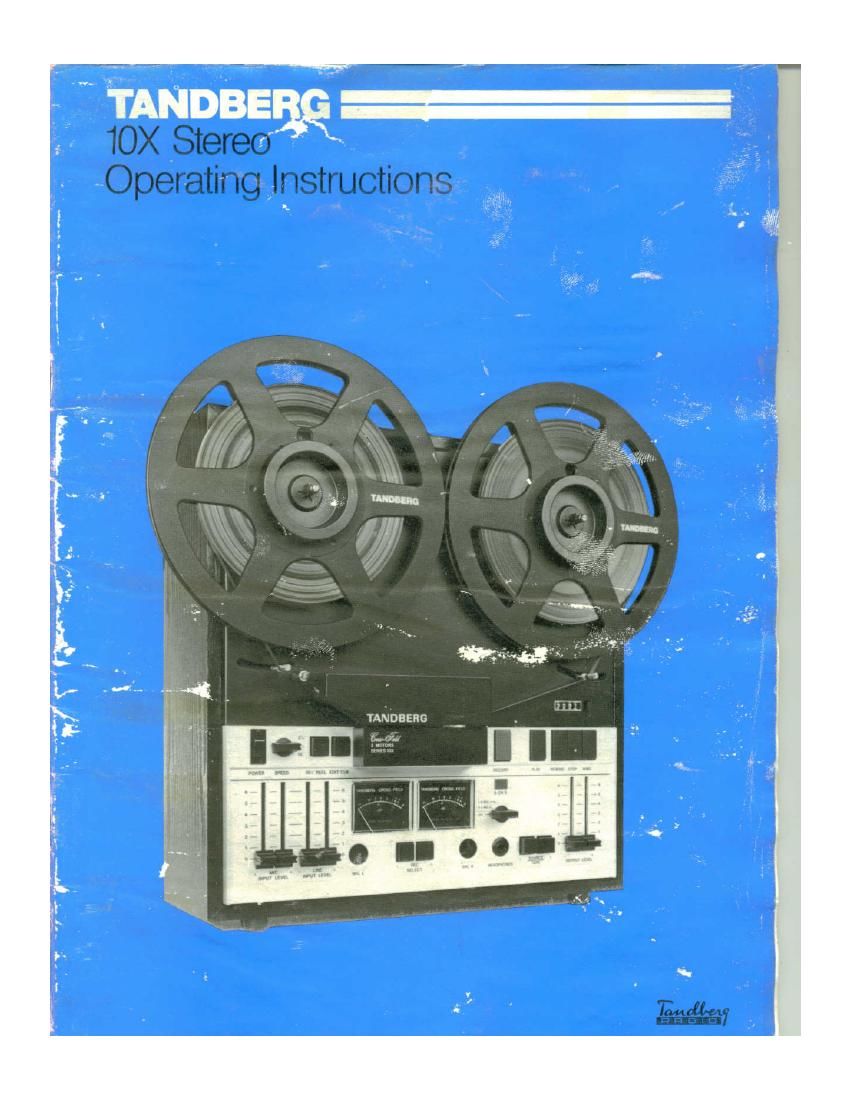

Page 1

10X Stereo
Operating Instructions

Mei

Page 2

Contents
P189 ; a
Preparation for use ......................... 4 Copying tape ............................. 17
Operating position ...... . 4 Sound-on-Sound .......................... 18
Power requirements ..... . 4 Language learning . . ....... 20
Switching on .......... . 4 Echo ___________________ 21
Tape ---------------- - - 4 Mixing ............................ 22
Choosing the tape speed ................... 5 Mixng two stereo programs . . . .22
Automatic end-stop ....................... 5 Mixing four mono programs . . . .22
Remote control .................. . 5 The 10X used a an amplifier . . . . ....... 23
Manual speed control (pitch control) . . 5 Microphone amplifier .................... 23
Fitting the spools .................. . 6 Mixer unit for microphones and music ....... 23
1[racks and channels .............. . 7 Mixed playback/amplifier mode ............ 23
What is a channel? What is a track? . . 7 [meeting a program on tape and editing ........ 24
4Atrack tape decks .............. . 7 Tape counter ........................... 24
2-track tape decks . . . ..... . 7 EDIT/CUE during WIND or REWIND ........ 24
Playback ............... _ . 8 EDIT/CUE for precision editing ............ 24
Making a good recording from any source ........ 10 Cutting and splicing ...................... 25
RCCDldlflg from a. receiver or a transn'iption unit . .12 Maintenance ................ . .26
Recording from microphones ................. 14 Cleaning . r . . .......... . .26
Basic procedtrc .......................... 14 Degaussing. ..... . .26
Placing microphones for a stereo recording ..... 15 Usdul data ....................... . .27
Microphone polar diagrams ................. 15 Operators trouble shooting guide ............. 28
Suggested microphone positions ............. 16
For your saQty

To prevent electrical shock or fire, do not expose
electronic products to rain or moisture and do not

repairs to a qualified technican.

Pull out the power plug and antenna plug during
thunder-storms and when you are away for a long
time (erg holidays, etc.).

Specially for the United Kingdom:

IMPORTANT! The wires in this mains lead are
coloured in accordance with the following code:
Green and yellow: Earth (E)

Blue: Neutral (N)

Brown: Live (L)

This mains lerd must be connected to a 3»pin
mains plug in accordance with the above code. If

only two pins. consult your dealer.

remove covers (or back). If anything fails leave the

the plug is not marked E, N, and L inside. or it has
