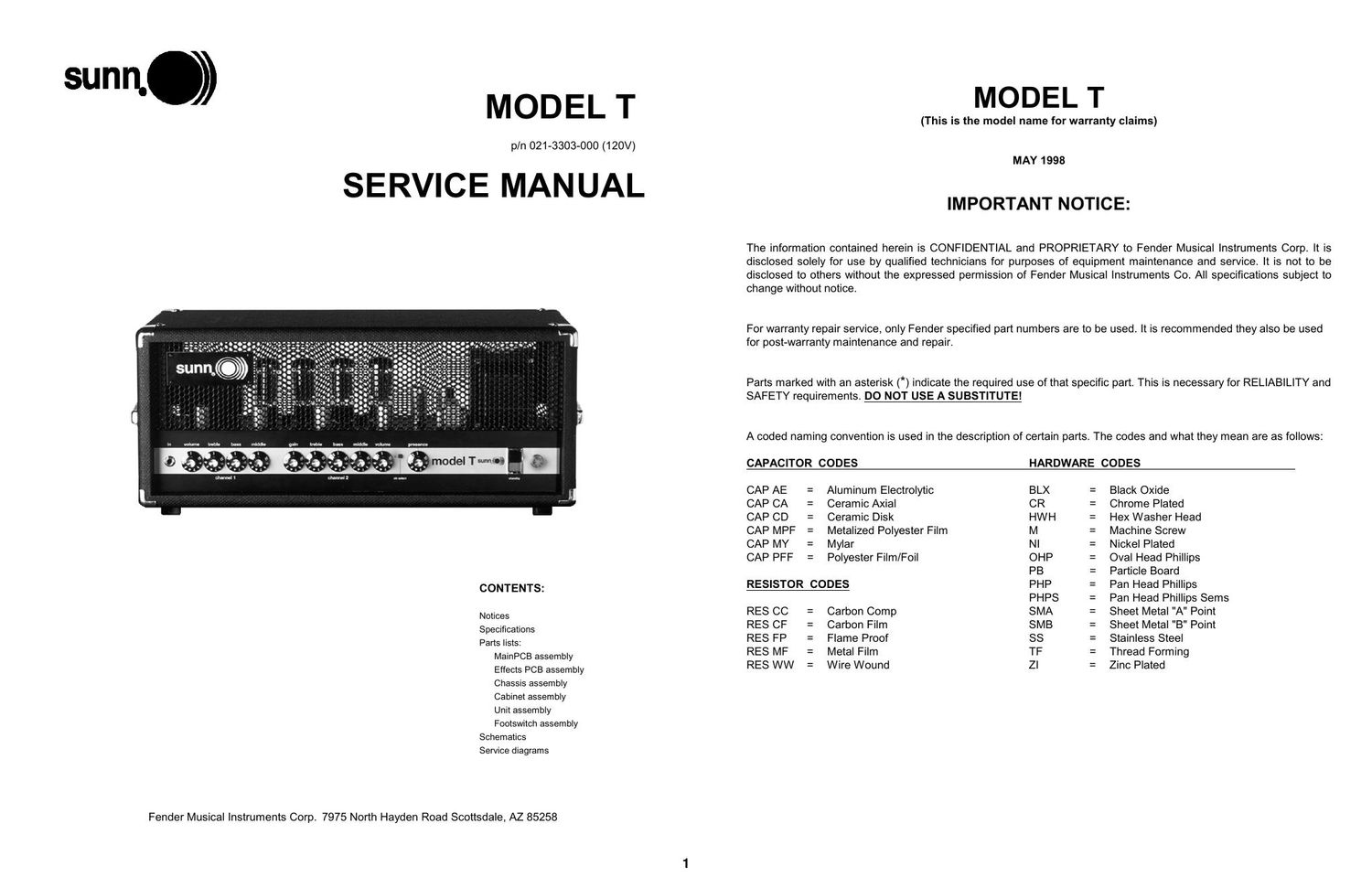

Page 1
SPECIFICATIONS Product Release No.:PR 344 (This is not a model number) Part Number:120V Version : 21-3303 240V Aust : 21-3333 230V UK : 21-3343 230V : 21-3363 100V : 21-3373 Input impedance:1 MΩ Tubes: Four 6L6GC Tubes p/n 053980 Two 12AX7A Tubes p/n 023572 Four 12AX7WA Tubes p/n 013341 Power output:120 Watts RMS Arena 29 Watts RMS Club 1 kHz sine wave into 8Ω @ 5% THD Presence @ "1" Power Requirements:120V: 120 VAC 60 Hz, 360W 240V: 240 VAC 50 Hz, 360W 230V: 230 VAC 50 Hz, 360W 100V: 100 VAC 50/60 Hz, 360W Speaker:Designed for use with Sunn 412 Loudspeaker Enclosures Fuse:T4A 250V fuse for 100V and 120V versions T2A 250V fuse for 230V and 240V versions Footswitch:2 Button Footswitch p/n 053584 (Controls Channel & Effects Loop Select) Dimensions:Height: 10.2" (25.9 cm) Width: 24.5" (62.2 cm) Depth: 11.6" (29.5 cm) Weight:45 lbs. (20.4 kg) Product specifications are subject to change without notice PARTS LIST NOTE: SHADED ITEMS ARE FOR REFERENCE ONLY MAIN PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 2 051660 BRACKET R/A PC MT #6-32 BK1 BK2 1 038690 CAP AE AX 1.0uF 100V C17 2 028953 CAP AE AX 100uF 350V +50% -10% C47 C48 2 038692 CAP AE AX 10uF 35V C35 C38 3 024819 CAP AE AX 22uF 500V C49 C52 C53 1 038693 CAP AE AX 47uF 16V C1 2 024820 CAP AE AX 47uF 350V C50 C51 2 041589 CAP AE AX 47uF 500V C54 C55 2 028494 CAP AE RDL 1000uF 35V 20% C60 C61 2 031040 CAP AE RDL 100uF 100V 20% C56 C57 2 028482 CAP AE RDL 220uF 50V 20% C58 C59 2 036954 CAP AE RDL 22uF 63V 20% C62 C63 3 051458 CAP CD 470pF 500V 10% C3 C8 C18 1 011435 CAP CD 680pF 1000V 10% C16 2 025951 CAP CD 750pF 1000V 10% C13 C15 1 025995 CAP CD 8200pF 1KV 20% C46 5 027272 CAP MPF .047uF 63V C21 C33 C37 C32 C36 1 027280 CAP MPF .15uF 63V C34 1 027286 CAP MPF .47uF 63V C31 1 024823 CAP MPF RDL .01mF 400V 10% C22 6 024833 CAP MPF RDL .022uF 400V 10% C9 C10 C12 C19 C20 C40 4 024845 CAP MPF RDL .047uF 400V 10% C2 C14 C24 C23 2 024846 CAP MPF RDL .047uF 630V 10% C44 C45 2 024853 CAP MPF RDL .1uF 250V 10% C42 C43 1 037666 CAP PPF .001uF 400V 10% C5 1 026202 CAP PPF .0022uF 600V C4 2 025962 CAP PPF .0047uF 400V C6 C41 2 033477 CAP RF 63V .68uF 10% C7 C11 2 041507 CONTROL SNAPIN 1M 10A R6 R15 2 047540 CONTROL SNAPIN 250K 15A R37 R18 3 037597 CONTROL SNAPIN 250K 30A R14 R36 R40 1 047031 CONTROL SNAPIN 25K 30C TAPER R110 2 041510 CONTROL SNAPIN 25K B R16 R38 2 026133 CONTROL TRIM 25K LIN R141 R1392
Page 2
PARTS LIST MAIN PRINTED CIRCUIT BOARD ASSEMBLY (CONT) QTY PART # DESCRIPTION REFERENCE DESIGNATION 17 026730 DIODE 1N4006/1N5062 800PRV 1A LL CR35 CR37 CR36 CR38 CR41 CR44 CR42 CR43 CR39 CR47 CR49 CR50 CR48 CR40 CR28 CR29 CR57 15 006260 DIODE 1N4448/1N914B SIGNAL LL CR1 CR9 CR13 CR12 CR25 CR15 CR18 CR16 CR17 CR19 CR21 CR22 CR24 CR11 CR23 2 029690 DIODE HV 3KV 200mA LL CR33 CR34 4 031017 DIODE ZEN 1N5223B 2.7V 5% LL CR56 CR55 CR54 CR53 2 031019 DIODE ZEN 1N5245B 15V .5W 5% LL CR2 CR3 2 028119 DIODE ZEN 1N5353B 16V 5W 5% LL CR51 CR52 2 041811 DIODE ZEN 1N5368B 47V 5W 5% LL CR45 CR46 7 041296 EYELET G.S. 4-4 P2A P3A P4A P5A P13A P14A P35 23 025802 FSTN TAB MALE .250x.032 PCB MT CP26 CP2 CP1 CP3 CP4 CP5 CP6 CP7 CP8 CP10 CP9 CP21 CP19 CP20 CP15 CP16 CP25 CP24 CP17 CP18 CP23 CP13 CP14 3 026000 FSTN TAB MALE PCB MT .187x.032 CP11 CP12 CP22 1 027416 HDR .1 CTR 8 CKT SQ PIN P15 2 031611 IC DUAL OPAMP PC4560 U1 U2 1 037117 JACK PCB MONO CLOSED CIRCUIT J1 3 026481 JACK TIP J11 J12 J10 2 033177 LED RED/GREEN 5x5mm BI-COLOR LD3 LD2 2 036178 SPACER LED .5x.1 BRN @ LD3 LD3 1 025926 LED RED PC MOUNT 3mm LD1 1 051431 PCB FAB MAIN MODEL T 2 036613 RELAY DPDT DIP 24 VOLT 8.3mA K2 K1 7 025116 RES CF 1/2W 5% 100K LL R10 R3 R21 R31 R34 R12 R112 1 025113 RES CF 1/2W 5% 10K LL R104 4 027871 RES CF 1/2W 5% 1K LL R154 R153 R148 R147 1 025117 RES CF 1/2W 5% 220K LL R127 2 026368 RES CF 1/2W 5% 100 ohm LL R133 R134 1 036957 RES CF 1/2W 5% 470K LL R26 1 031065 RES CF 1/2W 5% 91K LL R111 1 041277 RES CF 2W 5% 820 ohm R83 3 024969 RES CF 1/4W 5% 1.5K LL R4 R22 R46 PARTS LIST MAIN PRINTED CIRCUIT BOARD ASSEMBLY (CONT) QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 024937 RES CF 1/4W 5% 10 ohm LL R81 5 024997 RES CF 1/4W 5% 100K LL R90 R96 R97 R113 R114 15 024981 RES CF 1/4W 5% 10K LL R25 R9 R20 R30 R44 R84 R85 R82 R98 R91 R92 R93 R33 R152 R146 1 028955 RES CF 1/4W 5% 130K LL R138 1 024999 RES CF 1/4W 5% 150K LL R107 2 024986 RES CF 1/4W 5% 18K LL R27 R137 1 024965 RES CF 1/4W 5% 1K LL R100 11 025069 RES CF 1/4W 5% 1M LL R1 R43 R86 R87 R101 R99 R5 R19 R41 R103 R106 4 025059 RES CF 1/4W 5% 220K LL R17 R24 R29 R39 4 024987 RES CF 1/4W 5% 22K LL R42 R157 R151 R145 1 024959 RES CF 1/4W 5% 330 ohm LL R89 1 024989 RES CF 1/4W 5% 33K LL R35 1 024961 RES CF 1/4W 5% 470 ohm LL R105 1 024977 RES CF 1/4W 5% 4.7K LL R109 5 025065 RES CF 1/4W 5% 470K LL R7 R8 R23 R28 R95 3 024993 RES CF 1/4W 5% 47K LL R45 R47 R108 1 028948 RES CF 1/4W 5% 6.2K LL R94 1 024963 RES CF 1/4W 5% 680 ohm LL R102 2 024995 RES CF 1/4W 5% 68K LL R13 R2 2 024964 RES CF 1/4W 5% 820 ohm LL R11 R32 2 029613 RES CF 1/4W 5% 91K LL R140 R142 8 027354 RES FILM 1W 5% 220K LL R125 R126 R156 R155 R150 R149 R144 R143 1 029870 RES FILM 2W 5% 1.5K LL R128 1 036921 RES FILM 2W 5% 1K R129 2 033095 RES MOX FP 1W 5% 1 ohm LL R117 R118 2 036470 RES MOX FP 1W 5% 10K LL R131 R132 1 041740 RES MOX FP 2W 5% 4.7K R130 4 041256 RES W W BT 5W 10% 470 ohm R119 R120 R123 R124 2 029047 RES W W BT 7W 10% 270 ohm R135 R136 4 051442 SOCKET, TUBE 9PIN PCB MOUNT V2 V1 V3 V4 1 028091 SW ITCH PUSH SLFLK SHORT STROKE S1 1 028104 BUTTON PUSH BLACK @ S1 1 049976 SW ITCH TOGGLE DPST DC W /NUTS S6 1 028503 THERMISTOR 10 ohm 5A C60-11 TH13
