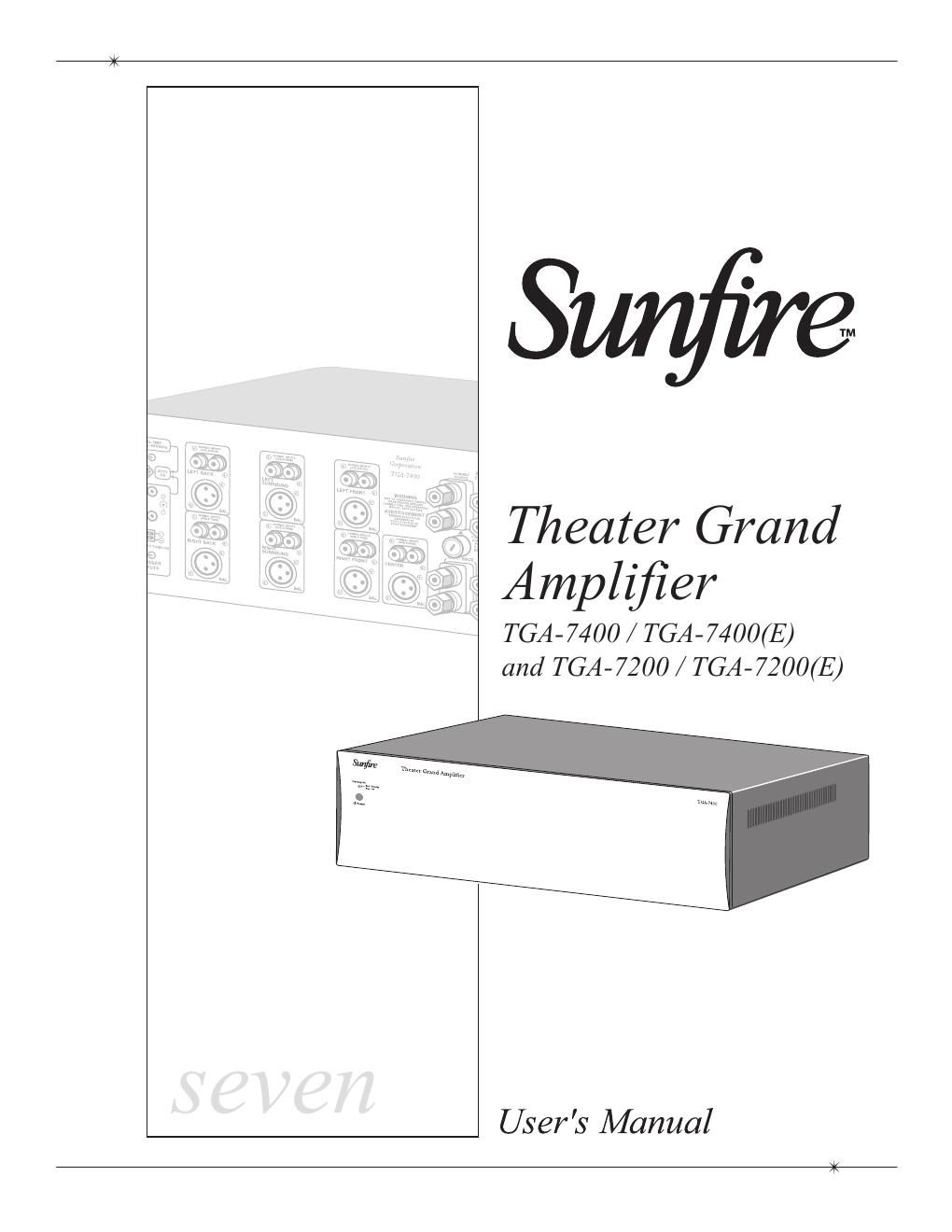

Sunfire tga 7200 7400 owners manual
This is the 20 pages manual for sunfire tga 7200 7400 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sunfire tga 7200 7400 owners manual (Ocr-read)
Page 1
User's Manual 2 Important Safety In struc tions 10. Ventilation - The apparatus should be situated so that its location or position does not interfere with its proper ven ti la tion. For example, the apparatus should not be situated on a bed, sofa, rug, or similar surface that may block any ven ti la tion open ings; or placed in a built-in installation such as a bookcase, cabinet, or closed equip- ment rack that may impede the fl ow of air through ven ti la tion openings. 11. Power Sources - The apparatus should be con nect ed to a power sup- ply only of the type de scribed in these op er a tion in struc tions or as marked on the apparatus. 12. Power Cord Protection - Pow- er-supply cords should be routed so that they are not likely to be walked upon or pinched by items placed upon or against them, paying particular at- ten tion to cords at plugs, con ve nience re cep tacles, and the point where they exit the apparatus. 13. Non-use Pe ri ods-The pow er cord of the apparatus should be un- plugged from the outlet when unused for a long pe ri od of time. 14. Ob ject and Liq uid En try - Care should be taken so that objects do not fall into and liquids are not spilled into the inside of the apparatus. 15. Servicing - The user should not attempt to service the apparatus beyond those means de scribed in this operating manual. All other servicing should be referred to qualifi ed service personnel. SAFETY 1. Read In struc tions 2. Keep these Instructions 3. Heed all Warnings. 4. Follow all Instructions 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near any heat sourc- es such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 8. Unplug this apparatus during light- ning storms or when unused for long periods of time. 9. Refer all servicing to qualifi ed ser- vice personnel. Servicing is required when the apparatus has been dam- aged in any way, such as a power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Page 2
User's Manual 3 16. To prevent electric shock, do not use this polarized plug with an ex ten - sion cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade ex po sure. Pour préevenir les chocs électriques ne pas utiliser cette fi che polariseé avec un prolongateur, un prise de courant ou une autre sortie de cou- rant, sauf si les lames peuvent être insérées à fond sans laisser aucune parIIIe à découvert.17. Grounding or Po lari za tion - Pre cau tions should be taken so that the grounding or polarization means of the Com po nent is not defeated. This apparatus does not exceed the Class A/Class B (which ev er is ap- pli ca ble) limits for radio noise emis sions from digital apparatus as set out in the radio interference regulations of the Ca- nadian Department of Com mu ni ca tions. WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS AP PLI ANCE TO RAIN OR MOIS TURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRO- DUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. ATTENTION - Le présent appar- eil numérique n'émet pas de bruits radioélectriques dépassant las limites applicables aux appareils numériques de class A/de class B (selon le cas) prescrites dans le règlement sur le brouillage radioélectrique édicté par les ministere des com mu ni ca tions du Canada. SAFETY Safety Instructions................................... 2-3 Chapter 1: Introduction...............................4 Theater Grand Editions ..............................5 Unpacking and Installation .........................6 Front Panel Features ..................................7 Rear Panel Features ..................................8 Chapter 2: System Confi gurations...........10 Appendix: Series and Parallel ...................................15 Troubleshooting Guide .............................16 Specifi cations ...........................................18 Limited Warranty ......................................19 Service Assistance ...................................19 Please read the Safety Instructions carefully before connecting and using your Sunfi re Amplifi er. Chapter 1 is a general introduction to the features, details and installa- tion of your amplifi er. Chapter 2 shows some typical con- nections to a preamplifi er and speakers. The Appendix shows some addition- al information, including a trouble- shooting guide, the Warranty, and service assistance details. To fi nd out more about this and other Sunfi re products, please visit our website: www.sunfi re.com Contents
