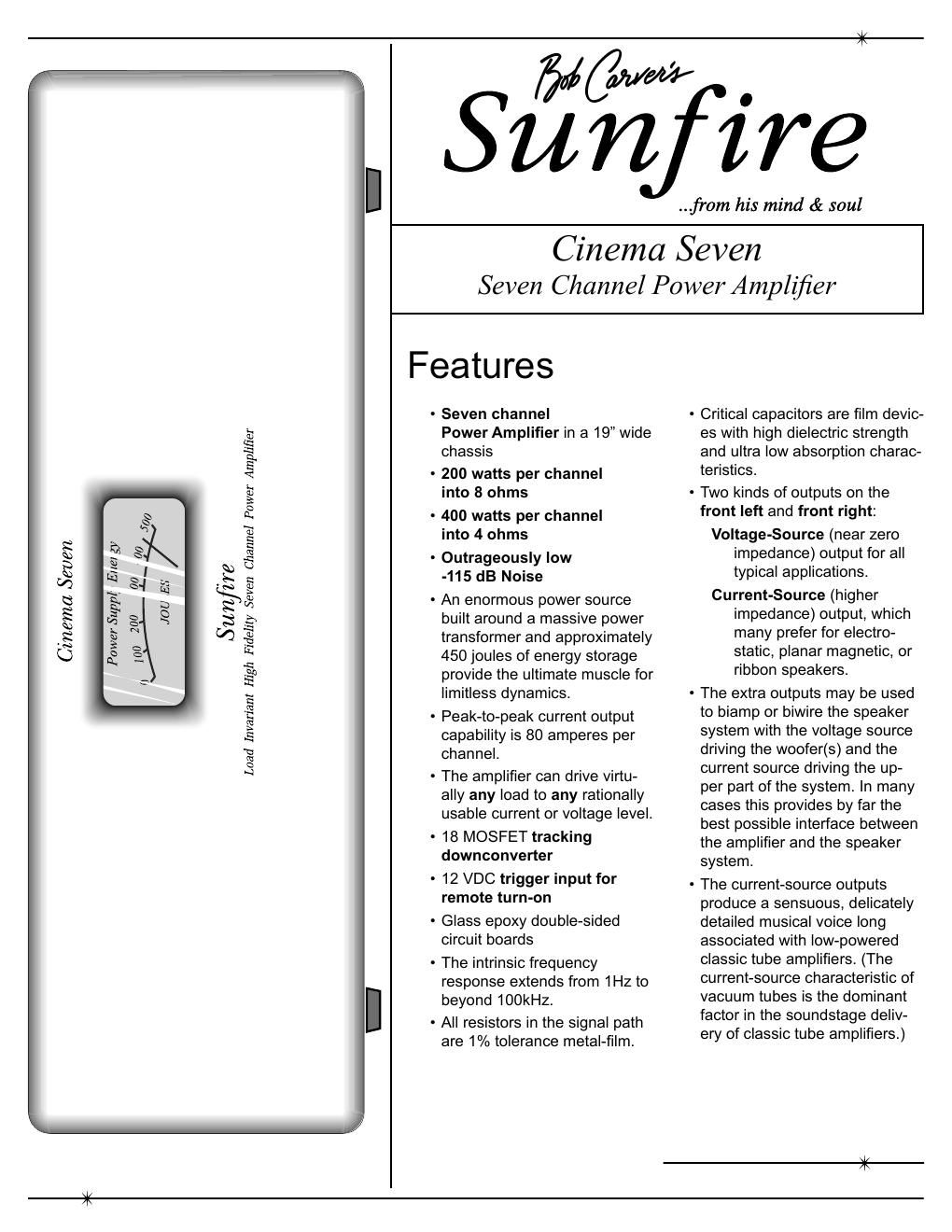

Sunfire cinema seven brochure

Page 1

SunÞ re Corporation P.O. Box 1589, Snohomish,WA 98291 Tel (425) 335-4748 Fax (425) 335-4746 www.sunÞ re.com Power output 200 watts con tin u ous, per chan nel, into eight ohms, from 20 Hz to 20 kHz with no more than 0.5% T.H.D. Power at clipping, min 400 watts per chan nel into four ohms. 800 watts per chan nel into two ohms (time limited basis). Hum and Noise -115 dB, A-Weighted Maximum output current 80 amps peak to peak per chan- nel. Maximum output voltage 42.4 Vrms Output impedance, front left and right channels Voltage source: Approximately zero ohms Current source: Approximately one ohm RCA Input impedance: 24 kΩ Input sensitivity for rated output Unbalanced: 1.34 Vrms Bal anced: 0.67 Vrms XLR Input impedance: 24 kΩ, each leg balanced to ground. Female XLR Pin 1 is ground Pin 2 is positive (hot) Pin 3 is negative (cold) 12 VDC Trigger Inputs Input voltage range 5 -18 VDC Impedance: approx 600 Ω (20 mA @ 12 V) Power Consumption 45 W At idle 280 W Typical (1/8th power) 1800 W Ab so lute Max (Fuse Limit) Dimensions 19.0 inches wide 6.5 inches high (including feet) 16.7 inches deep (to tips of con- nectors) Weight 38 lbs Finish Brushed aluminum with black anodizing SpeciÞ cations © 2003 SunÞ re Corporation. All Rights Reserved. SunÞ re Corporation re serves the right to improve its products at any time. Therefore, speciÞ cations are subject to change without notice. 914-030-00 Rev A
