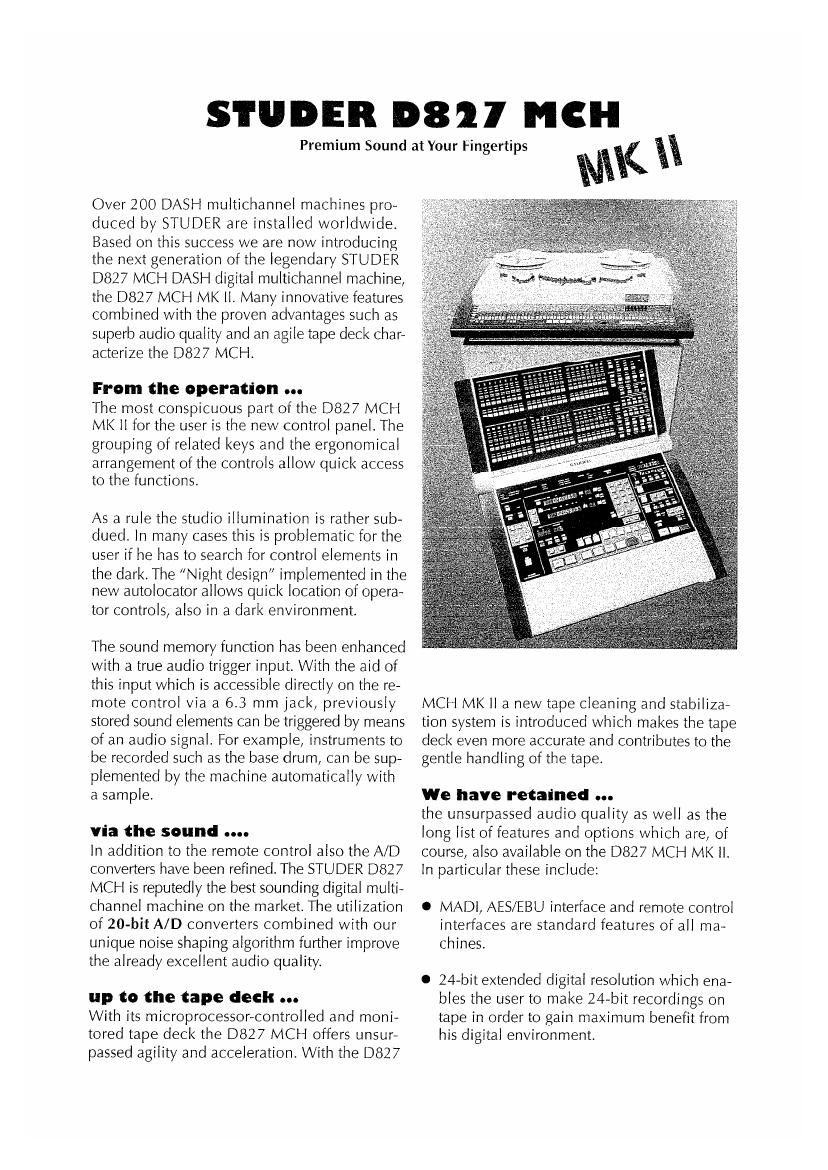

STUDER D811 '1
MC

Premium Sound at Your Fingertips

Over 200 DASH multichannel machines pro-
duced by STUDER are installed worldwide
Based on this success we are now introducing
the next generation of the legendary STUDER
D827 MCH DASH digital multichannel machine,
the D827 MCH MK ll. Many innovative features
combined with the proven advantages such as
superb audio quality and an agile tape deck char-
acterize the D827 MCH.

From the operation ...

The most conspicuous part of the D827 MCH
MK ll for the user is the new control panel. The
grouping of related keys and the ergonomical
arrangement of the controls allow quick access
to the functions.

As a rule the studio illumination is rather sub-
dued. in many cases this is problematic for the
user if he has to search for control elements in
the dark. The Night design implemented in the
new autolocator allows quick location of opera-
tor controls, also in a dark environment.

The sound memory function has been enhanced
with a true audio trigger input With the aid of
this input which is accessible directly on the re-
mote control via a 6.3 mm jack/ previously
stored sound elements can be triggered by means
of an audio signal. For example, instruments to
be recorded such as the base drum, can be sup-
plemented by the machine automatically with
a sample.

via the sound oooo

in addition to the remote control also the A/D
converters have been refined The STUDER D827
MCH is reputedly the best sounding digital multi.
channel machine on the market. The utilization
of 20-bit A/D converters combined with our

unique noise shaping algorithm further improve
the already excellent audio quality.

up to the tape deck ...

With its microprocessor-controlled and moni-
tored tape deck the D827 MCH offers unsur»
passed agility and acceleration. With the D827

MCH MK ii a new tape cleaning and stabiliza-

tion system is introduced which makes the tape
deck even more accurate and contributes to the

gentle handling of the tape.

We have retained ...

the unsurpassed audio quality as well as the
long list of features and options which are, of
course, also available on the D827 MCH MK II.
in particular these include:

0 MAD], AES/EBU interface and remote control
interfaces are standard features of all ma-
chines.

. 24-bit extended digital resolution which ena-
bles the user to make 24-bit recordings on
tape in order to gain maximum benefit from
his digital environment.

Page 2

0827 Autolocator MK II

Illuminated transport keys

0 Digital editing, track slipping and track bounc-
ing are accessible through the sound memory.
With its large capacity of 180 seconds large
portions ofa production can be stored in
memory, edited, and reinserted in a different
location.

0 The modular system can be easily tailored
to different user requirements. For example,
a 24»channel machine can be upgraded to
48 tracks or options can be retrofitted later
in the field.

The combination of existing and new features
make the D827 MCH MK I] unbeatable with
respect to reliability, audio quality and price/
performance ratio.

STUDEFI

PROFESSIONAL AUDIO EQUIPMENT

H A Harman International Company

Int/ext. trigger for Sounrlmemnry

Ordering Information:

The D827 can be ordered as a MK 1 or MK ll
version. Existing MK l machines can be up~
graded as Follows:

20.050.863.25 Upgrade Kit Autolocator

MK l to MK ll

Upgrade Kit All") Fonverter
18 bit to 20 bit

(1 Kit per 8 channels)

DASH Tape Cleaner Kit

20.050863];

20.050.863.01

Subject to change.

STUDER is a registered trade mark Di STUDER professioanl Audio AG
Printed in Switzerland l0.26.3550 tEd. 0997)

Copyright by STUDER Professional Audio AG

STDDER Professional AuciioAG, Altnardstrasse 30, CH»8105 Regensdanlurich Switzerland,
Telephone +41 r 870 75 1], Teleiax +41 1 B40 47 37
