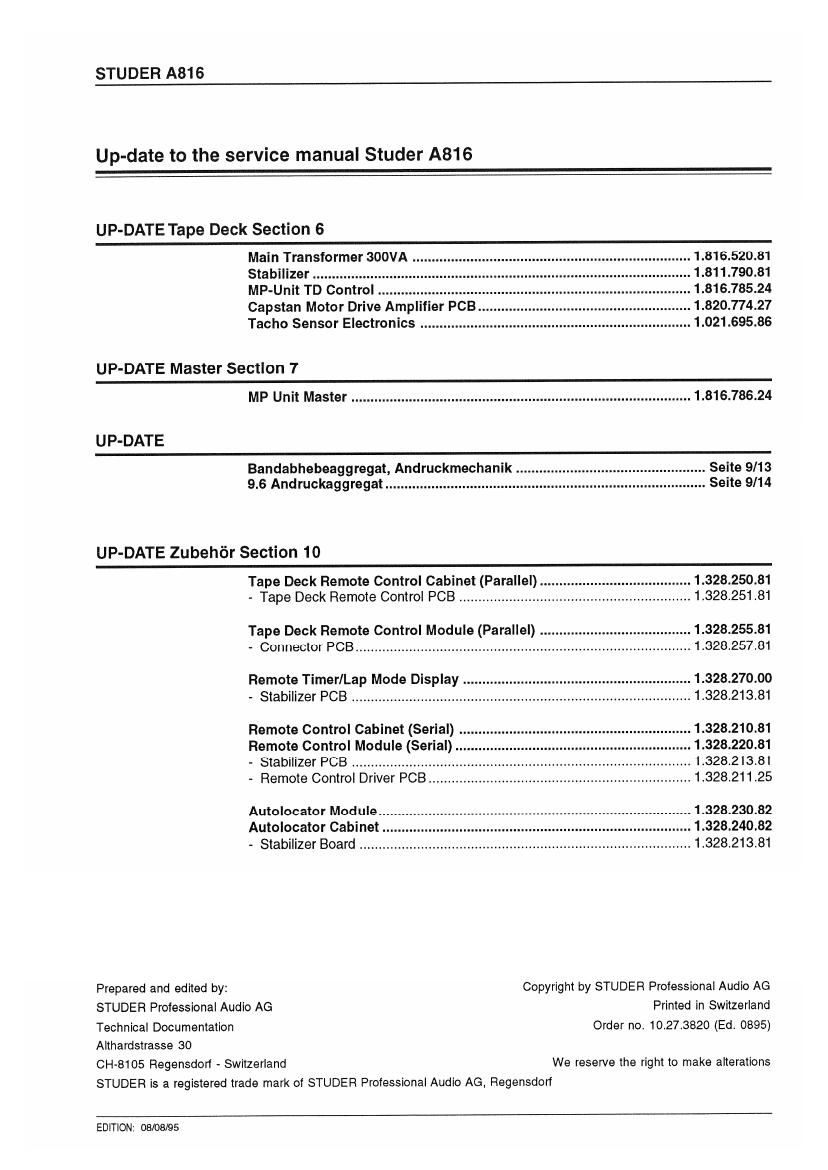

STUDER A816

Up-date to the service manual Studer A816

UP-DATE Tape Deck Section 6

Main Transformer 300VA 1.816.520.81

Stabilizer .................... .1.811.790.81

MP-Unit TD Control 1.816.785.24

Capstan Motor Drive Amplifier PCB... 1.820.774.27

Tacho Sensor Electronics .................. 1.021.695.86
UP-DATE Master Section 7

MP Unit Master ........................................................................................ 1.816.786.24

UP-DATE

Bandabhebeaggregat, Andruckmechanik
9.6 Andruckaggregat ....................................

UP-DATE Zubehor Section 10

1.328.250.81
1.328.251.81

Tape Deck Remote Control Cabinet (Parallel)
- Tape Deck Remote Control PCB ........................

. 1.328.255.81
1.328.257.81

Tape Deck Remote Control Module (Parallel)
- Connector PCB ...................................................

1.328.270.00
1.328.213.81

Remote Timer/Lap Mode Display
- Stabilizer PCB ................................

Remote Control Cabinet (Serial) . 1.328.210.81
Remote Control Module (Serial) .. . 1.328.220.81
- Stabilizer PCB ...................... .1.328.213.81

- Remote Control Driver PCB.. .. 1.328.211.25
Autolocator Module... 1.328.230.82
Autolocator Cabinet .. 1.328.240.82
- Stabilizer Board ...................................................................................... 1.328.213.81
Prepared and edited by: Copyright by STUDER Professional Audio AG
STUDER Professional Audio AG Printed in Switzerland
Technical Documentation Order no. 10.27.3820 (Ed, 0895)
Althardstrasse 30
CH-8105 Flegensdofl - Switzerland We reserve the right to make alterations

STUDER is a registered trade mark of STUDER Professional Audio AG, Regensdon

EDiTION: 08/08/95
