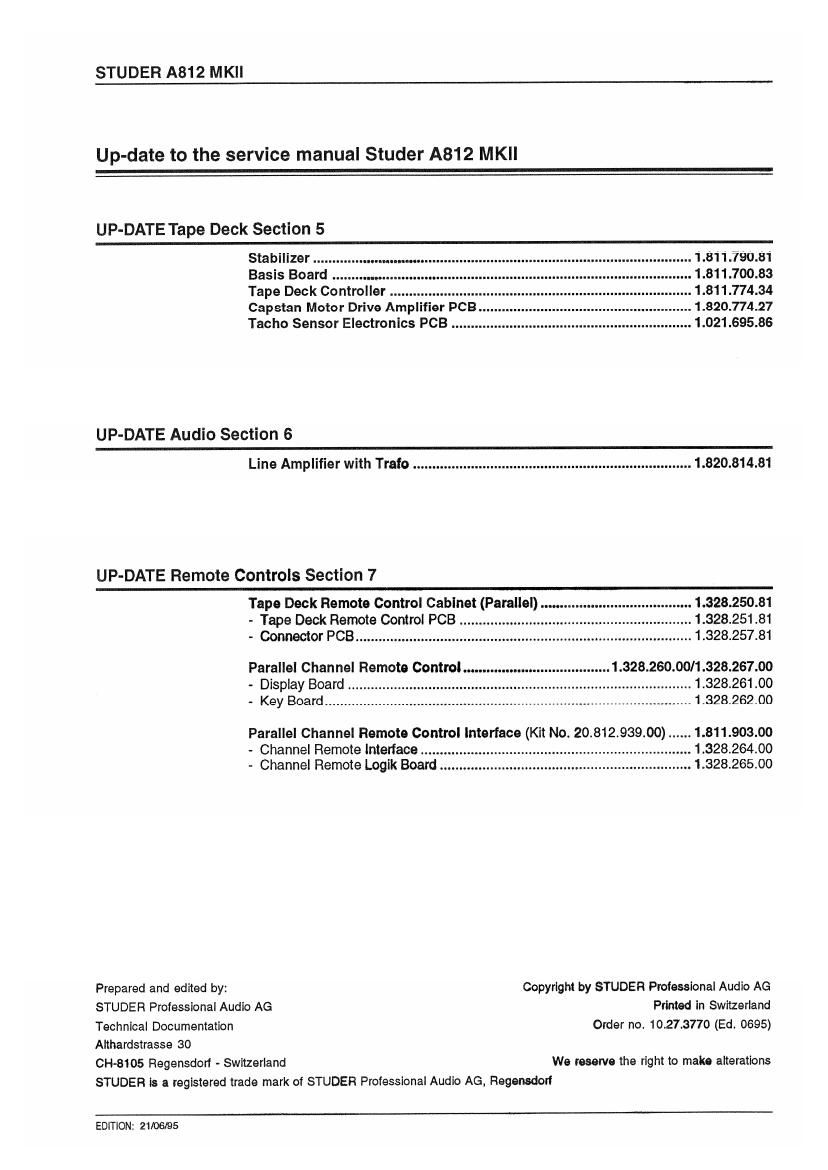

Page 1
STUDER A812 MKll
Up-date to the service manual Studer A812 MKll
UP-DATE Tape Deck Section 5
Stabilizer... .. ..
Basis Board ..... ..
Tape Deck Controller
. 1.811.700.83
. 1.811.774.34
Capstan Motor Drive Amplifier PCB. 1.820.774.27
Tacho Sensor Electronics PCB ....................................................... 1.021 .695.86
UP-DATE Audio Section 6
Line Amplifier with Trafo ..................... 1.820.814.81
UP-DATE Remote Controls Section 7
Tape Deck Remote Control Cabinet (Parallel) 1.328.250.81
- Tape Deck Remote Control PCB
- Connector PCB .............................
. 1.328.251.81
1.328.257.81
1 .328.260.00l1 328267.00
........................ 1.328.261.00
...................................................... 1.328.262.00
Parallel Channel Remote Contro1...
- Display Board
. Key Board ..........
Parallel Channel Remote Control Interface (Kit No. 20.812.939.00) 1.811.903.00
- Channel Remote interface .. 1.328.264.00
- Channel Remote Logik Boar . ................................................... 1.328.265.00
Prepared and edited by: Copyright by STUDER Protessional Audio AG
STUDER Professional Audio AG Printed in Switzerland
Technical Documentation Order no. 10.27.3770 (Ed. 0695)
Althardstrasse 30
CH8105 Regensdort - Switzerland We reserve the right to make alterations
STUDER is a registered trade mark 01 STUDER Professional Audio AG, Regensdori
EDITION: 21/06/95
