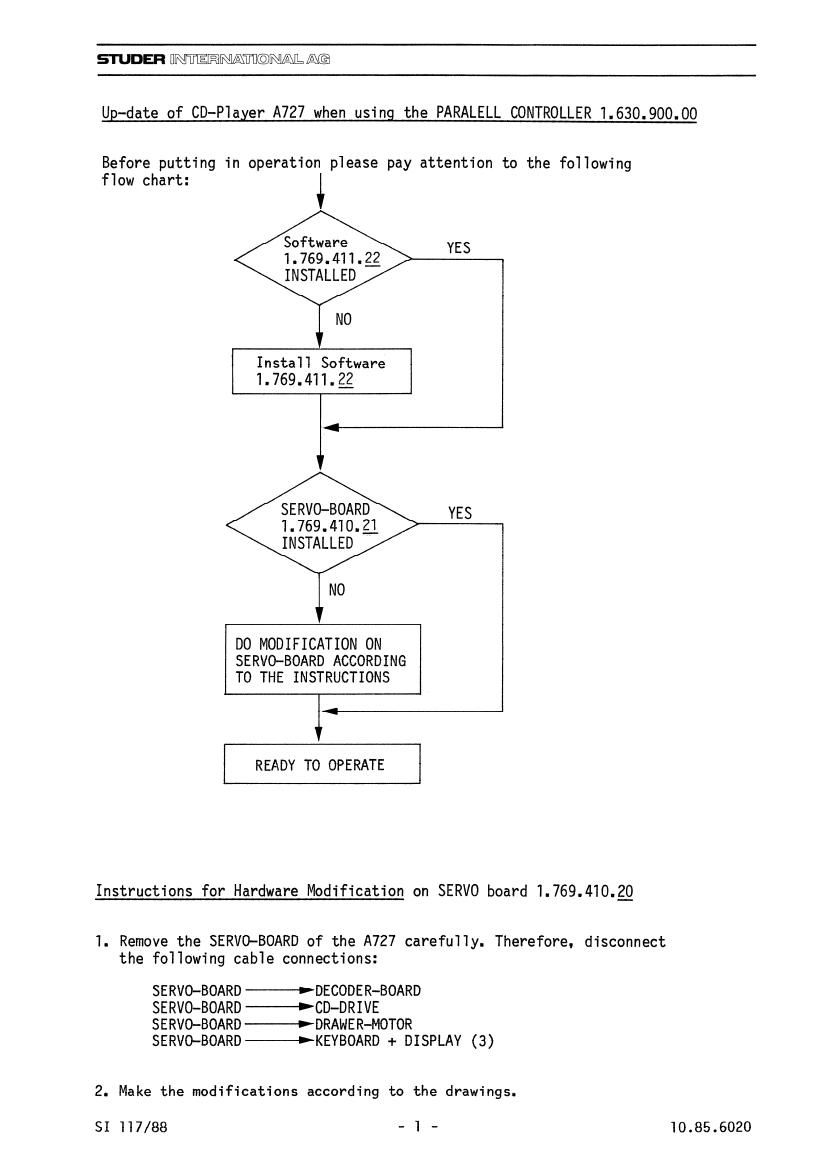

STUDER UN EEKNAUHEOZNALW
Up-date of CD-PTayer A727 when using the PARALELL CONTROLLER 1.630.900.00
Before putting in operation p1ease pay attention to the foHowing
flow chart:
Software
1 . 769. 411 . 23
INSTALLED
Insta11 Software
1.769.411.32
SERVO-BOARD
1 . 769. 410 . fl
INSTALLED
DO MODIFICATION ON
SERVO-BOARD ACCORDING
TO THE INSTRUCTIONS
l.-___
READY TO OPERATE
Instructions for Hardware Modification on SERVO board 1.769.410.29
1. Remove the SERVO-BOARD of the A727 carefu11y. Therefore. disconnect
the fo'Howing cabTe connections:
SERVO-BOARD ---->DECODER-BOARD
SERVO-BOARD -*CD-DRIVE
SERVO-BOARD -->DRAWER-MOTOR
YES
YES
SERVO-BOARD ->KEYBOARD + DISPLAY (3)
2. Make the modifications according to the drawings.
SI 117/88
10.85.6020
