Studer 980 Service Manual 1
This is the 187 pages manual for Studer 980 Service Manual 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Studer 980 Service Manual 1 (Ocr-read)

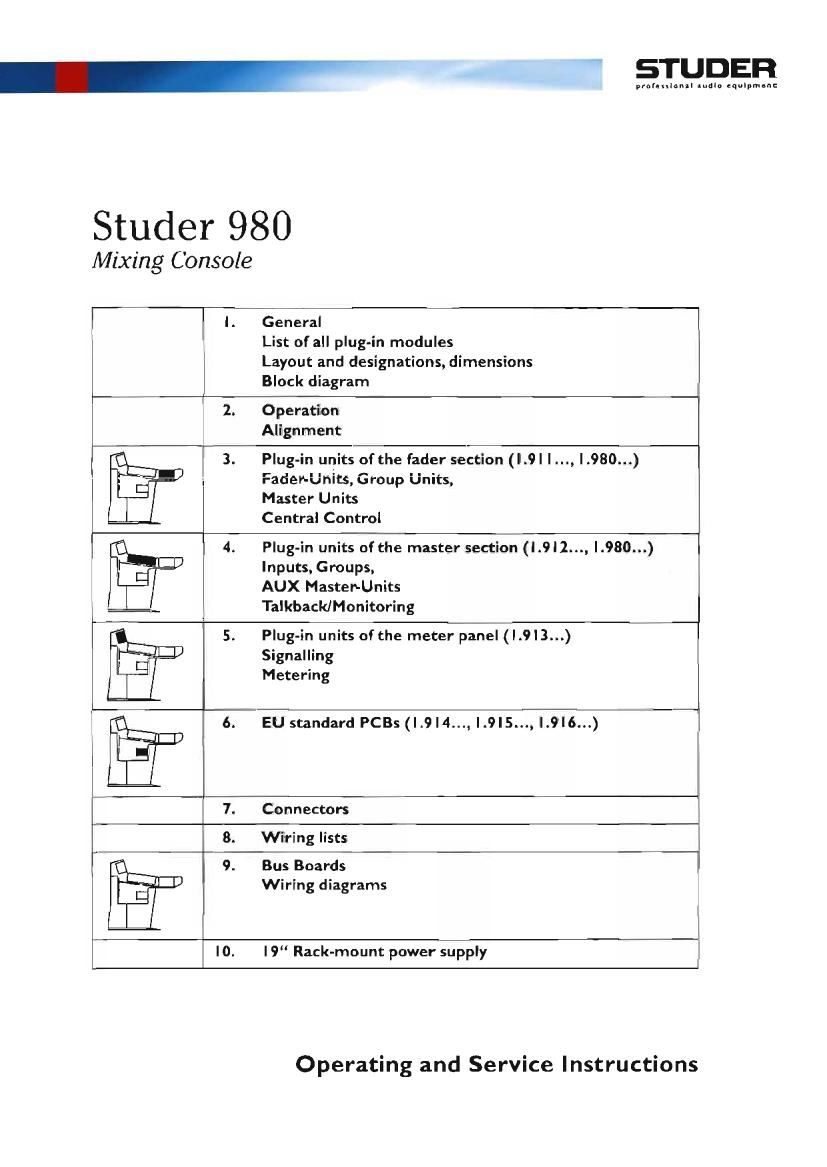

Page 1
Studer 980
Mixing Console
* STUDER
pron mom: auolo lqulpmsn:
General
List of all plug-in modules
Layout and designations, dimensions
Block diagram
f 2. Operation
Alignment
3. Plug-in units ofthe fader section (l.9| |..., L980...)
Fadew'u'hits, Group Units.
Master Units
Central Control
4. Plug-in units of the master section (l.9l2..., L980...)
Inputs, Groups.
AUX Master-Units
=5... Talkback/Monitoring
5. Plug-in units of the meter panel (L913...)
Signalling
_,- Metering
@i 6.7 EU standard PCBs (|.9|4..., |.9|5..., |.9l6...)
7. Connectors
8. Wiring lists
9. Bus Boards
Wiring diagrams
IO. l9 Rack-mount power supply
Operating and Service Instructions
Page 2
Prepared and edited by Copyright by Studer Professional Audio GmbH
Studer Professional Audio GmbH Printed in Switzerland
Technical Documentation Order no. 10.27.3850 (Ed. 1199)
Althardstrasse 30
CPI-8105 Regensdorfi Switzerland
http://wwwstudemh Subject to change
Studer is a registered trade mark of Studer Professional Audio GmbH, Regensdorf
