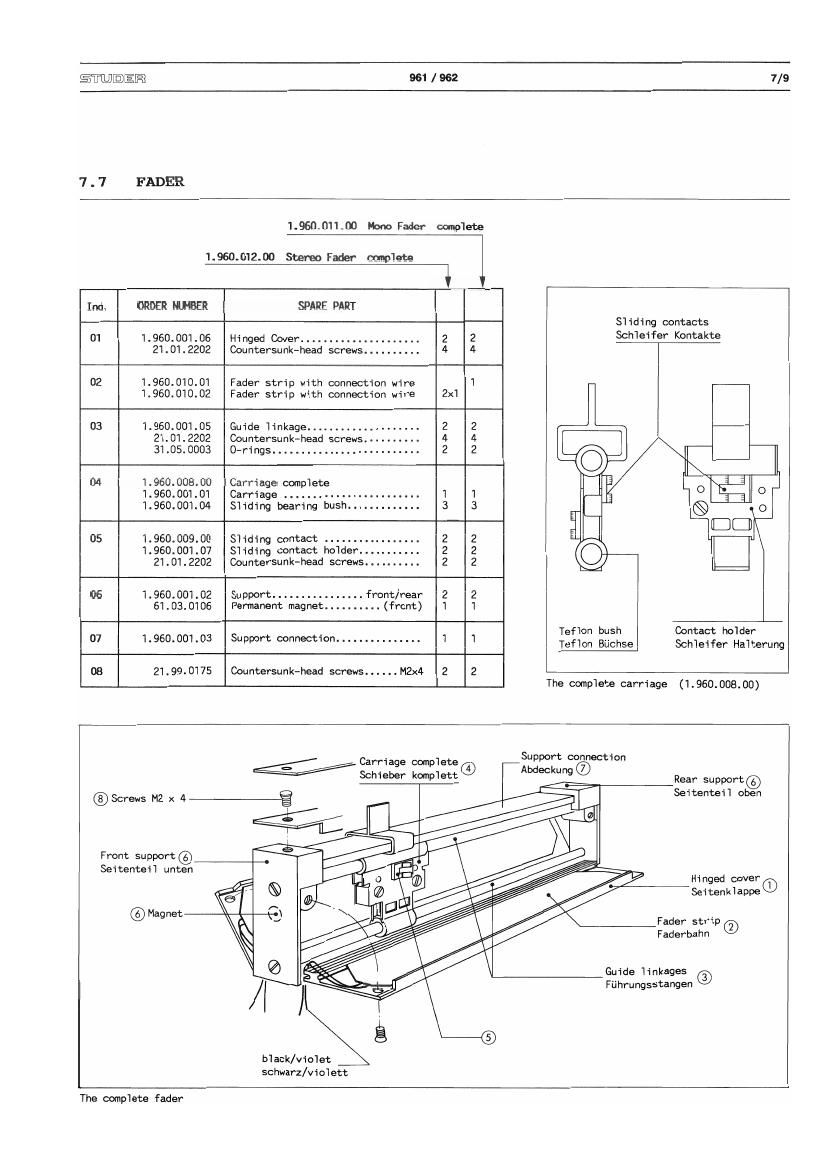

Studer 962 Service Manual 4

Page 1

Emma; 961 / 962 7/9

7 . 7 FADER
1.960.011.m Mano Fader oomp'lerte
1.960.011) Stereo Fader complete
Ind. ORDER HUBER SPARE PART
S'Iiding contacts
01 1.960.001.06 Hinged Cover ..................... 2 2 SGMeifer Kontakte
21. 01 .2202 Countersunk-head screws. . . ....... 4 4
02 1.960.010.01 Fader strip with connection wire 1
1.960.010.02 Fader strip with connection wire 2x1 H l
03 1.960.001.05 Guide 1inkage ........ 2 2
21. 01.2202 Countersunk-head screws. 4 4
31. 05.0003 O-ri ngs ................... 2 2
04 1.960.008.00 Carriage comp1ete '
1.950.0m .01 Carriage .......... 1 1 0 0
1.960.001.04 S1iding bearing bush. 3 3 ® 0
A A DCD
DS 1.960.009.00 S1iding contact .......... 2 2 ' 11
1.960.001.07 S1iding contact ho'lder 2 2
21. 01.2202 Countersunk-head screws. . . 2 2
06 1.960. 001. 02 Support ................ front/rear 2 2
61. 03.0106 Permanent magnet .......... (front) 1 1
Teflon bush iContact no'lder
07 1.960.001.03 Support connection. .............. 1 1 Teka Bflchse SchTeifer Ha1terung
08 21.99.0175 Countersunk-head screws. ..... M2x4 2 2
The comp1ete carriage (1.960.008.00)
Q Carriage oomp1ete Support connection
a Schieber komplett ® Abdeckung

Front support @
Seitentefl unten

@ Magnet

b1ack/vio1et
scnwarz/vic1ett

Rear support
Seitentei 1 oben

Hinged cover®
Seitenk1appe

Fader strip
Faderbahn ®

Guide 1inkages ®
Ffihrungsstangen

The comp1ete fader
