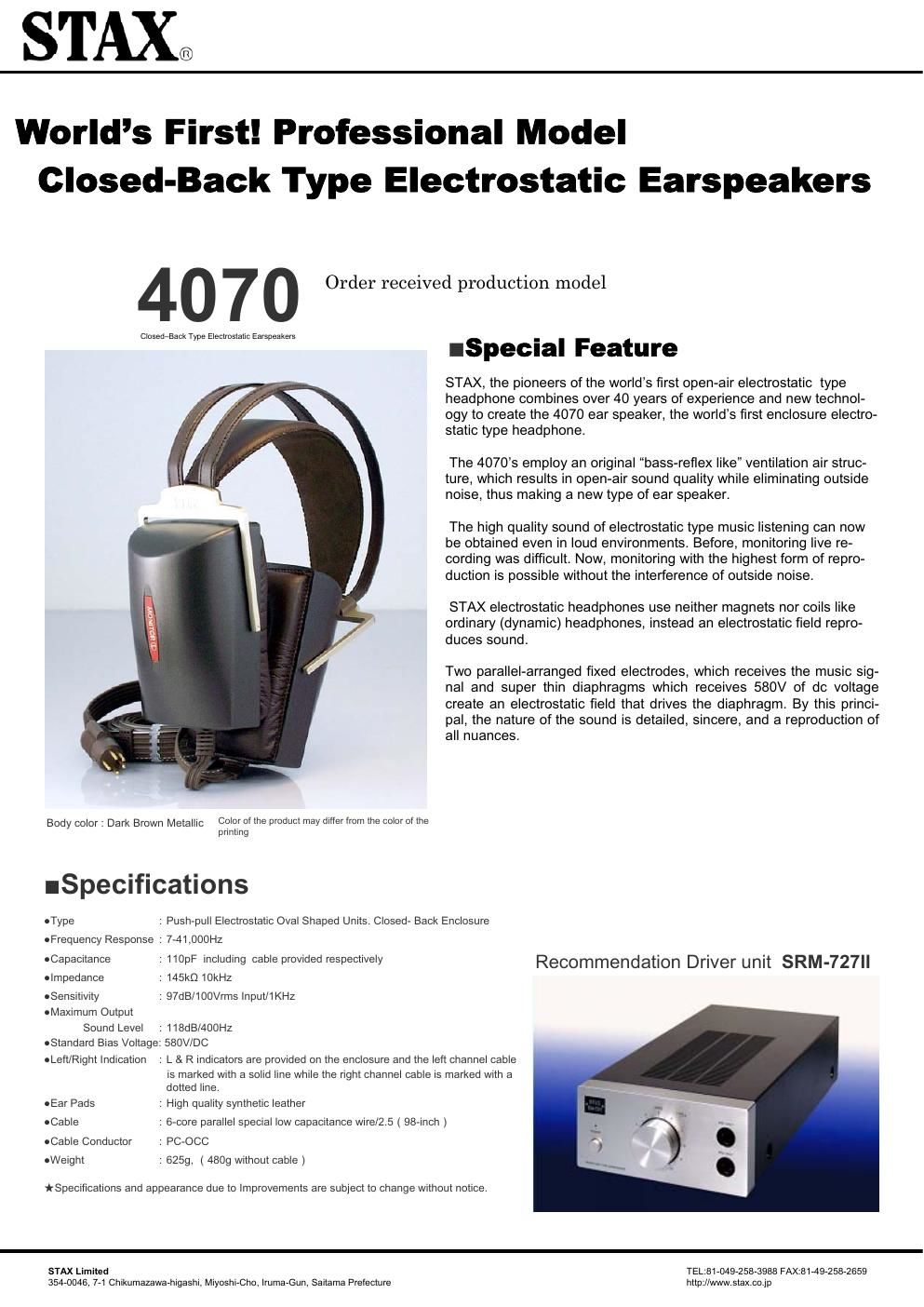

Stax 4070 brochure

Page 1

Worlds First! Professional Model
Closed-Back Type Electrostatic Earspeakers

4 o 7 0 Order received production model

closerHaaok Type Electrostatic Earspeakers

Body color Dam Brown Melanie Color or the product may differ from the color or Ihe

lSpecial Feature

STAX, the pioneers of the worlds first open-air electrostatic type
headphone combines over 40 years of experience and new technol-
ogy to create the 4070 ear speaker, the worlds first enclosure electro-
static type headphone.

The 4070s employ an original bass-reflex like" ventilation air struc-
ture, which results in open-air sound quality while eliminating outside
noise, thus making a new type of ear speaker.

The high quality sound of electrostatic type music listening can now
be obtained even in loud environments. Before, monitoring live re-
cording was difficult. Now, monitoring with the highest form of repro-
duction is possible without the interference of outside noise.

STAX electrostatic headphones use neither magnets nor coils like
ordinary (dynamic) headphones, instead an electrostatic field repro-
duces sound.

Two parallel-arranged fixed electrodes, which receives the music sig-
nal and super thin diaphragms which receives 580V of dc voltage
create an electrostatic field that drives the diaphragm. By this princi-
pal, the nature of the sound is detailed, sincere, and a reproduction of
all nuances.

printing
. I I
ISpeCIfIcatIons
oType . Push-pull Electrostatic Oval Shaped Units. Closed- Back Enclosure
oFrequency Response : 7-41,000Hz
oCapacitance : 110pF including cable provided respectively Recommendation Driver- Unit SRM_727"
Olmpedance : 145M) 10kHZ
OSensitiVity . 97dB/100Vrms Input/1 KHZ

oMaximum Output
Sound Level . 118dB/400HZ
oStandard Bias Voltage' 580V/DC

oLelt/Right Indication

oEar Pads
oCabIe

oCable Conductor
oWeighl

. L & R indicators are provided on the enclosure and the left channel cable

is marked with a solid line while the right channel cable is marked with a
dotted line.

. High quality synthetic leather

: 6-core parallel special low capacitance wire/2.5 ( 98-inch )
: PC-OCC

: 6259, ( 4809 Without cable )

*Speclfications and appearance due to improvements are subject to change without notice

STAX Limited

354-0046. 7-1 ChikumaZaWa-higashl, Mlyoshl~Ch0, Iruma~GurL Saitama Prefecture

TEL:81~049-258-3988 FAX:81-49-258-2659
http://www.stax.co.jp
