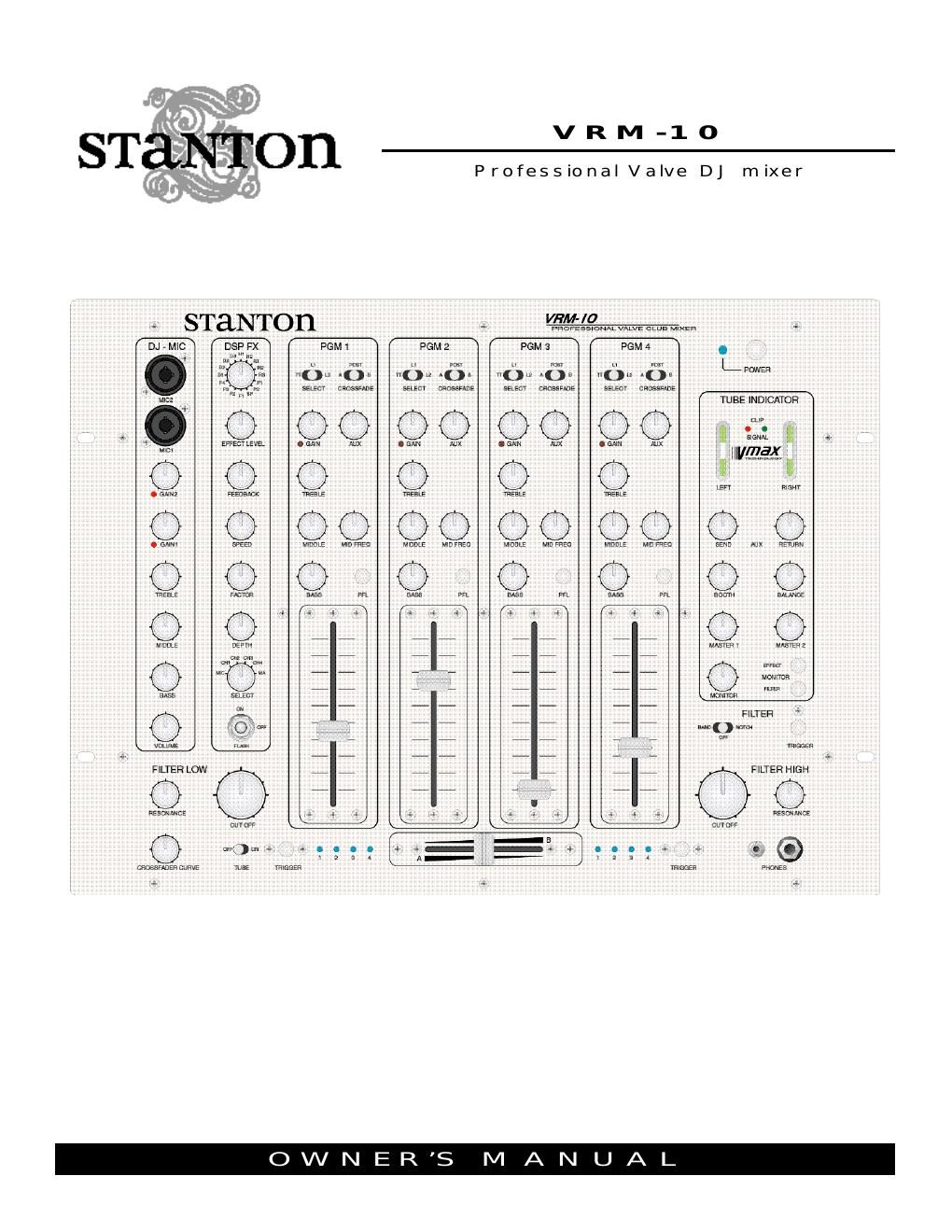

Stanton vrm 10 owners manual
This is the 8 pages manual for stanton vrm 10 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton vrm 10 owners manual (Ocr-read)
Page 1
INPUTS AND OUTPUTS (Rear) Aside from the headphone output and microphone jacks, all connections are on the rear of the VRM10. AMains plug with fuse and voltage selector. Changing the fuse: The lid for the housing of both fuses can easily be opened by pressing both sides of the lid simulta- neously. After changing the fuses, please make sure the lid is closed securely. To switch the voltage selector it is also necessary to open the fuse housing. You must now twist the plug to the desired voltage setting. The selected volt- age can be seen from outside. Make sure to replace the fuses with the necessary value, as indicated on the back of the mixer. **MAINSPLUGMUSTBEUNPLUGGEDTOSELECTTHEVOLTAGE** BLINE INPUT for channel 4 CLINE INPUT for channel 4 DLINE INPUT for channel 3 ELINE INPUT for channel 3 FLINE INPUT for channel 2 GLINE INPUT for channel 2 HLINE INPUT for channel 1 ILINE INPUT for channel 1 LINE inputs 1 and 2 are for connecting devices with an out- put of up to +20dBu (i.e. CD, MD, DAT, etc...) JPHONO INPUT for channel 4 KPHONO INPUT for channel 3 LPHONO INPUT for channel 2 MPHONO INPUT for channel 1 The PHONO inputs are for use with turntables with mag- netic systems. They can perform best with levels form up to -20dBu. There is an integrated RIAA-filter for each phono input NAUX The auxiliary channel can be used for various applications such as: - Recording of individual or selection of various channels - Monitoring of an individual or various channels - Additional effect send for one or more channels (when using an empty channel)The volume can be set to 0dBu maximum and is controlled in each channel individually with the AUX (25) control knob. The signal for the auxiliary send is taken after the GAIN sig- nal path, but before the EQ section (please also see the block diagram). OEFFECT SEND PEFFECT RETURN When using an external effects processor (such as the Stanton DJF1 professional DJ filter) you must connect the EFFECT SEND to the input of your processor and the EFFECT RETURN to the output of your effects unit. The input and output volumes can be at a maximum of 0dBu. The volume can be set and controlled via the settings of AUX SEND (47) and RETURN (48). The effect patch goes through the MASTER-channel; the DJ-MIC signal will not be affected (please also see the block diagram). The 1/4 Jacks for EFFECT SEND, EFFECT RETURN and AUX are set as follows: TIP: LEFT RING: RIGHT SHAFT: GROUND QGROUND connection for turntable If the connected turntable has a separate GROUND cable, it must be connected with the screw Q to prevent ground humming. ROutput attenuation selector for MASTER 1 SMASTER 1 LEFT TMASTER 2 RIGHT The main output MASTER 1 is equipped with balanced (symmetrical) XLR jacks. The value of this output can be selected either at +6 or 0dBu with the switch R. The value of the output signal can also be individually set with the MASTER (51) control. The XLRs are set as follows: 1: GND 2: +SIGNAL 3: -SIGNAL1
Page 2
UBOOTH The output value of the BOOTH is set at 0dBu. It can be adjusted via the control knob BOOTH (49) NOTE : BOOTH output is not affected by any balance/pan setting (50). VMASTER 2 The output MASTER 2 is identical to MASTER 1. It has an output impedance of +6dBu, which can be adjusted by the MASTER 2 control. WDIGITAL OUTPUT The digital output of the VRM10 is equipped in the S/P DIF standard. The signal path is switched parallel with MASTER 2 and can be controlled via the MASTER 2 (52) knob.NOTE: To achieve the optimum sound performance and lowest signal-to-noise ratio it is essential in the digital out- put section to set the output impedance of the mixer to the highest possible level (control 52) and if necessary to lower the volume of the digital equipment connected to the VRM10 receiving signal.2CONTROL INTERFACE (Front Panel)1Power On/Off 2LED Power After pressing the VRM10s power switch, the blue powerLED will light up right away. The valves in the signal path of the VRM10 will light up fully after a warm up period of 1-2 minutes. The main outputs of the VRM10 (MASTER 1+ 2 and BOOTH) are equipped with a special patented circuitry to prevent crackling noise in the signal while switching the unit on or/and off. In any case you should make sure, that the mixer is switched on before the rest of your equipment, i.e. especially amplification e.g. This will pre- vent possible damage to you speakers and PA system. When turning off your equipment, you should proceed the opposite way; this means: first turn off the amplifica- tion, then the VRM10 mixer.
