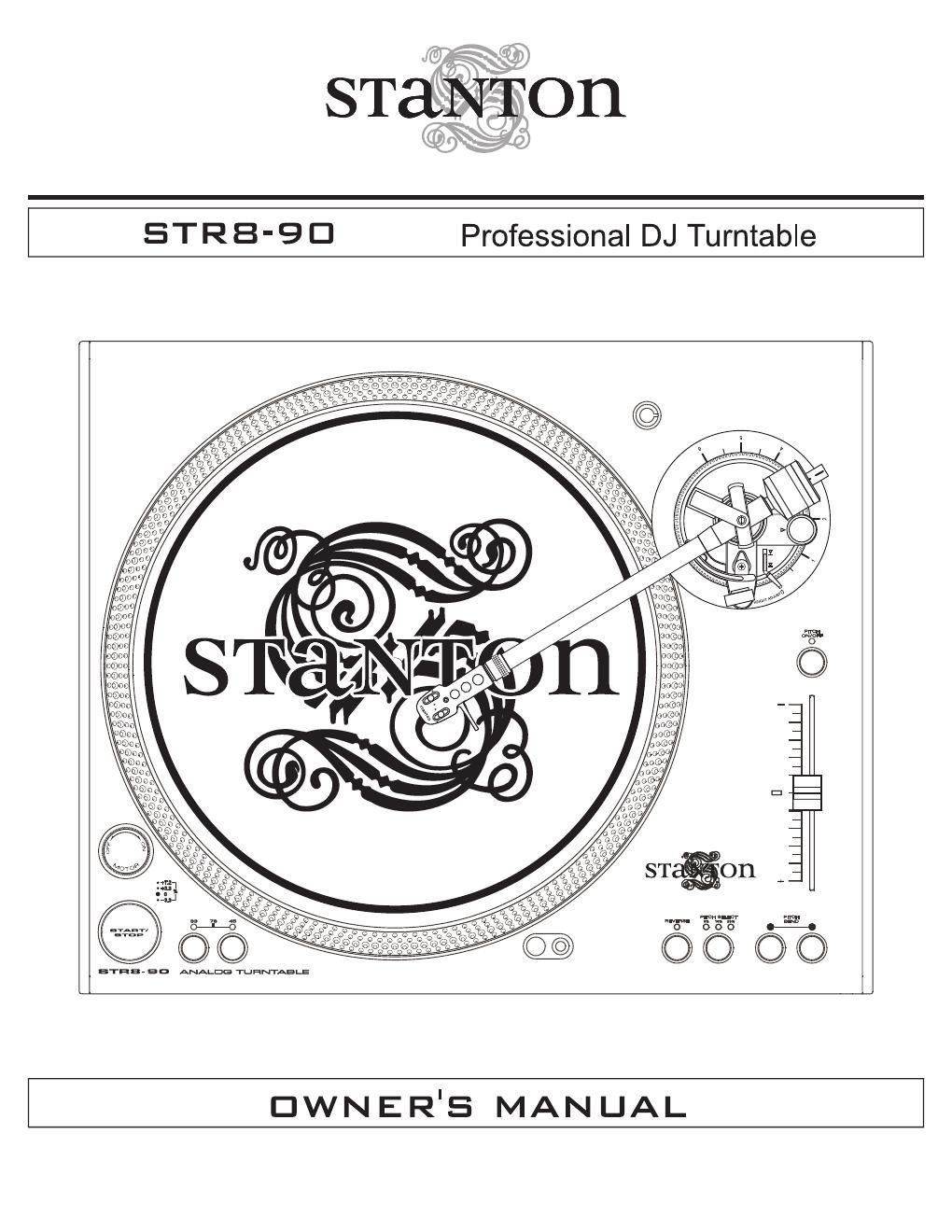

Stanton str 890 owners manual
This is the 4 pages manual for stanton str 890 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton str 890 owners manual (Ocr-read)
Page 1
ASSEMBLY Remove all the parts from the box. Please check to make sure the following items are included with the main unit in the carton: (1) Operating instructions (2) Platter (3) Slip mat (4) Counterweight (5) 45-rpm adapter (6) Headshell (7) AC cord (8) Connecting cord (9) Cartridge CONNECTIONS 1. Connect the power cord to the auxiliary power outlet on the rear panel of your amplifier or receiver or to a household AC outlet. 2. Connect the unit output terminals to the PHONO jack of your amplifier or receiver. Output terminals Amplifier (Receiver) L White) L Channel R (Red) R Channel GND (Spade) GND NOTE: Be sure to connect the ground terminal firmly to the amplifier or receiver. If this connection is not made or is loose, a power source "HUM" will result. TONE ARM AND CARTRIDGE SETTINGS The major cause of problems in sound and skipping on the vinyl is the lack of proper set up of the needle and turntable adjustments. The needle is designed to operate at a specific angle to the vinyl. The str8-90 has several adjustments to correctly position the needle to the vinyl. The first adjustment is the correct installation of the cartridge. Your cartridge is to be mounted into the headshell as pre the mounting instructions included with the cartridge. The Stanton 500,680 and 890 series of cartridges require the use of the two screw mounting into the headshell. For you convenience, some of these products can be purchased already mounted and pre-adjusted from your local Stanton dealer. If you are using these 1/2 mounted products with a headshell in a mobile application or you are doing heavy scratching, May want to use an extra shell weight. The Master series of products (Trackmaster, Groovemaster, etc.) are designed with their own mounting that eliminates the need for a separate headshell and the wiring to the cartridge. The body of the cartridge should be parallel with the centerline of the headshell-tone arm, when viewed from the front to the back. The second adjustment is at the installation of the cartridge-head-shell assembly into the tone arm tube lock. Holding the tone arm tube in one hand, insert the cartridge-headshell into the tube lock with the other hand. Turn the lock ring clockwise (when viewed from the rear) until the headshell is locked tightly into the tone arm. Remove the needle protector from the cartridge and place the needle on record. View the needle from the front and insure that the needle is perpendicular to the record surface. If some adjustment is needed, simply loosen the lock ring and rotate the cartridge-headshell until the needle is perpendicular to the record surface. Then re-tighten the lock ring. The third adjustment is the needle (or stylus) pressure. Start with the cartridge-headshell assembly mounted into the tone arm. Remove any needle protectors provided. With tone arm free, adjust the tone arm counterweight by rotating the rear section until the tone arm floats in a balanced condition above the record or mat. Do not allow the needle to drop onto the mat or the turntable platter during this adjustment. You might damage the needle tip. Now, carefully hold the tone arm in one hand while rotating the numbered ring on the front of the counter-weight with the other hand to the 0 setting. Next, without touching the numbered ring, Rotate the rear counterweight until the desired needle pressure reading is next to the line on top of the tone arm tube, See the instructions. Included with your cartridge for proper settings. The fourth and last adjustment is that of the tone arm height. This will set the tone arm pivot and needle relation with the vinyl. Unlock the tone arm base located in the base of pivot assembly. Rotate the height adjust ring in the pivot base to read the correct setting for the height adjust ring in the pivot base to read the correct setting for the height of the cartridge that you are using. Check the cartridge/arm height table for the correct setting. Be certain to re-lock the pivot base when adjustment is completed.
Page 2
PART NAMES & FUNCTIONS 1) STROBE DOTS The dots around the edge of the platter are used in conjunction with the light located inside the motor ON/OFF switch. While the platter is in rotation, the dots help to indicate the speed of rotation. The speed is lower than the displayed speed (33,45,78) when the dots are flowing to the right. It is higher than the displayed speed (33,45,78) when the dots are flowing to the left. When the strobe is stopped, the platter is rotating at the displayed speed. 2) MOTOR ON/OFF SWITCH As opposed to analog turntables, this is not the power switch. This switch only turns on or off the motor. Rotate clockwise to turn on the motor. The platter will not start spinning until the start/stop button has been pressed. Rotate counter-clockwise during playback (off position) for a slow winding down effect. 3) START/STOP Press this button to start or stop the platter. 4) PLATTER REVOLUTION SPEEDS (rpm) 33 rpm – Press 33 45 rpm – Press 45 78 rpm – Press 33 and 45 buttons simultaneously. To return to 33 or 45-rpm play mode, just press the desired button. 5) HEASDHELL When installing a phonograph cartridge, refer to the installation instructions supplied by the cartridge manufacture. 6) TAGRET LIGHT Press the button to light up the stylus. To retract the light, press down on the light itself. 7) REVERSE This button is used to reverse the direction of the platter rotation. 8) PITCH SELECT Press the button to switch between +/-8%,+/-16%, or +/-25% pitch range. 9) PITCH BEND The pitch will increase/decrease by up to 6% while the pitch bend minus button is pressed. 10) PITCH SLIDER Use this to change the speed of the platter when the PITCH button is lit. 11) HEADSHELL LOCKING NUT Attach the headshell by inserting into the front end of the tone arm, then turn the locking nut clockwise with the head shell firmly held horizontally. 12) TONE ARM This is a fully manual tone arm. To start playback, gently place the stylus on the record using the headshell finger support. Do not drop the stylus onto the record as it may cause damage to the diamond tip and to the record. 13) PITCH ON/OFF The ON setting will allow use of the pitch adjust. When set of OFF, the pitch control will be locked at 0%. 14) TONE ARM BASE The tone arm base includes the height adjustment, tone arm rest. See tone arm and cartridge settings for proper adjustments. Note: No Anti-Skate is needed on straight tonearms. 15) COUNTERWEIGHT Use this to balance the tone arm and to adjust the stylus pressure. 16) HEADSHELL HOLDER This is used to place extra headshell during a performance for quick access. 17) OUTPUT This is the standard analog output (RCA jacks) which can be connected to a phono input on any DJ mixer. 18) GND Ground wire connection post 19) POWER SETICH This switch turns the power on or off, including the motor and audio signal. 20) POWER CORD CONNECTOR Used to connect the included power cord.
