Stanton st 100 owners manual
This is the 6 pages manual for stanton st 100 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton st 100 owners manual (Ocr-read)

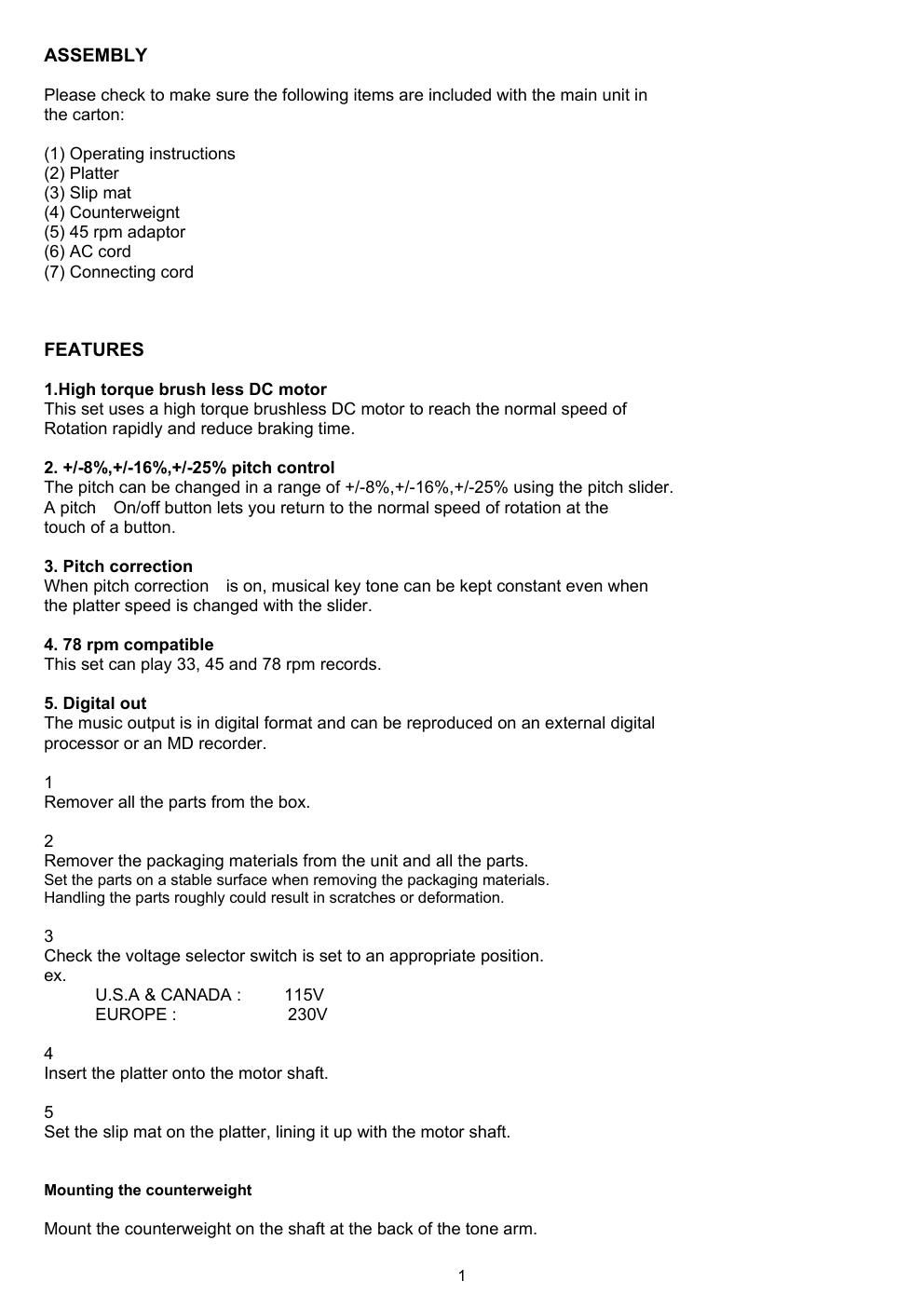

Page 1
Mounting th e cartridge Insert the he adshell on w hich the cart ridge has be en mounted into the tone arm and fasten it in place using the lock nu t. Instru ction s on how to setu p the tonea rm fr om the website sho uld be adde d on this pag e. 2
Page 2
PART NA MES AN D FU NCTIO NSPAS SEMBLY 4 3 2 1 5 69 7 15 10 14 8 16 17 12 11 18 20 21 23 23 13 22 19 0 1 4 5 6 HEIGHT ADJUST 1 Strobe dots 2 Voltage selector Check that the voltage selector swit ch is set to an appropriate voltage before use. 3 Motor ON/OFF SWIT CH ON - Rotate right OFF- Rotate left 4 Start/Sto p button (START/ST OP) Press this b utton to start and stop th e platter rot ation. 5 Platter re volution speed buttons 33 rpm - Pre ss 33 45 rpm - Pre ss 45 78 rpm - Pre ss 33 and 4 5 6 Target light Press the b utton to the right and a li ght will pop up directed at the stylus position. 7 Ke y corre ction Press to en able key cor rection the l ight will turn on and the key won =t change when adjusting the pitch slid er. Press ag ain to disab le key correction the ligh t will turn off. 8 Pitch ON/ OFF ON - Will all ow use of th e pitch adju st. OFF - Will hold the revolution speed at exactly the specif ied speed. 9 Reverse Press this b utton to swit ch the reverse and forward playback. 10 Headshell The cartridg e has been pre-mounted on the hea dshell. 3
