Extracted text from stanton smx 301 owners manual (Ocr-read)

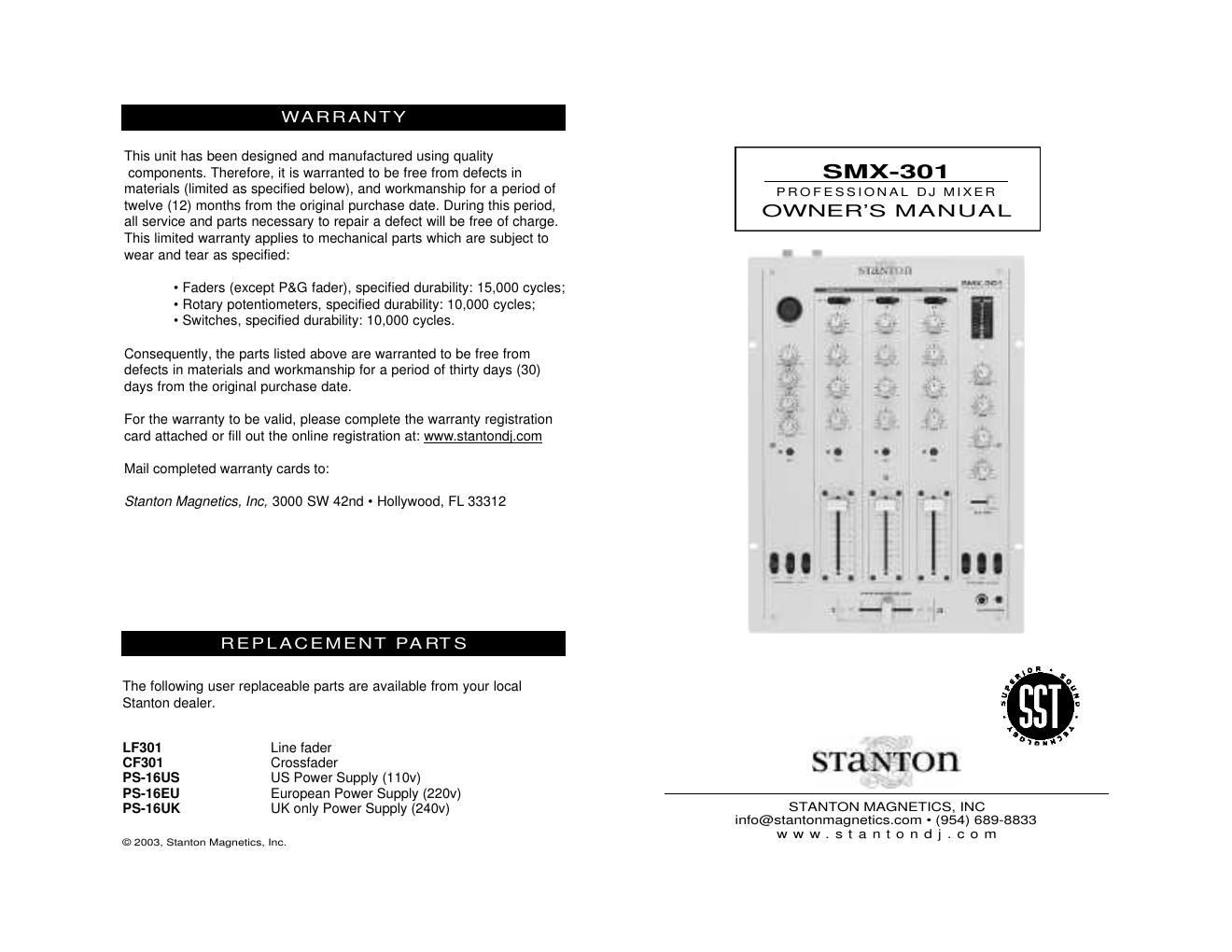

Page 1
PLEASE READ CAREFULLYBEFORE USE FA I L U R ETOF O L L O WT H EI N S T R U C T I O N SP R I N T E DB E L O WM AYV O I DWA R R A N T Y - Follow all security advice printed on your mixer - When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! -Avoid placing your mixer near heat sources, such as power amplifiers. - When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. - When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. -To prevent overheating, always provide your mixer with adequate ventilation air space. -Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. -To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. If possible connect mixer to a surge protector. -Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return your mixer to an authorized Stanton dealer for servicing. Thank you for making Stanton your first choice in professional DJ mixers. This innovative family of mixers has been developed with input from the professional DJ community, bringing a previously unavailable, affordable combination of user-friendly, functional design, rugged construction, and professionalquality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfaction by offering benchmark service and support throughout the long life of your Stanton product. We appreciate your patronage, and look forward to many years of making music together. W E L C O M E ! Line Inputs: 2 (RCA) x3 channels,-10 dBV/ 10 kOhm Phono Inputs: 2 (RCA) x3 channels,-50 dBV/ 47 kOhm Mic Inputs:1 (1/4) 1XLR-50 dBV / 4.7 kOhm Master Outputs:2 (1/4) Balanced/ (RCA) unbalanced +4 dBu balanced / -10 dBV unbalanced Record Outputs:2 (RCA), -10 dBV / 100 Ohms Booth Outputs:2 (RCA), -10 dBV / 100 Ohms Headphone Output:1 (1/4), 1(1/8 inch) Dimensions (LxWxD): 15.3 in x 10.2 in x 4.3 in (39 cm x 26 cm x 11 cm) Weight:7.0 lbs (3.2 kg) Frequency Response:20 Hz to 20 kHz +/- 1.3 dB THD+N: < 0.015% @ 1 kHz Signal to Noise Ratio (ref: max level): > 110 dB (main signal path) Noise Floor: < -92 dBV (Line input to any output) Crosstalk (Line to Line, Phone to Line, Line to phone): < -90 dB@ 1 kHz Fader Kill:< -90 dB Channel EQ: Hi +9, -45 dB, Kill: -45 dB Mid +9, -35 dB, Kill: -35 dB Low +9, -55 dB, Kill: -55 dB T E C H N I C A LS P E C I F I C AT I O N S SUPERIOR SOUND T E C H N O L O G Y The audio quality of the SMX-301 is nothing short of revolutionary for DJ mixers in its price class. The SMX-301 was designed by Stantons new product development team, seasoned audio professionals who have designed world class professional recording studio and broadcast mixers and product managers who are working DJs and work closely with some of the worlds most respected DJs. They have taken their knowledge and experience to create the SMX-301, a DJ mixer with superior audio quality and unprecedented value. Come hear the difference!
Page 2
Removing a fader: 1.Make sure mixer is powered off and power supply is disconnected from back of mixer. 2.Remove the fader to be cleaned or replaced by unscrewing the 2 outer screws on the fader plate (removing the 2 inner screws will detach the fader from the fader plate). 3.Disconnect the fader from mixer by removing the connector on the bottom of the fader. Installing a fader: 1.Once original fader has been removed, simply plug the 4-pin connector into the new fader. 2.Place fader back in mixer and replace 2 outer screws to secure fader. After constant use the SMX-301 faders may need to be cleaned and lubricated from time to time. This will ensure long life and keep a smooth feeling throughout the fader's lifetime. Follow the instructions below to lubricate and clean your faders: FADER CLEANING AND INSTA L L DESCRIPTION OF FUNCTIONS Power:This is the power switch to turn the mixer "ON" or "OFF" AC IN:This is the Input connection for the included power supply. Line:Line inputs (represented by the letter L, followed by the input number) are used to connect to line level sources such as CD players, Mini Discs, DATs, samplers, etc. TT:TT(or phono) inputs are used to connect to turntables. Ground:Connects to the turntable ground cable to eliminate electrical hum. Ground cables are usually supplied with turntables Master: Connects to an amplifier, EQ, crossover, or other outboard signal processing. Booth:This is a second output, like the master output. It is usually used as a separate output in the DJ Booth for the DJ to monitor the mix REC:This is the record output. The output level is static in this case, there are no volume controls. It is used to connect directly to tape or CD recorders. The volume can be set from the recording device.
