Extracted text from stanton sa 8 owners manual (Ocr-read)

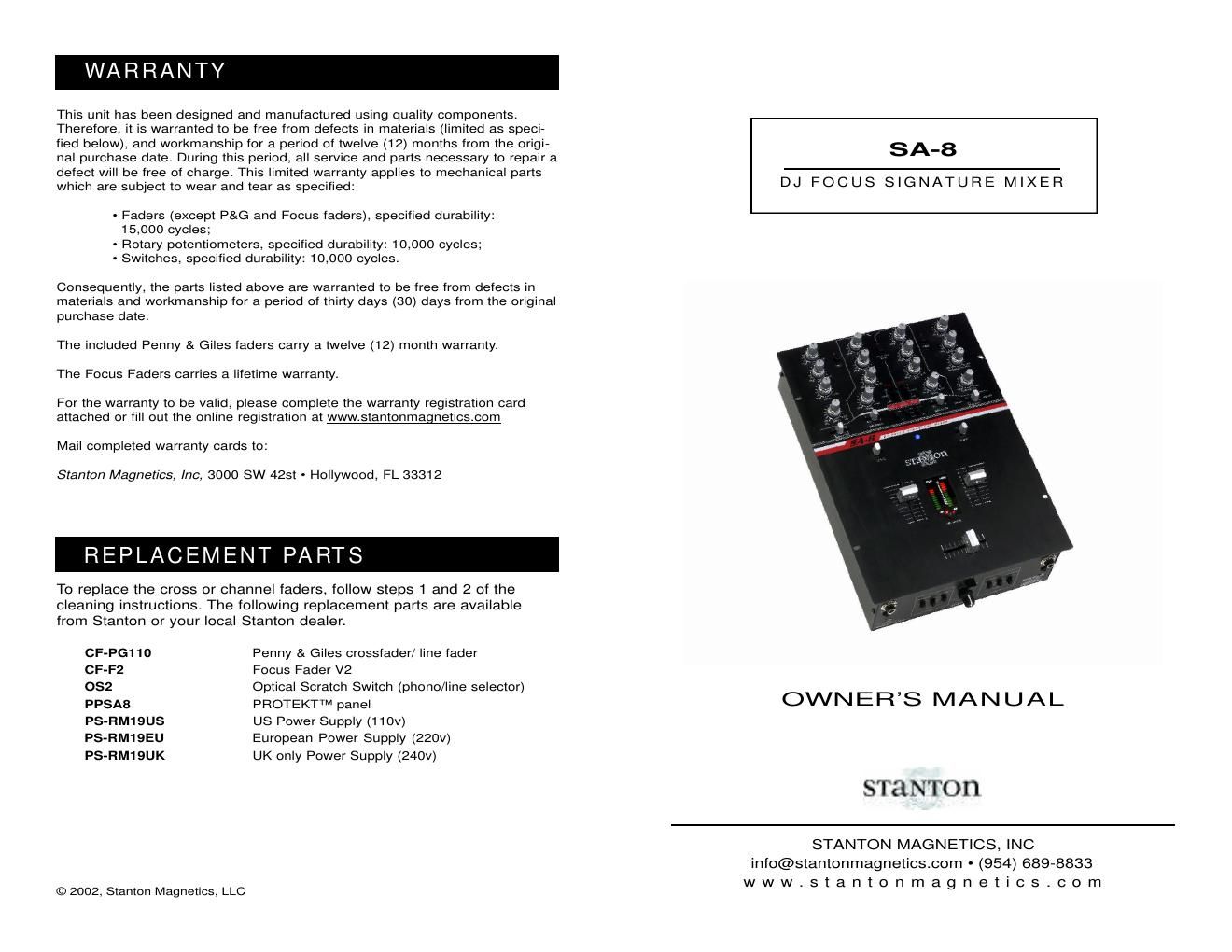

Page 1
PLEASE READ CAREFULLYBEFORE USE FA I L U R ETOF O L L O WT H EI N S T R U C T I O N SP R I N T E DB E L O WM AYV O I DWA R R A N T Y - Follow all security advice printed on your mixer - When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! -Avoid placing your mixer near heat sources, such as power amplifiers. - When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. - When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. -To prevent overheating, always provide your mixer with adequate ventilation air space. -Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. -To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. If possible connect mixer to a surge protector. -Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return your mixer to an authorized Stanton dealer for servicing. Thank you for making Stanton your first choice in professional DJ mixers. This innovative family of mixers has been developed with input from the professional DJ community, bringing to the marketplace a previously unavailable, affordable combination of user-friendly, functional design, rugged construction, and professional quality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfaction by offering benchmark service and support throughout the long life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together.T E C H N I C A LS P E C I F I C AT I O N S Line inputs:2 (RCA) x 2 channels, -10 dBV / 37 kOhm Phono inputs:2 (RCA) x 2 channels, -50 dBV / 47 kOhm Aux inputs:2 (RCA) -10 dBV /22 kOhm Return inputs: 2 (1/4"), -10 dBV / 22 kOhm Send output: 2 (1/4"), -10 dBV Master output: 2 (1/4") Balanced /(RCA) unbalanced, +4 dBu balanced / -10 dBV unbalanced Program outputs: 2 (1/4")balanced x 2 channels, +4 dBu / 100 Ohms Booth output: 2 (RCA), -10 dBV / 100 Ohms Headphone output: 2 (1/4 inch), greater than 32 Ohm load Frequency Response: 20 Hz - 20 kHz, + 1/-2 dB Tone Control : + 9/-20 dB (Hi, Mid, Low) Max Gain: 14 dB S/N Ratio: Better than 100 dB (ref: max input level) T.H.D: Less than 0.05% (1 kHz) Dimension(LxWxD): 12.6" x 9.25" x 4.72" (320mm x 235mm x 120mm) Weight: 7.3 Lbs (3.3 kgs)
Page 2
The SA-8 DJ Focus Signature Mixer "From the mind of focus" comes the SA-8, the ultimate performance mixer. Never before has so much scrutiny been put into the layout of a scratch mixer, each fea- ture was carefully arranged and placed according to a DJs natural hand move- ment (notice where the gain is). The SA-8 offers features for every type of DJ, either strictly scratch, live performance, production, or mix. This "studio-style" scratch mixer gives you the technology of a professional mixing console com- pacted and ergonomically arranged in a format that is preferred by top DJs. Features include:- Individual Direct outputs allow you record your mixtapes and scratches down to a multi- track recorder, and mix and EQ each channel separately before mixing them down to a tape or CD* -An all new concept in cueing: Post Fader Cue allows you to listen to your scratches in the headphone while using the crossfader as normal* -Autocue eliminates the need for touching the cue pan (switching from Ch.1 to Ch. 2)* -Adjustable Rumble Filter allows the DJ to eliminate low end frequencies* - 3-way adjustable curve control on line faders - OSII Optical Switch (for "noise-free" transforms)* - Mono/Stereo Switch per channel - New screwless faceplate - Includes custom designed P&G (Penny & Giles) crossfader Stanton Focus Fader V2 crossfader, and custom P&G line faders. -All new "one of-a-kind" knobs & faders (a molded design to fit the DJ fingers)* -An ergonomic layout so there is no bumping or cluttering of knobs during use - Phono / Line / FX Toggle Switch - Multiple Outputs: 2-RCA(Unbalanced), 2-1/4" Direct Out ( Balanced), 1-1/4" Master (Balanced), Plus FX Send (1/4") ·Multiple Inputs: 2-RCA(Phono), 2-RCA(Line), 1-RCA (Aux), Plus FX Return (1/4") - Program Reverse - 2-Dual headphone outputs (2-1/4" and 2-1/8" mini jack) w/ Headphone mute - Booth Output P&G Vs Focus Fader The Focus Fader is an optical digital crossfader.The advantages are that there are no contacts inside the fader, which means that the audio will never degrade due to fader wear.This also means that the fader will be much smoother. Some find it too smooth. We have included the P&G fader, which is a high quality mechanical fader for those who prefer more resistance. *Original concepts by DJ Focus SA-12 FUNCTIONS & FEAT U R E S6.5) Insert dust cover. 6.6) Insert fader track back into fader body with wires coming out open end of fader body. 6.7) Secure the remaining end block ensuring that the track wires (I) are not pinched between the end block and fader casing. 7. Once assembled, move the slider from end to end to ensure operation is smooth. 8. Attach fader to fader plate. (NOTE: As noted earlier if you do not want to change positioning of fader, keep the 2 fader plate screws loose and shift the fader until it is aligned with the marks you creat- ed in step 1, then tighten fader plate screws.) INSTALLING THE FOCUS FADER: 1.Once the original fader has been removed, plug the connector into the Focus Fader fader. 2.There is a switch just above the crossfader. Make sure it is set to CFF2. When reinstalling the P&G fader, make sure to switch it back to VR (P&G). 3.Place fader back in mixer and replace 2 outer screws to secure fader.GIFADER CLEANING AND REPLACEMENT
