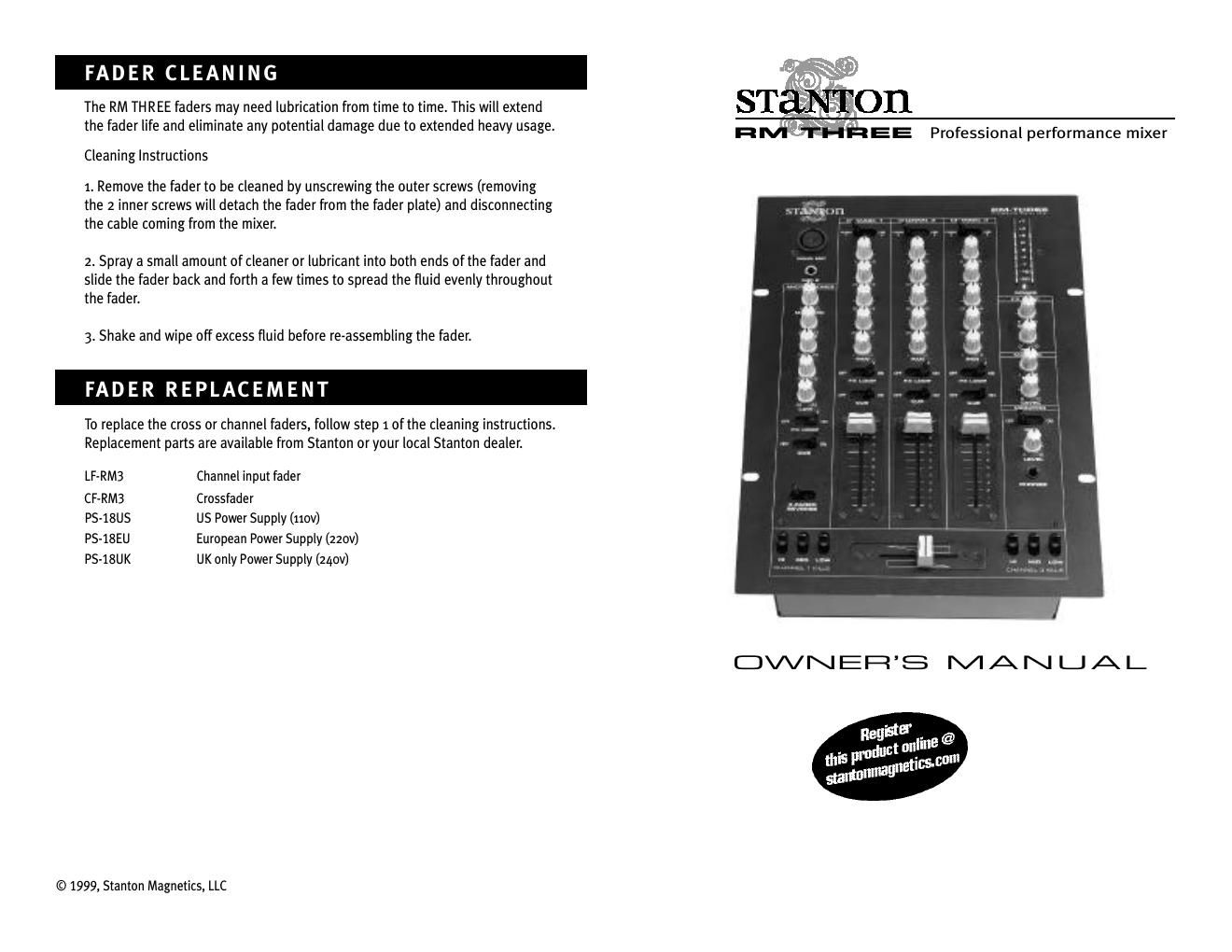

Page 1
PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer ¥When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! ¥ Avoid placing your mixer near heat sources, such as power amplifiers. ¥When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. ¥When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. ¥ To prevent overheating, always provide your mixer with adequate ventilation air space. ¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. ¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. ¥ Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Thank you for making Stanton your first choice in professional DJ mixers. This new, innovative family of mixers has been developed with input from the profes- sional DJ community, bringing to the marketplace a previously unavailable, afford- able combination of user-friendly, functional design, rugged construction, and pro- fessional quality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfac- tion by offering benchmark service and support throughout the long life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together. Problem Excessive hum when using phono source. Low frequency hum while operating source unit.Cause Poor ground connection. Loose cartridge/headshell connection. Poor AC source ground. Loose input/output connec- tion. Shorted cable.Solution Properly connect turntable ground wire to mixer ground terminal. Check cartridge connection to headshell. Check head- shell connection to tonearm. Properly ground the AC source. Check all input and output connections for s e c u re fit. Isolate and re p l a c e the damaged cable. Pro g ram volume canÕt be adjusted with master vo l u m e c o n t ro l . No powe r.Amplifier or outboard gear connected to the re c o rd out- put. I m p roperly connected AC cord or power line source not on. B l own fuse.Connect amplifier or outboard gear to master output. Properly connect AC cord to AC power source. Turn powe r o n . Re m ove the fuse cover with a flat-bladed scre wd r i ve r. Replace fuse with a new 500mA fuse. The amplifier is turned up, but there is no signal. No signal in headphones.Faulty output connections Improper level adjustment. Improper connection. Improper level or cue mix settings.Properly connect amplifier, or outboard gear to mixer. Properly set crossfader, channel faders, gain con- trols, and input selector tog- gles. Check headphone connec- tion to mixer. Tighten if nec- essary. Adjust headphone level and cue mix to the proper level and channel settings. T RO U B LE S H O OTI N G
Page 2
1. Main microphone input: XLR connector 2. Microphone 2 input: 1/4Ó connector 3. Mic level controls: Controls the overall microphones output level 4. Mic EQ: Controls for low frequency, midrange, and high frequency equalization of both microphones with (+/-12 dB) Note: Any changes made to EQ settings will change the overall microphone output level 5. Effect ON/OFF switches: Turns effect send signal ON or OFF for each channel 6. Cue ON/OFF switches: Turns Cue signal ON or OFF for each channel 7. Input selector switches: Selects the audio signal source for each channel 8. Gain control: Controls the input sensitivity of each channel 9. EQ: Individual controls for low frequency, midrange, and high frequency equalization with (+9/-26 dB) Note: Any changes made to EQ settings will change the overall output level 10. Pan control: Controls left/right output balance of each channel 11. Channel faders: Controls the output level of each channel 12. Crossfader Reverse: Reverses the direction of the crossfader 13. Frequency Kill switches: Individual kill controls for low frequency, midrange, and high frequency of channels 1 and 3 14. Crossfader: Fades the master output between channels 1 and 3. 15. Headphone output: Connection for 1/4 inch headphone. It is recommended headphones with an impedance rating of 200 ohms or less be used for maximum volume 16. Headphone level control: Controls the overall headphone output level. It is recommended headphones with an impedance rating of 200 ohms or less be used for maximum volume 17. Master Cue ON/OFF: Turns headphone output ON or OFF 18. Master level control: Controls the overall signal output level. 19. Master balance control: Controls left/right output balance of the overall signal 20. Send level: Controls the level of the signal traveling to the external effects unit used in the effects loop 21. Return level: Controls the overall level of the the external effects used in the effects loop 22. Power indicator: Blue LED indicates whether mixer is ON or OFF 23. Level meter: Displays the level of the overall output stereo signal 24. Power switch: Turns the mixer "ON" or "OFF"D E S C R I P TI O N O F FU N C TI O NS
