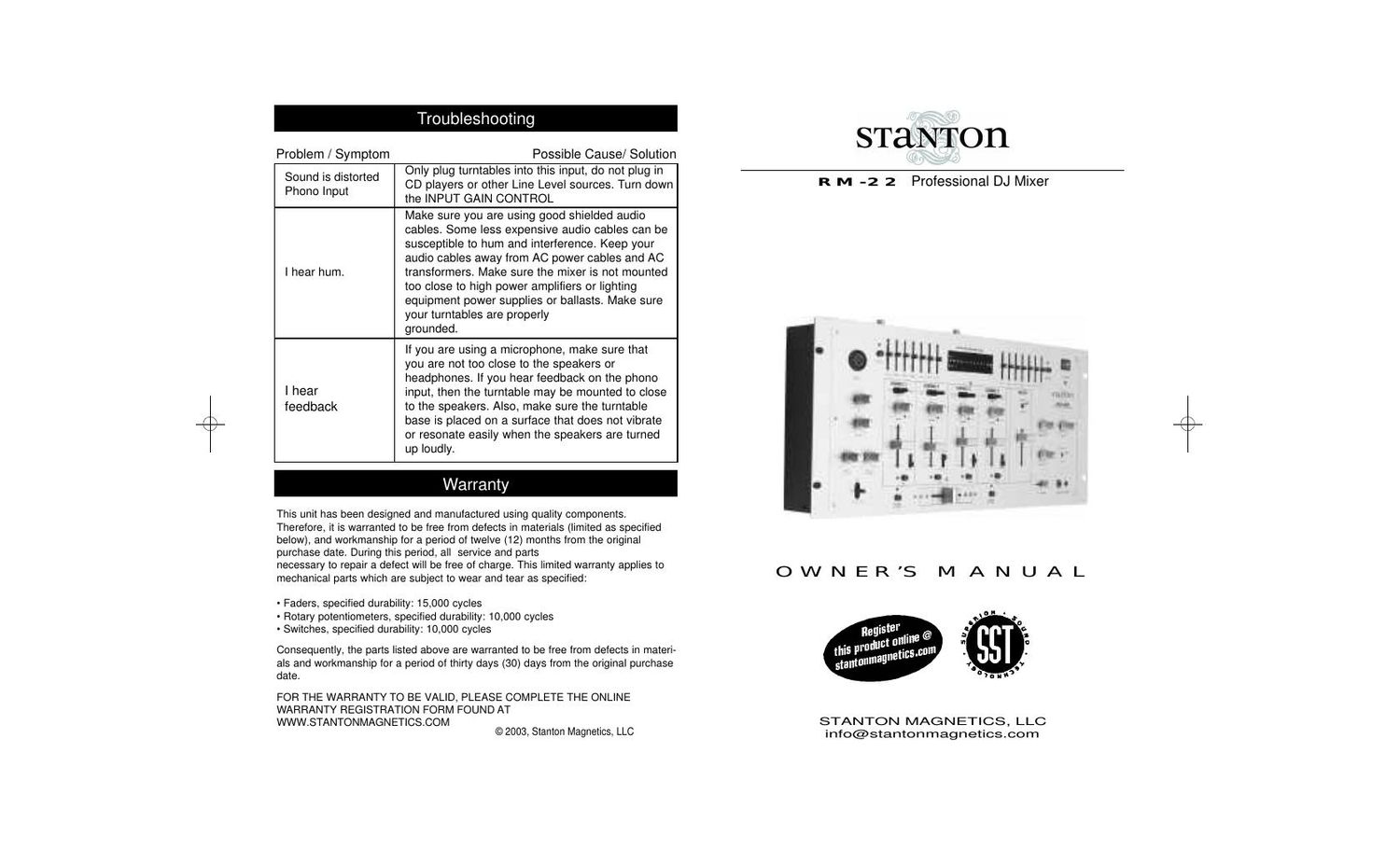

Troubleshooting Please read carefully before use of this product failure to follow the instructions printed below may void warranty - Follow all security advice printed on your mixer - When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! -Avoid placing your mixer near heat sources, such as power amplifiers. - When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity. The manufacturer is not responsible for damage resulting from an impact, or misuse. - When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. -To prevent overheating, always provide your mixer with adequate ventilation air space. -Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. -To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. -Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Problem / SymptomPossible Cause/ SolutionNo SoundIs the power on? Check the power switch.Make sure the channels are assigned properly to the crossfaders. Make sure INPUTGAIN, is turned up and output level control is turned up. Depending on the input, check the rear panel selector switches. Check the top panel channel selector switches. No Sound- Master Output (Booth and Zone are OK)Make sure that MASTER TRIM on the rear panel is turned up.No Sound HeadphonesDo the headphones work with the CUE pan in the PROGRAM position but not PFL? If so, make sure that the channel PFLswitches are engaged. Check the CUE LEVELcontrol. Signal level is low even with the faders and input level controls turned up. Check to make sure the talkback switch is NOT engaged on the microphone input. Check the EQ sliders.Mixer sounds noisyCheck to make sure that the microphone levels are turned all of the way down if a microphone is not being used. Microphone doesnt workIs the Mic gain turned up? Does the microphone require phantom power? This mixer does not provide microphone phantom power.Sound is distorted- Line or CD inputIn general, turn down the INPUTGAIN CONTROL. The input signal may be too loud for the input gain control setting that you were using. Is the EQ on? Turn off the EQ. If the distortion goes away, then you need to turn down the INPUTGAIN CONTROL.
Page 2
Congratulations on your choice of the Stanton RM-22 Professional DJ Mixer.You now own one of the most flexible DJ mixers ever designed. The rackmountable RM-22 offers up to three Microphone inputs, three Phono inputs and nine Line inputs-making it one of the most powerful DJ mixers around. And with Stantons smooth fader movement and rock-solid reliability, its the perfect mixer for mobile and club DJs alike. Please take a moment to familiarize yourself with the RM-22 by reading through this Owners Manual. (And dont worry-well make it quick so you can start mixing!)WelcomeThe RM-22 is an extremely versatile mixer with enough inputs to accommodate many DJ setups including multiple turntables, CD players and microphones. Below we list some of the RM-22s most salient features (in case you forgot already!): - 19 rackmountable DJ mixer with connections for multiple turntables, CD players and microphones - 4-channel design with assignable crossfader for mixing a variety of sources - Individual gain control per channel with clip LED for setting optimum levels - Easy monitoring via PFLswitches and headphone mix with Split Cue and Cue Pan functions. - Fader Start buttons for controlling compatible CD players like Stanton S-Series - Dual 7-band Master EQ for tweaking mixes to suit different venues - Mic inputs 1 and 2 feature 2-band EQ and handy Talkover function - Individual outputs and level control for Master, Zone and Booth Technical Specifications Frequency Response THD+N (Line) Signal to Noise Ratio (ref: max level) Noise Crosstalk (Line to Line, Phono to Line, Line to Phono) Fader Kill Microphone EQ Graphic EQ (7 band stereo) Line Inputs Phono Inputs Phono / CD Mic Inputs Master Outputs Zone Output Booth Output Record Output Headphone Output Dimensions (LxWxD) Weight20 Hz to 20 kHz +1 dB > 0.005 % at 1 kHz > 109 dB (main signal path) -98 dBV (Line input to any output) > -90 dB > -90 dB Hi, Low +12 dB 40 Hz, 80 Hz, 160 Hz, 500 Hz, 1.6 kHz, 3.2 kHz, 6.4 kHz + 10 dB 7(RCA) , 1(1/4 Balanced) -10 dBV / >10 kOhm 2 (RCA), -50 dBV / 47 kOhm 2 (RCA), -50 dBV (Phono) -10 dBV (Line) / 47 kOhm 2 (1/4), 1 (XLR) -50 dBV / 2.4 kOhm 2 (1/4) Balanced/ (RCA) unbalanced, +4 dBu balanced / -10 dBV unbalanced 2 (RCA) unbalanced / -10 dBV 2 (RCA) unbalanced / -10 dBV 2 (RCA) unbalanced / -10 dBV 1 (1/4 inch), 1 (1/8 inch) greater than 32 Ohm load 18.9 in. x 8.66 in. x 4.72 in. (48 cm. x 22 cm. x 12 cm.) 4.5 kg (9.9 lbs)RM-22 Features
