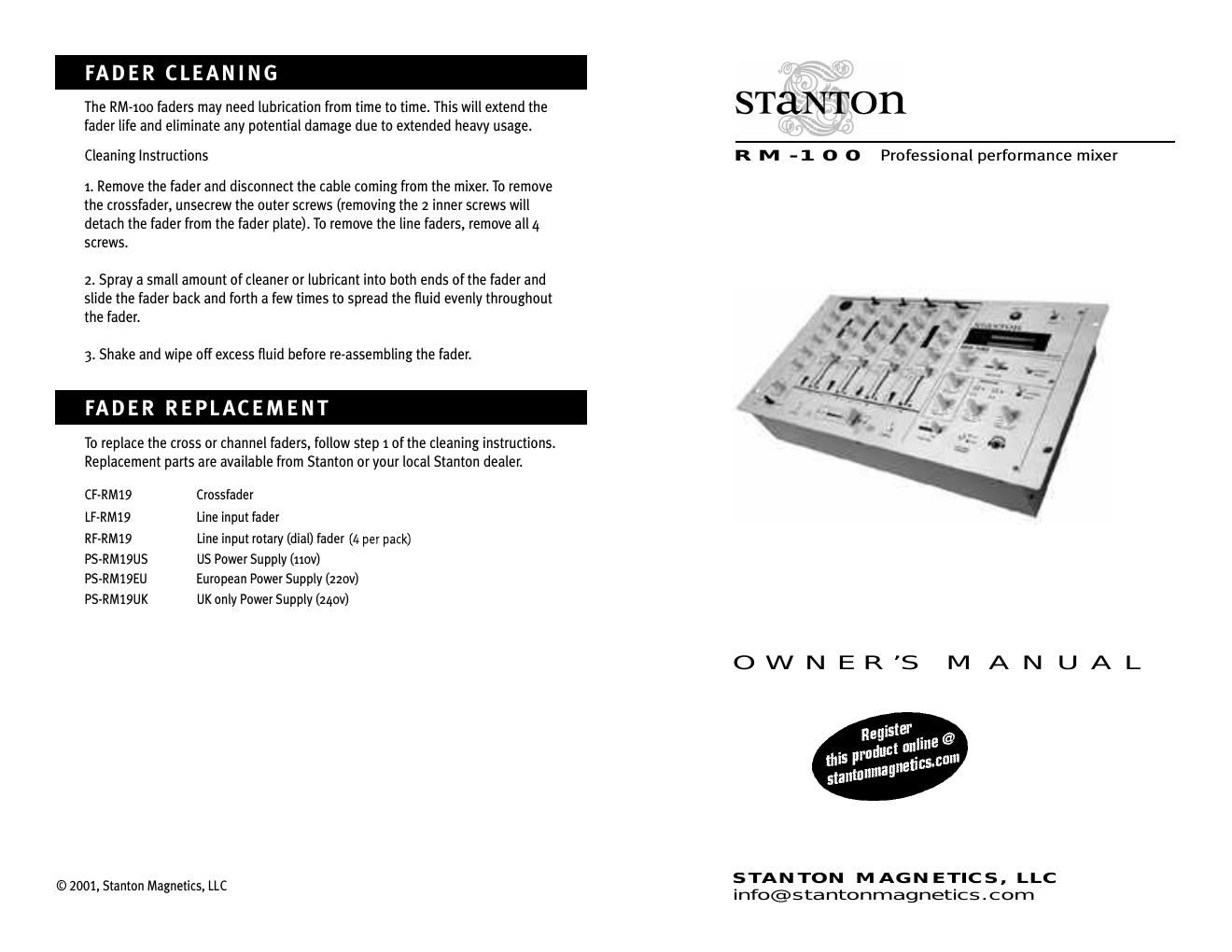

Page 1
PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer ¥When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! ¥ Avoid placing your mixer near heat sources, such as power amplifiers. ¥When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. ¥When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. ¥ To prevent overheating, always provide your mixer with adequate ventilation air space. ¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. ¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. ¥ Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Thank you for making Stanton your first choice in professional DJ mixers. This new, innovative family of mixers has been developed with input from the profes- sional DJ community, bringing to the marketplace a previously unavailable, afford- able combination of user-friendly, functional design, rugged construction, and pro- fessional quality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfac- tion by offering benchmark service and support throughout the long life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together. Problem Excessive hum when using phono source. Low frequency hum while operating source unit.Cause Poor ground connection. Loose cartridge/headshell connection. Poor AC source ground. Loose input/output connec- tion. Shorted cable.Solution Properly connect turntable ground wire to mixer ground terminal. Check cartridge connection to headshell. Check head- shell connection to tonearm. Properly ground the AC source. Check all input and output connections for s e c u re fit. Isolate and re p l a c e the damaged cable. Pro g ram volume canÕt be adjusted with master vo l u m e c o n t ro l . No powe r.Amplifier or outboard gear connected to the re c o rd out- put. I m p roperly connected AC cord or power line source not on. B l own fuse.Connect amplifier or outboard gear to master output. Properly connect AC cord to AC power source. Turn powe r o n . Re m ove the fuse cover with a flat-bladed scre wd r i ve r. Replace fuse with a new 500mA fuse. The amplifier is turned up, but there is no signal. No signal in headphones.Faulty output connections Improper level adjustment. Improper connection. Improper level or cue mix settings.Properly connect amplifier, or outboard gear to mixer. Properly set crossfader, channel faders, gain con- trols, and input selector tog- gles. Check headphone connec- tion to mixer. Tighten if nec- essary. Adjust headphone level and cue mix to the proper level and channel settings. T RO U B LE S H O OTI N G
Page 2
D E S C R I P TI O N O F FU N C TI O NS10. Cue pan assign:When this switch is"UP," the cue pan fader affects the headphone output. While "DOWN," the cue pan fader affects the booth output. 11. Cue pan: Fades the headphone output between the channel(s) selected by the cue assign switches (17) and the master one output, effectively allowing the user to pre- view a mix. 12. Send/return: Send and Return levels are used to control the volume of the external effects unit used in the effects loop. 13. Crossfader source selectors:When set to A, the selecte channel will be assigned to the left side of the crossfader. when set to B, the selected channel will be assigned to the right side of the crossfader.When set to BYPASS, the crossfder will be bypassed alltoghter. 14. Crossfader: Fades the master output between the channels selected by the Crossfader source selectors (13). 15. Beat indicators: Illuminate according to the beat of the program music. The replace- ment of illumination varies depending on the style of music selected. This features offers a helpful visual indicator of beat alignment. 16. Channel fader: Controls the input channel level. 17. Cue assign switch: Selects the channel to be monitored. 18. Fader Start: Turns the fader start function ON or OFF.The fader start will work with CD players (such as StantonÕs S-Series) to start the audio from the CD playerÕs cue point. 19. Talkover attenuation control: Sets the amount of attenuation applied to the music output signal when switch (20) is applied and the mic is spoken into.The attenuation is adjustable from zero to 26 decibels. 20. Mic selector: Turns the mic on or off and activates the automatic talkover circuit. When activated, the automatic talkover circuit reduces the music output based on the setting of the talkover attenuation control (19). 21. FX switch: Turns effect send signal ON or OFF for each channel 22. Equalizer: Individual controls for low frequency, midrange, and high frequency equalization with (+10/-10 dB) Note: Any changes made to EQ settings will change the overall output level. 23. Microphone volume: Controls the output levels of mics 1 and 2 24. Input channel controls: Controls the input sensitivity of each channel and Hi, Mid, and Low frequency equalization (+9/-26dB) of each channel. 25. Microphone 1 input: Combo XLR / 1/4Ó connector 26. Input selector switches: Selects phono or line input. 27. Auxilliary selectors: A. Enables monitoring of the effects loop through the head- phones. B. Turns ON/OFF the efftects loop in the master output. 28. Output Level meter: Displays the overall signal level of the master output. 29. Input Level meter: Displays the input level. The input level is determined by the input 1. Power switch: Selects power "ON" or "OFF". 2. BNC jack: 12V gooseneck light input 3. Mono/stereo switch: switches the of Master output between a stereo and mono signal 4. Master balance control: Controls left/right signal balance of the master output. 5. Master level control: Controls the overall signal output level of the master output. 6. Cue stereo/split switch: In "stereo" position, the pre-selected signal of switches (17) and controls (9) and (11) will be monitored as a stereo signal in the headphones. In "split" position, the pre-selected signal of switches ( 17) and controls ( 9) and ( 11) will be monitored on one side of the headphones, and the master output signal on the other side. 7. Booth level control: Controls the signal level of the booth output. 8. Headphone level control: Controls the overall headphone output level. It is recom- mended headphones with an impedance rating of 200 ohms or less be used for maxi- mum volume. 9. Headphone output: Connection for 1/4 inch headphone. Recommended headphone impedance is 32-200 ohms for maximum volume.
