Stanton pro 30 owners manual
This is the 4 pages manual for stanton pro 30 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton pro 30 owners manual (Ocr-read)

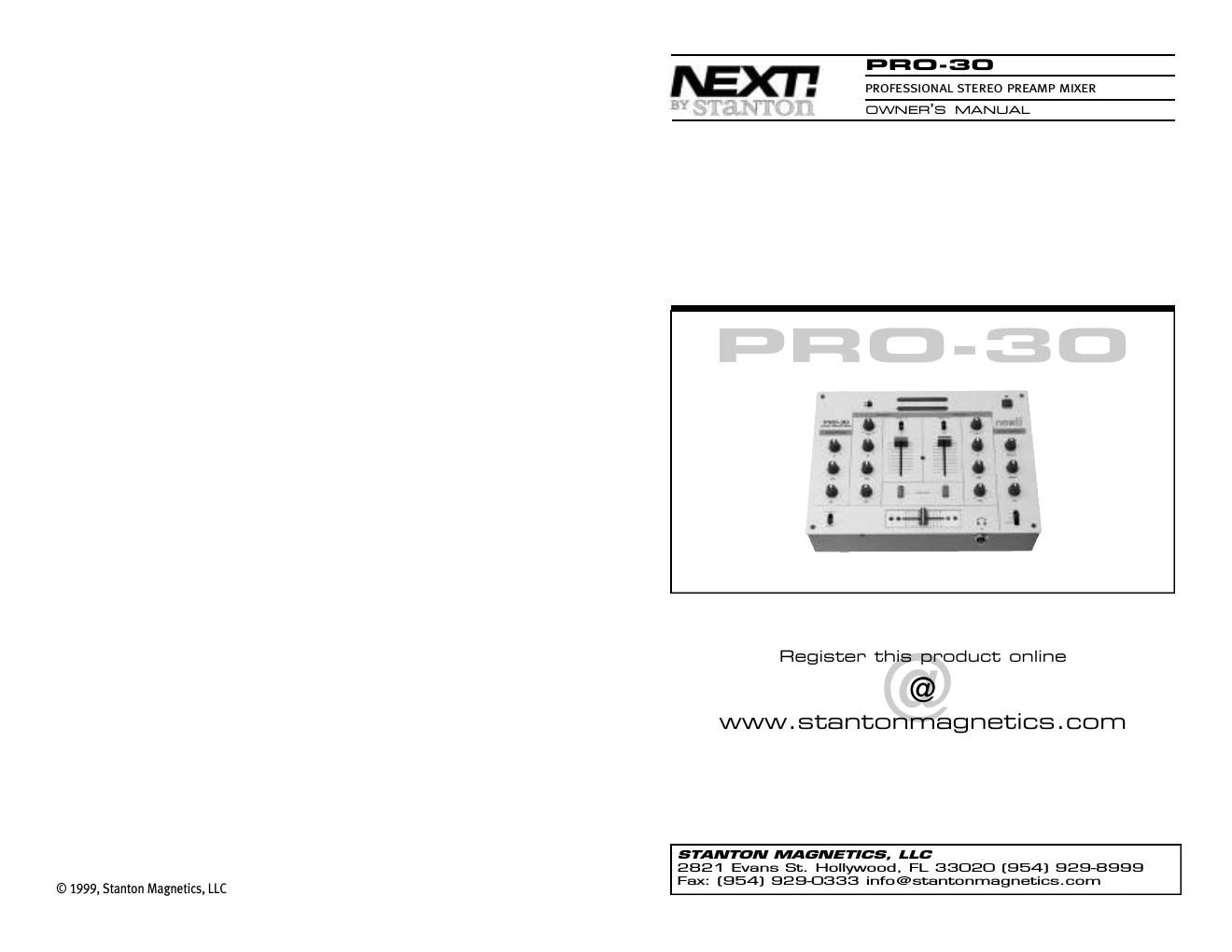

Page 1
PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer ¥When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! ¥ Avoid placing your mixer near heat sources, such as power amplifiers. ¥When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. ¥When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. ¥ To prevent overheating, always provide your mixer with adequate ventilation air space. ¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. ¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. ¥ Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Thank you for making Next! your first choice in professional DJ mixers. This new, innovative family of mixers has been developed with input from the profes- sional DJ community, bringing to the marketplace a previously unavailable, afford- able combination of user-friendly, functional design, rugged construction, and pro- fessional quality features. Next! and your authorized Next! dealer are dedicated to your complete satisfaction by offering benchmark service and support throughout the long life of your Next! product. Again, we appreciate your patronage, and look forward to many years of making music together. Problem Excessive hum when using phono source. Low frequency hum while operating source unit.Cause Poor ground connection. Loose cartridge/headshell connection. Poor AC source ground. Loose input/output connec- tion. Shorted cable.Solution Properly connect turntable ground wire to mixer ground terminal. Check cartridge connection to headshell. Check head- shell connection to tonearm. Properly ground the AC source. Check all input and output connections for s e c u re fit. Isolate and re p l a c e the damaged cable. Pro g ram volume canÕt be adjusted with master vo l u m e c o n t ro l . No powe r.Amplifier or outboard gear connected to the re c o rd out- put. I m p roperly connected AC cord or power line source not onConnect amplifier or outboard gear to master output. Properly connect AC cord to AC power source. Turn powe r o n . The amplifier is turned up, but there is no signal. No signal in headphones.Faulty output connections Improper level adjustment. Improper connection. Improper level or cue mix settings.Properly connect amplifier, or outboard gear to mixer. Properly set crossfader, channel faders, gain con- trols, and input selector tog- gles. Check headphone connec- tion to mixer. Tighten if nec- essary. Adjust headphone level and cue mix to the proper level and channel settings. T RO U B LE S H O OTI N G
Page 2
1. Input selector switches: Selects phono or line inputs of channels 1 and 2 2. Gain control: Controls the input sensitivity of channels 1 and 2 3. Equalizer: Individual controls for low frequency, midrange, and high frequency equalization with (+9/-26 dB) Any changes made to EQ settings will change the overall output level. 4. Channel faders: Control the output level of channels 1 and 2 5. Crossfader: Fades the master output between channels 1 and 2 6. Level meter: Based upon the meter mode selector (7) setting, the level meter displays the master output stereo signal level, or the cue levels of channels 1 and 2D E S C R I P TI O N O F FU N C TI O NS 7. Meter mode selector: Determines the setting of the level meter (6). When pressed, cue levels of channels 1 and 2 are displayed. When released, stereo master output signal is displayed. 8. Power switch: Selects power "ON" or "OFF" 9. Fader Start controls: Activate the Fader Start function when connected to a CD player with fader start capabilities (such as the Next! NCD-7000). When fader start is engaged, the CD player can be started and paused by the crossfader.This function is defeated while crossfader is reversed. 10. Master level control:Controls the overall signal output level of the Master output 11.Booth level control:Controls the overall signal output level of the Boothoutput 12. Cue level control: Controls the overall headphone output level. 13. Cue select: 3 position selector switch dtermines what is heard in the headphones, channel 1, 2, or master output 14. Headphone output: Connection for 1/4 inch headphone. Recommended headphone impedance is 32-200 ohms for maximum volume 15. Mic EQ: Individual controls for low and high frequencies equalization with (+/-12 dB) Any changes made to EQ settings will change the overall microphone output level. 16. Mic volume control: Controls the overall mirophone output level 17. Crossfader Reverse: Reverses the direction of the crossfader.The fader start function is defeated while crossfader is reversed. 18. Microphone input: 1/4Ó connector 19. Ground connector:Connects to the turntable ground connector to eliminate electrical hum. Ground connectors are usually supplied with turntables 20. Phono/CD inputs: Switchable line / phono signal inputs for channels 1 and 2 21. Line inputs: Line signal inputs for channels 1 and 2 22. Phono/CD selector switches: Switches CD/Phono inputs for channels 1 and 2 between line and phono 23. Fader Start output: Connects to the fader start inputs of CD players with fader start function such as the Next! NCD-7000 24. Booth output: Auxiliary output, usually for DJ booth monitoring. Level is controlled by booth level control (11) 25. Master output: Level is controlled by master level control (10) 26. REC output:Record out connects to tape recorder, mini disk recorder, etc. to record performance 27. Voltage selector: Selects between 115V(US) / 230V(EU) 28. Power cord connector: Input connection for the supplied removable power cord.
