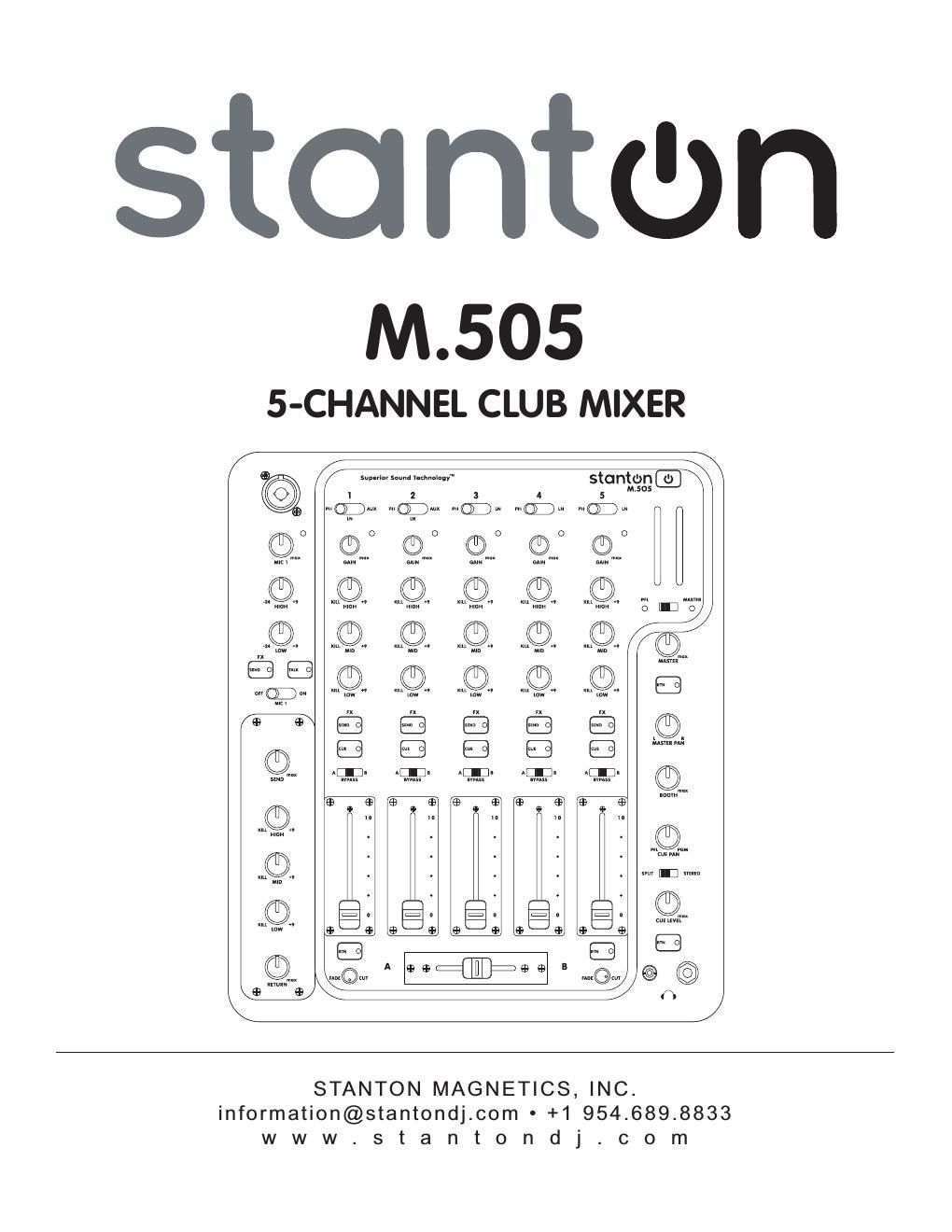

Stanton m 505 owners manual
This is the 12 pages manual for stanton m 505 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton m 505 owners manual (Ocr-read)
Page 1
INTRODUCTION Congratulations and thank you for purchasing the latest addition to the growing Stanton family. Sporting a new attitude, and afresh, modern look, the M.505 is a 5 channel mixer loaded with features and innovations giving club and mobile DJs a complete, powerful, yet simple tool to mix, create, and perform their best. Thoughtfully designed and engineered to give you the most intuitive and instinctual experience possible, the M.505 is packed with features in a logical layout with quali ty components, all at an affordable price. PLEASE READ CAREFULLY BEFORE USE FAILURE TO FOLLOW THE INSTRUCTIONS PRINTED BELOW MAY VOID WARRANTY -Follow all security advice printed on your mixer -When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! -Avoid placing your mixer near heat sources, such as power amplifiers. - When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity. The manufacturer is not responsible for dam age resulting from an impact, or misuse. -When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. -To prevent overheating, always provide your mixer with adequate ventilation air space. -Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. -To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. If possible connect mixer to a surge protector. -Your mixer contains no user serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user servicing or modifications. In addition, the warranty will be void if any unauthorized serv ice by the user is detected. Always return your mixer to an authorized Stanton dealer for servicing. SUPERIOR SOUND TECHNOLOGY Stanton's revolutionary Superior Sound Technology (SST™) also gives the M.505 exceptional sound quality with audio specifications rivaling mixers costing up to four times as much. Developed from the ground up by a team of seasoned audio professionals who have designed world class professional recording studio and broadcast mixers, working hand in hand with experienced and respected DJs, SST™ delivers a dynamic range better than 110 dB through ultra low noise circuitry with a lower total harmonic distortion (THD) than other mixers in its' class. Glass epoxy PC boards, surface mount tech nology, and faders that don't bleed add to the superior construction standards. This equates to a cleaner, more transpar ent sound, allowing your music to be heard the way it was meant to. Were proud to bring you the new look, feel and sound of Stanton.
Page 2
1. Mic 1 Input: Combo connector to plug in XLR or TRS (tip, ring, sleeve) 1/4 microphone cables. 2. Mic 1 Level: Controls the level of the microphone connected to (1) mic 1 Input. 3. Mic 1 EQ: Adjusts the high and low frequencies of the signal coming from mic 1. Note: Any changes made to EQ set tings will affect the overall output level of the microphone. 4. Mic 1 Effect Send: Sends the mic 1 signal to outboard sound processors connected via the Send & Return circuit. 5. Mic 1 Talkover: Attenuates mic 1s level by 20dB. 6. Mic 1 On Off: Turn mic 1ssignal on and off. 7. Effect Send Level: Controls the level of the signal sent to the outboard sound processor via the channel sends (13) or mic 1 send (4). 8. Effect Send EQ: Adjust the high, mid, and low frequencies of the signal sent to the outboard sound processor via the channel sends (13) or mic 1 send (4). Note: Any changes made to EQ settings will affect the overall send level. 9. Effect Return Level: Controls the level of the signal returning from the outboard sound processor. DESCRIPTION OF FEATURES
