Stanton esm 11 owners manual
This is the 4 pages manual for stanton esm 11 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from stanton esm 11 owners manual (Ocr-read)

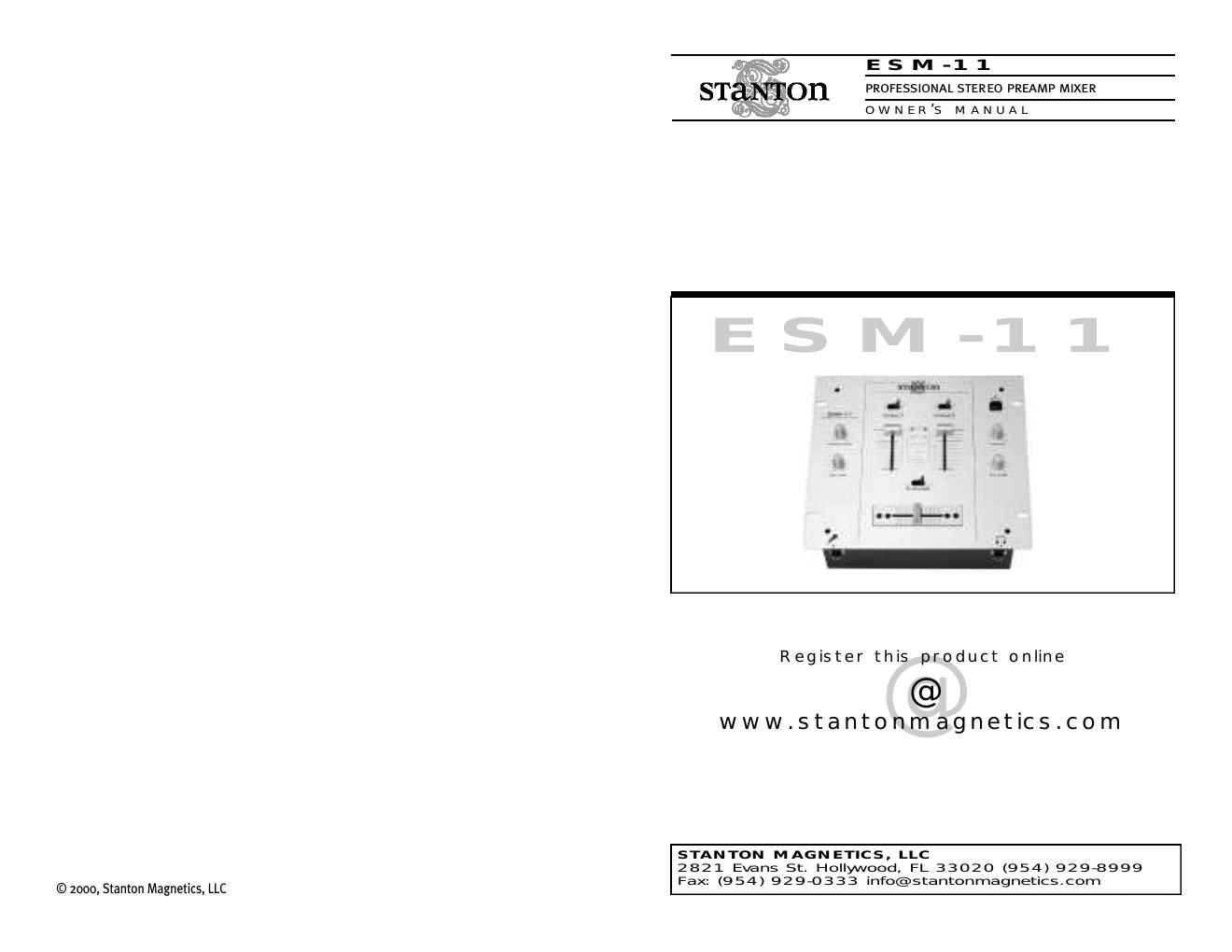

Page 1
PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCTFA I LU R ETO FO LLOWT H EI NST RU C TI O NSP R I N TE DB E LOWM AY VO I DWA R R A N TY¥ Follow all security advice printed on your mixer ¥When removing the unit's AC plug from the power source, grasp and pull the plug, NEVER the cord itself! ¥ Avoid placing your mixer near heat sources, such as power amplifiers. ¥When in use, place your mixer on a stable surface, away from vibration. Always use care when carrying your mixer. Impact, or heavy vibration may compromise the unit's mechanical integrity.The manufacturer is not responsible for damage resulting from an impact, or misuse. ¥When in use, place your mixer away from sources of hum or noise, such as transformers, or electric motors. ¥ To prevent overheating, always provide your mixer with adequate ventilation air space. ¥ Avoid stepping on your mixer's AC cord. Repeated compression of the cord may lead to electrical shorting. ¥ To avoid damage due to AC voltage peaks, always disconnect your mixer from the power source during electrical storms. ¥ Your mixer contains no user-serviceable parts. The manufacturer is not responsible for any damage or personal injury resulting from unauthorized user-servicing or modifications. In addition, the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing.Thank you for making Stanton your first choice in professional DJ mixers. This new, innovative family of mixers has been developed with input from the profes- sional DJ community, bringing to the marketplace a previously unavailable, afford- able combination of user-friendly, functional design, rugged construction, and pro- fessional quality features. Stanton and your authorized Stanton dealer are dedicated to your complete satisfac- tion by offering benchmark service and support throughout the long life of your Stanton product. Again, we appreciate your patronage, and look forward to many years of making music together. Problem Excessive hum when using phono source. Low frequency hum while operating source unit.Cause Poor ground connection. Loose cartridge/headshell connection. Poor AC source ground. Loose input/output connec- tion. Shorted cable.Solution Properly connect turntable ground wire to mixer ground terminal. Check cartridge connection to headshell. Check head- shell connection to tonearm. Properly ground the AC source. Check all input and output connections for s e c u re fit. Isolate and re p l a c e the damaged cable. Pro g ram volume canÕt be adjusted with master vo l u m e c o n t ro l . No powe r.Amplifier or outboard gear connected to the re c o rd out- put. I m p roperly connected AC cord or power line source not onConnect amplifier or outboard gear to master output. Properly connect AC cord to AC power source. Turn powe r o n . The amplifier is turned up, but there is no signal. No signal in headphones.Faulty output connections Improper level adjustment. Improper connection. Improper level or cue mix settings.Properly connect amplifier, or outboard gear to mixer. Properly set crossfader, channel faders, gain con- trols, and input selector tog- gles. Check headphone connec- tion to mixer. Tighten if nec- essary. Adjust headphone level and cue mix to the proper level and channel settings. T RO U B LE S H O OTI N G
Page 2
1. Master level control:Controls the overall signal output level of the Master output 2. Mic volume control: Controls the overall microphone output level 3. Microphone input: 1/4Ó connector 4. Input selector switches: Selects phono or line inputs of channels 1 and 2 5. Channel faders: Control the output level of channels 1 and 2 6. Crossfader Reverse: Reverses the direction of the crossfader 7. Crossfader: Fades the master output between channels 1 and 2 8. Level meter: The level meter displays the master output stereo signal level 9. Power switch: Selects power "ON" or "OFF" 10. Power Indicator: LED indicates whether mixer is ON or OFF. 11. Cue pan: Fades the headphone output between channels 1 and 2, effectively allowing the user to preview a mix. 12. Cue level control: Controls the overall headphone output level. 13. Headphone output: Connection for 1/4 inch headphone. Recommended headphone impedance is 32-200 ohms for maximum volume 14. Ground connector:Connects to the turntable ground connector to eliminate electrical hum. Ground cables are usually supplied with turntables 15. Line inputs: Line signal inputs for channels 1 and 2 16. Phono inputs: Phono signal inputs to connect turntables to channels 1 and 2 17. Master output: Level is controlled by master level control (1) 18. REC output:Record out connects to tape recorder, mini disk recorder, etc. to record performance 19. Power supply connector: Input connection for the accompanying power supply.D E S C R I P TI O N O F FU N C TI O NS
