Spendor sr 5 brochure

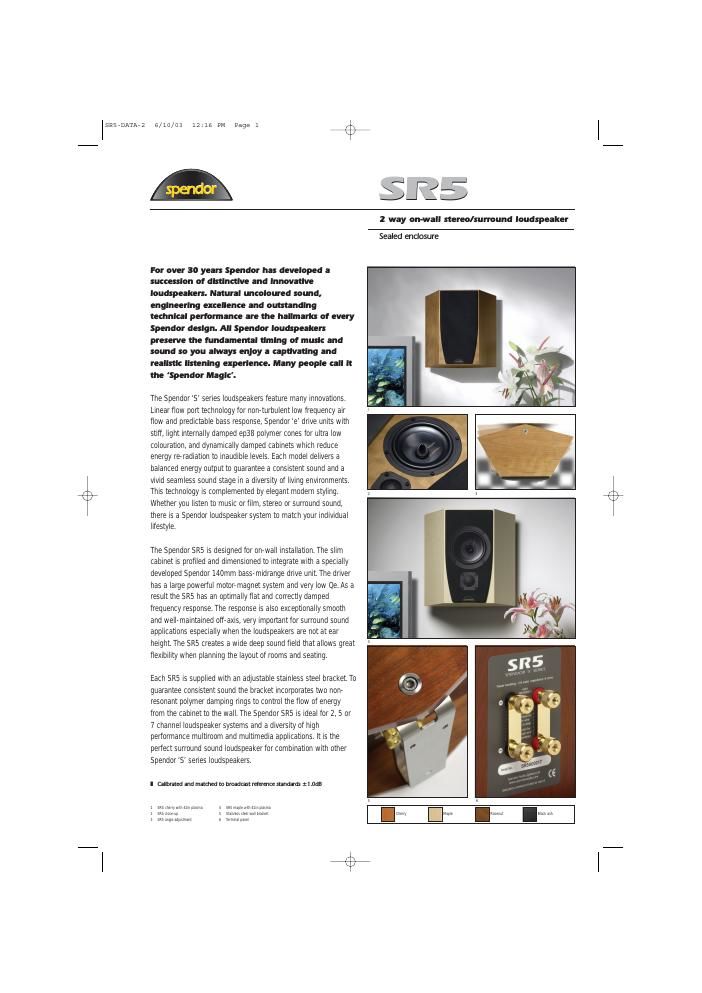

Page 1

SR57DATA72 5/10/03 12:15 PM Pagel $

,4 #4
LEI;

2 way on-wall stereo/surround loudspeaker

Sealed enclosure

For over 30 years Spendor has developed a
succession of distinctive and innovative
loudspeakers. Natural uncoloured sound,
engineering excellence and outstanding
technical performance are the hallmarks of every
Spendor design. All Spendor loudspeakers
preserve the fundamental timing of music and
sound so you always enjoy a captivating and
realistic listening experience. Many people call it
the Spendor Magic.

The Spendor 5' series loudspeakers feature many innovations.
Linear flow port technology for non-turbulent low frequency air
flow and predictable bass response, Spendor e drive units with
stiff, light internally damped ep38 polymer cones for ultra low
colouration, and dynamically damped cabinets which reduce
energy re- radiation to inaudible levels. Each model delivers a
balanced energy output to guarantee a consistent sound and a
vivid seamless sound stage in a diversity of living environments.
This technology is complemented by elegant modern styling.
Whether you listen to music or film, stereo or surround sound,
there is a Spendor loudspeaker system to match your individual
lifestyle.

The Spendor SR5 is designed for on-wall installation. The slim
cabinet is profiled and dimensioned to integrate with a specially
developed Spendor 140mm bass-midrange drive unit. The driver
has a large powerful motor-magnet system and very low Qe. As a
result the SR5 has an optimally flat and correctly damped
frequency response. The response is also exceptionally smooth
and well-maintained off-axis, very important for surround sound
applications especially when the loudspeakers are not at ear
height. The SR5 creates a wide deep sound field that allows great
flexibility when planning the layout of rooms and seating.

Each SR5 is supplied with an adjustable stainless steel bracket. To
guarantee consistent sound the bracket incorporates two non-
resonant polymer damping rings to control the flow of energy
from the cabinet to the wall. The Spendor SR5 is ideal for 2, 5 or
7 channel loudspeaker systems and a diversity of high
performance multiroom and multimedia applications. It is the
perfect surround sound loudspeaker for combination with other
Spendor 5' series loudspeakers.

I Calibrated and matched to broadcast reference standards : l .OdE

1 sksmenywrmzmprasma 4 sxsmapiewrmazrnpiasma
2 SRSLluseup s Stainlesssleelwallhvatket Rosenut Black-ash

3 sksangieaawsrment a Terminalpanel
