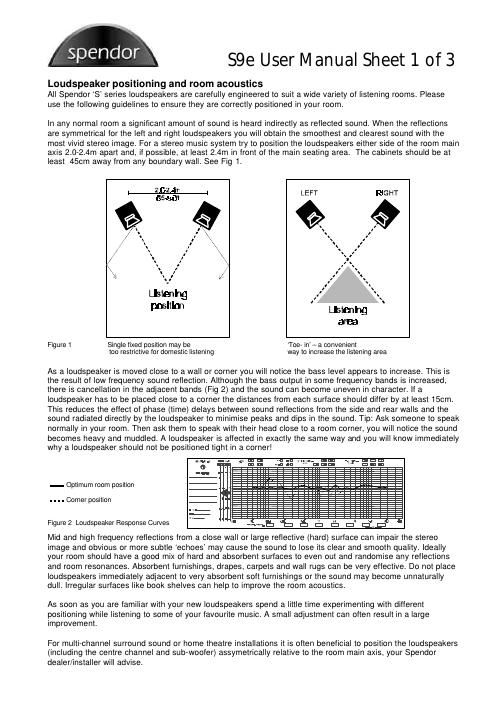

spendor S9e User M anual Sheet 1 of 3

Loudspeaker positioning and room acoustics
All Spendor 8' series loudspeakers are carefully engineered to suit a wide variety of listening rooms. Please
use the following guidelines to ensure they are correctly positioned in your room.

In any normal room a significant amount of sound is heard indirectly as reflected sound. When the reflections
are symmetrical for the left and right loudspeakers you will obtain the smoothest and clearest sound with the
most vivid stereo image. For a stereo music system try to position the loudspeakers either side of the room main
axis 2.0-2.4m apart and, if possible, at least 2.4m in front of the main seating area. The cabinets should be at
least 45cm away from any boundary wall. See Fig 1.

2112M
LEFT RIGHT
6541th
. \ t 1
\ \ I"
\\ \\ "I
s I
l
I s
\ , \
\ I \
\-I '1' s
I' \\
Llstenlng .' x
_ _ : \
Poem Listening
area
Figure 1 Single fixed position may be Toe- in - a convenient
too restrictive for domestic listening way to increase the listening area

As a loudspeaker is moved close to a wall or corner you will notice the bass level appears to increase. This is
the result of low frequency sound reflection. Although the bass output in some frequency bands is increased,
there is cancellation in the adjacent bands (Fig 2) and the sound can become uneven in character. If a
loudspeaker has to be placed close to a corner the distances from each surface should differ by at least 15cm.
This reduces the effect of phase (time) delays between sound reflections from the side and rear walls and the
sound radiated directly by the loudspeaker to minimise peaks and dips in the sound. Tip: Ask someone to speak
normally in your room. Then ask them to speak with their head close to a room corner, you will notice the sound
becomes heavy and muddled. A loudspeaker is affected in exactly the same way and you will know immediately
why a loudspeaker should not be positioned tight in a corner!

.m ...... ._ Elm 43-43 mm. EHII «.w.i:ii:|i:|
' EB nu an -' GEE :Iiziizl

_ Optimum room position

. . . . Corner position

Illtlll

Figure2 Loudspeaker Response Curves --w-.E| r: (:1 (j (in \:|2 |:|:J___|

Mid and high frequency reflections from a close wall or large reflective (hard) surface can impair the stereo
image and obvious or more subtle echoes may cause the sound to lose its clear and smooth quality. Ideally
your room should have a good mix of hard and absorbent surfaces to even out and randomise any reflections
and room resonances. Absorbent furnishings, drapes, carpets and wall rugs can be very effective. Do not place
loudspeakers immediately adjacent to very absorbent soft furnishings or the sound may become unnaturally
dull. Irregular surfaces like book shelves can help to improve the room acoustics.

As soon as you are familiar with your new loudspeakers spend a little time experimenting with different
positioning while listening to some of your favourite music. A small adjustment can often result in a large
improvement.

For multi-channel surround sound or home theatre installations it is often beneficial to position the loudspeakers
(including the centre channel and sub-woofer) assymetrically relative to the room main axis, your Spendor
dealer/installer will advise.
