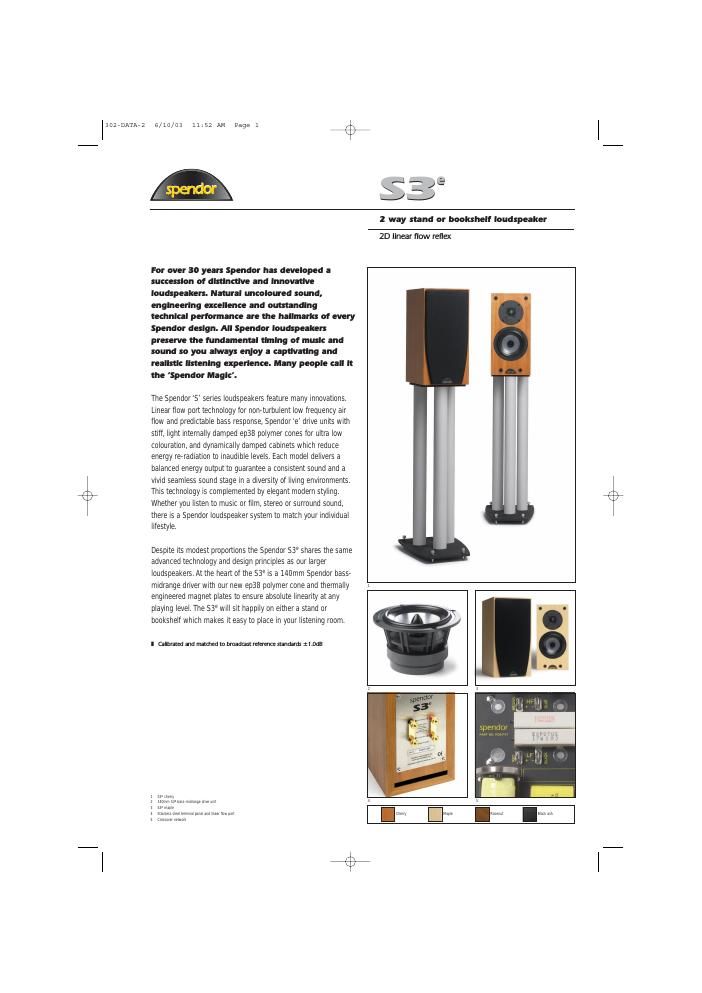

Page 1

3027DATA72 5/10/03 11:52AM Pagel $

\Aflfi
J;

2 way stand or bookshelf loudspeaker

2D linear flow reflex

For over 30 years Spendor has developed a
succession of distinctive and innovative
loudspeakers. Natural uncoloured sound,
engineering excellence and outstanding
technical performance are the hallmarks of every
Spendor design. All Spendor loudspeakers
preserve the fundamental timing of music and
sound so you always enjoy a captivating and
realistic listening experience. Many people call it
the Spendor Magic'.

The Spendor 5 series loudspeakers feature many innovations.
Linear flow port technology for non-turbulent low frequency air
flow and predictable bass response, Spendor 'e' drive units with
stiff, light internally damped ep38 polymer cones for ultra low
colouration, and dynamically damped cabinets which reduce
energy re-radiation to inaudible levels. Each model delivers a
balanced energy output to guarantee a consistent sound and a
vivid seamless sound stage in a diversity of living environmenb.
This technology is complemented by elegant modern styling.
Whether you listen to music or film, stereo or surround sound,
there is a Spendor loudspeaker system to match your individual
lifestyle.

Despite its modest proportions the Spendor S3e shares the same
advanced technology and design principles as our larger
loudspeakers. At the heart of the S3e is a 140mm Spendor bass-
midrange driver with our new ep38 polymer cone and thermally
engineered magnet plates to ensure absolute linearity at any
playing level. The S3e will sit happily on either a stand or
bookshelf which makes it easy to place in your listening room.

I Calibrated and matched to broadcast reference standards I l .OdB

53! many
140mm 51: bass mlflrange drive unit

53! maple

Stainless steel terminal panel and linear lluw pan
Crossover network

Rnsennt - Black ash

Page 2

3027DATA72 5/10/03 11:52AM Page2

<4)a
J;

2 way stand or bookshelf loudspeaker

ZD linear flow reflex

SPENDOR SPECIFICATION 53

Description 2 way stand/bookshelf loudspeaker

Enclosure type Spendor 2D linear flow reflex

Drive unis HF 27mm coated fabric dome, damped vented enclosure
Drive unis LF/MF 140mm ep38 polymer cone

Drive units LF -

Frequency response
Frequency range
Dispersion

Sensitivity for NI @ lm
impedance nominal
impedance minimum
Crossover frequencies
Power handling
Harmonic distortion
Connections

Magnetic shielding
Dimensions H x Wx D
Plinth maximum W x D
Spikes/feet/smnd height
Net weight

Shipping weight

60Hz-20kHz :3dE on reference axis
-6dB at 48HZ

Within 3dE of response on reference axis
Horizontal over 40° arc (:200)

Vertical over 20° arc l: l0°)

86GB

8 ohms

6.8 ohms

4.8kHz

15-125 watts into 8 ohms unclippped
< |% IDOHZ-ZDkHZ 90dE @ lm

2/3 way gold plated oi-wirable terminals
All drive units shielded

340 X I65 X 260mm |l3.4 X 6.5 X l0.2in]
500-600mm l20-Z4inl stand not supplied
8.5kg (18.7ini

l7.9kg pair [39.510 pair]

Accessories supplied -
Cabinet real wood veneer finishes Cherry, Maple, Rosenut, Black ash

is

2 way stand mounted loudspeaker 60H1-ZOKH2 -6dB at 48H: 125 watts 340 x 165 x 260mm
2.5 way floor standing loudspeaker 52Hz-20kHz -6dB at 40Hz 200 watts 790 x 165 x 264mm
56 2 way floor standing loudspeaker 48Hz-20kHz -6dB at 36Hz 250 watts 875 x 192 x 300mm
58 2 way floor standing loudspeaker 44Hz-ZOkHz -6dB at 32Hz 300 watts 925 x 226 x 320mm
l
S9e 3 way floor standing loudspeaker 40Hz-20kHz -6dB at 28Hz 350 watts lDOS x 242 x 380mm
l
SR5 2 way on-wall stereo/surround loudspeaker 90Hz-20kHz -6dB at 70Hz 125 watts 309 x 31 l x l76mm
CS 2 way centre channel loudspeaker 70Hz-20kHz -6dB at SSHZ 150 watts l56 x 480 x Z70mm
C9e 3 way centre channel loudspeaker 40Hz-20kHz -6dB at 30Hz 250 watts 230 x 600 x 360mm
