Extracted text from sony zs x 10 service manual (Ocr-read)

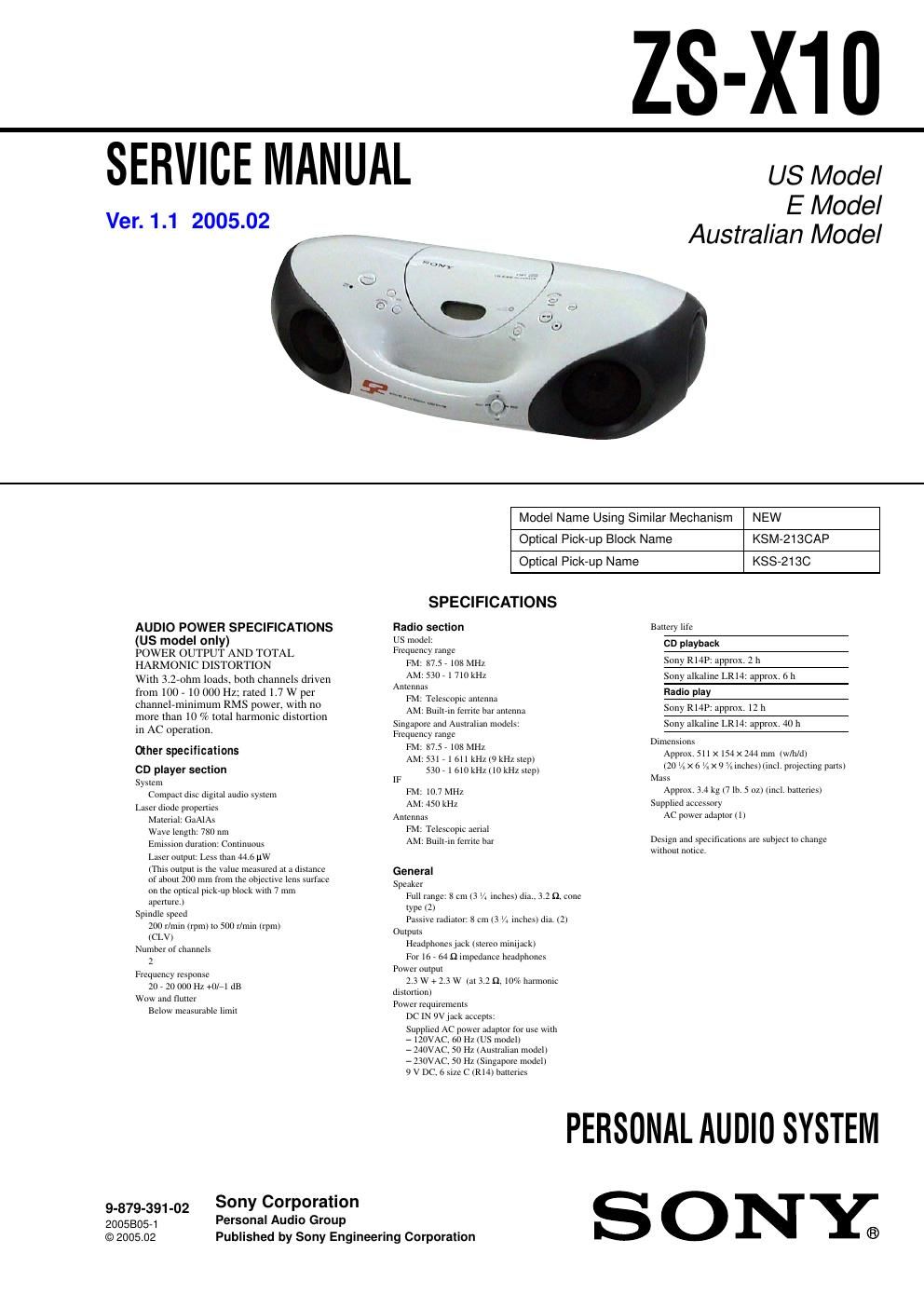

Page 1
ZS-X10 2 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 3 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Cabinet (Lower) ............................................................... 7 3-3. Main Chassis Section ...................................................... 7 3-4. AUDIO Board, BATTERY Board ................................... 8 3-5. TUNER Board, CONTROL Board ................................. 8 3-6. CD Block Section ............................................................ 9 3-7. CD Lid Sub Assy ............................................................. 9 3-8. Cabinet Front (L)/(R) Assy .............................................. 10 3-9. Cabinet Front (L) Sub Assy ............................................. 10 3-10. Cabinet Front (R) Sub Assy ............................................. 11 3-11. Optical Pick-up (KSS-213C) ........................................... 11 4. TEST MODE .............................................................. 12 5. ELECTRICAL ADJUSTMENTS TUNER Section ............................................................... 13 CD Section ...................................................................... 15 6. DIAGRAMS 6-1. Block Diagram – CD SERVO Section – ........................ 16 6-2. Block Diagram – TUNER Section – .............................. 17 6-3. Block Diagram – MAIN Section – ................................. 18 6-4. Printed Wiring Board – CD Section – ............................ 20 6-5. Schematic Diagram – CD Section – ............................... 21 6-6. Printed Wiring Board – TU Section – ............................ 22 6-7. Schematic Diagram – TU Section – ............................... 23 6-8. Printed Wiring Board – CONTROL Section – ............... 24 6-9. Schematic Diagram – CONTROL Section – .................. 25 6-10. Printed Wiring Boards – PANEL Section – .................... 26 6-11. Schematic Diagram – PANEL Section – ........................ 27 6-12. Printed Wiring Boards – AUDIO Section – .................... 28 6-13. Schematic Diagram – AUDIO Section – ........................ 29 7. EXPLODED VIEWS 7-1. Cabinet (Lower) Section .................................................. 34 7-2. CD Lid Section ................................................................ 35 7-3. Cabinet Front Section ...................................................... 36 7-4. Cabinet (Upper) Section .................................................. 37 7-5. Main Chassis Section ...................................................... 38 7-6. CD Block Section ............................................................ 39 7-7. Optical Pick-up Section (KSM-213CAP) ....................... 40 8. ELECTRICAL PARTS LIST ................................ 41 Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. About CD-Rs/CD-RWsThis player can play CD-Rs/CD-RWs recorded in the CD-DA format*, but playback capability may vary depending on the quality of the disc and the condition of the recording device. *CD-DA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for Audio CDs. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1.A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmete r (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Page 2
3 ZS-X10 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNITLASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following checking method for the laser diode is operable. -Method Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig.1. Note:Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the u button. 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. In this operation, the object lens will move up and down 2 times along with inward motion for the focus search. Fig.1 Method to push the S801 S801 On power sources-For AC operation, use the supplied AC power adaptor; do not use any other type. -The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off. -Unplug the player from the wall outlet when it is not to be used for an extended period of time. -For battery operation, use six size C (R14) batteries. -When the batteries are not to be used, remove them to avoid damage that can be caused by battery leakage or corrosion. -The nameplate indicating operating voltage, etc. is located at the bottom. Polarity of the plug
