Sony zs sn 10 service manual
This is the 50 pages manual for sony zs sn 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony zs sn 10 service manual (Ocr-read)
Page 1

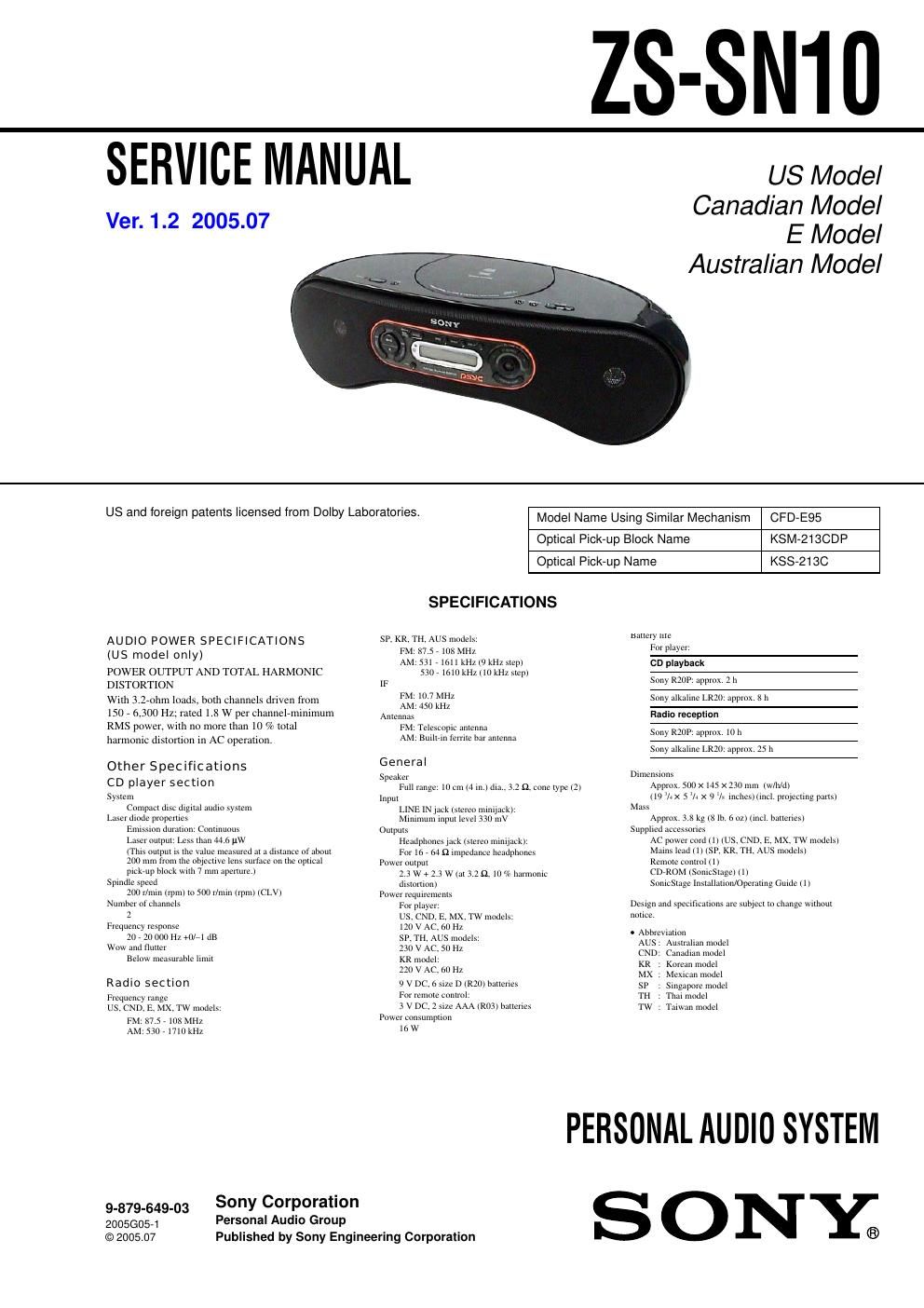

ZS-SN10 2 Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1.A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmete r (0.75 V) To Exposed Metal Parts on Set Earth Ground ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Cabinet Top Assy ............................................................. 6 3-3. MAIN Board .................................................................... 7 3-4. Cabinet Front Assy .......................................................... 7 3-5. LCD Board ...................................................................... 8 3-6. CD Block Assy ................................................................ 8 3-7. Optical Pick-up (KSS-213C) ........................................... 9 3-8. CD Lid ............................................................................. 9 4. ELECTRICAL ADJUSTMENTS .......................... 10 5. DIAGRAMS 5-1. Block Diagram – CD Servo Section – ............................ 12 5-2. Block Diagram – TUNER Section – .............................. 13 5-3. Block Diagram – MAIN Section – ................................ 14 5-4. Printed Wiring Board – CD Board – .............................. 16 5-5. Schematic Diagram – CD Board – ................................. 17 5-6. Printed Wiring Board – TUNER Board – ....................... 18 5-7. Schematic Diagram – TUNER Board – ......................... 19 5-8. Printed Wiring Boards – MAIN Section – ..................... 20 5-9. Printed Wiring Boards – POWER Section – .................. 21 5-10. Schematic Diagram – MAIN Section (1/2) – ................. 22 5-11. Schematic Diagram – MAIN Section (2/2) – ................. 23 5-12. Printed Wiring Boards – PANEL Section – .................... 24 5-13. Schematic Diagram – PANEL Section – ........................ 25 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................ 33 6-2. Cabinet Front Section ...................................................... 34 6-3. Cabinet Top Section-1 ..................................................... 35 6-4. Cabinet Top Section-2 ..................................................... 36 6-5. Cabinet Bottom Section ................................................... 37 6-6. Optical Pick-up Section (KSM-213CDP) ....................... 38 7. ELECTRICAL PARTS LIST .................................. 39
Page 2
3 ZS-SN10 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNITLASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following checking method for the laser diode is operable. -Method Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig.1. Note:Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the u button. 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. In this operation, the object lens will move up and down 2 times along with inward motion for the focus search. Fig.1 Method to push the S801 S801
