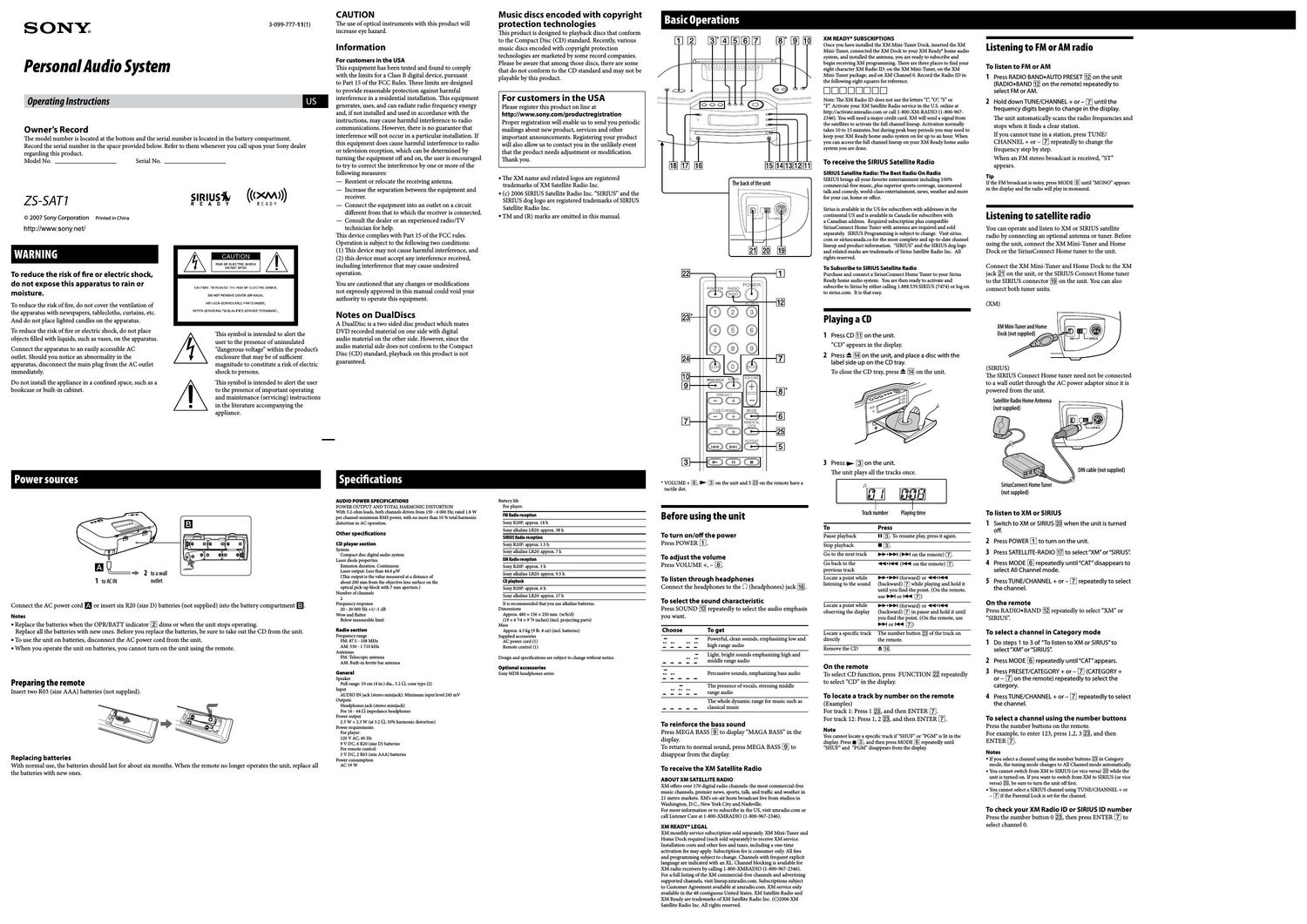

Page 1

3-099-777-11(l)

SONYs

Personal Audio System

Operating Instructions

Owners Record

The model number is located at the bottom and the serial number is located in the battery compartment.
Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.

Model No. Serial No.

(((>

READV

ZS-SATI é'B'lSﬂé

2007 Sony Corporation
http://www.sony.net/

To reduce the risk ofﬁre or electric shock,
do not expose this apparatus to rain or
moisture.

Printed in China

CAUTION

CAUTION ro REDUCE rwr Risk of rtrcrwc SHOCK
Do NOT REMOVE COVER (on BACKI

To reduce the risk of ﬁre, do not cover the ventilation of No USER'SENCEABLE mm

the apparatus with newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the apparatus.

RErER scevrowc To QUALIFIED scevroc erasonnct

A
&

To reduce the risk of fire or electric shock, do not place

Th' b1"tddt1rtth
objects ﬁlled with liquids, such as vases, on the apparatus. is sym O is m en e O a e e

user to the presence of uninsulated
"dangerous voltage within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

Connect the apparatus to an easily accessible AC

outlet. Should you notice an abnormality in the
apparatus, disconnect the main plug from the AC outlet
immediately.

Do not install the appliance in a conﬁned space, such as a
bookcase or built-in cabinet.

This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.

L» 2 toawall

1 to AC IN outlet

Connect the AC power cord or insert six R20 (size D) batteries (not supplied) into the battery compartment E.

Notes
- Replace the batteries when the OPR/BATT indicator )2 dims or when the unit stops operating.
Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the unit.
I To use the unit on batteries, disconnect the AC power cord from the unit.
- When you operate the unit on batteries, you cannot turn on the unit using the remote.

Preparing the remote
Insert two R03 (size AAA) batteries (not supplied).

Replacing batteries
With normal use, the batteries should last for about six months. When the remote no longer operates the unit, replace all
the batteries with new ones.

CAUTION

The use of optical instruments with this product will
increase eye hazard.

Information

For customers in the USA

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:

7 Reorient or relocate the receiving antenna.

7 Increase the separation between the equipment and
receiver.

7 Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

7 Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.

Notes on DualDiscs

A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact
Disc (CD) standard, playback on this product is not
guaranteed.

AuDIo POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

with 3.2-ohm loads, both channels driven from 150 . s 000 Hz rated 1.8 w
per channel-minimum RMS power, with no more than 10 in total harmonic
distortion in AC operation.

Other speciﬁcations

co player section
System
Compact disc digital audio system
rater diode properties
Emission duration Continuous
Laser output: Less than 44.5 pw
(This output is the value measured at a distance oi
about zoo nim {com the obyective lens surtace on the
optical pick-up block with 7 mm aperture )
Number of channels
2
Frequency response
20 - 20 000 Hz +1/-1dB
WOW and flutter
Below measurable limit

Radio section
Frequency range
FM: 87.5 - 108 MHz
AM: 530 .1710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna

General
speaker

Full range: 10 cm (4 in.) dia., 3.2 52, cone type (2)
Input

AuDio IN jack (stereo minijack): Minimum input level 245 mv
Outputs

Headphones jack (stereo miniiack)

For is - so t2 impedance headphones
Power output

2.3 w + 2.3 w (at 3.2 :2, 10% harmonic distortion)
Power requirements

For player:

120 v AC, on Hz

9 v Dc, 5 R20 (size D) batteries

For remote control:

3 v DC, 2 R03 (size AAA) batteries
Power consumption

Ac 19 w

Music discs encoded with copyright
protection technologies

This product is designed to playback discs that conform
to the Compact Disc (CD) standard. Recently, various
music discs encoded with copyright protection
technologies are marketed by some record companies.
Please be aware that among those discs, there are some
that do not conform to the CD standard and may not be
playable by this product.

For customers in the USA

Please register this product on line at
http://www.sony.comlproductregistration
Proper registration will enable us to send you periodic
mailings about new product, services and other
important announcements. Registering your product
will also allow us to contact you in the unlikely event
that the product needs adjustment or modiﬁcation.
Thank you.

- The XM name and related logos are registered
trademarks of XM Satellite Radio Inc.

I (c) 2006 SIRIUS Satellite Radio Inc. SIRIUS" and the
SIRIUS dog logo are registered trademarks of SIRIUS
Satellite Radio Inc.

- TM and (R) marks are omitted in this manual.

Battery lire
For player:

in Radio reception

Sony RZOP: approx. 18 h

Sony alkaline LRZO: approx, 33 h

SIRIUS Radio reception

Sony RZOP: approx. 1.5 h

Sony alkaline LRZO: approx, 7 h

XM Radio reception

Sony RZOP: approx. 3 h

Sony alkaline LRzo: approx, 9.5 h

to playback

Sony RZOP: approx. 6 h

Sony alkaline LRzo: approx, l7 h

it is recommended that you use alkaline batteries.
Dimensions

Approx. 430 x 156 x 250 mm (w/h/d)

(19 X s M x 9 7/: inches) (incl, projecting parts)
Mass

Approx. 4.3 kg (9 lb. 3 oz) (incl. batteries)
Supplied accessories

Ac power cord (1)

Remote control (1)

Design and speciﬁcations are subyect to change without notice.

Optional accessories
Sony MDR headphones series

I? EIEEEE BEEF]
D (7.1 . ,
k ,
in

awe

mnF

may it

t VOLUME + I. > on the unit and 5 on the remote have a
tactile dot.

Before using the unit

To turn on/off the power
Press POWER

To adjust the volume
Press VOLUME +, 7 I.

To listen through headphones
Connect the headphones to the Q (headphones) jack I.

To select the sound characteristic

Press SOUND repeatedly to select the audio emphasis
you want.
Choose To get

- Powerful, clean sounds. emphasizing low and
high range audio

Light, bright sounds emphasizing high and
middle range audio

.. .. Percussive sounds, emphasizing bass audio

- The presence ofvocals, stressing middle
range audio

The whole dynamic range for music such as
classical music

To reinforce the bass sound

Press MEGA BASS El to display MAGA BASS" in the
display.

To return to normal sound, press MEGA BASS @ to
disappear from the display.

To receive the XM Satellite Radio

ABOUT XM SATELLITE RADIO

XM offers over 170 digital radio channels: the most commerciaHree
music channels, premier news, sports, talk. and trafﬁc and weather in
21 metro markets. we on7air hosts broadcast live from studios in
Washington, D.C., New York City and Nashville.

For more information or to subscribe in the Us, visit xmradio.corn or
call Listener Care at 178007XMRADIO (17800796772346).

XM READY LEGAL

XM monthly service subscription sold separately. XM Mini7Tuner and
Home Dock required (each sold separately) to receive XM service.
installation costs and other fees and taxes, including a onetime
activation fee may apply. Subscription fee is consumer only. All fees
and programming subyect to change. Channels with frequent explicit
language are indicated with an XL. Channel blocking is available tor
XM radio receivers by calling 178007XMRADIO (17800796772346).
For a full listing oi the XM commercial7free channels and advertising
supported channels, visit lineupxmradiocom. Subscriptions sub)ect
to Customer Agreement available at xmradio.com. XM service only
available in the 45 contiguous United States. XM Satellite Radio and
XM Ready are trademarks ofXM Satellite Radio inc. (Q2005 XM
Satellite Radio Inc. All rights reserved.

XM READY SUBSCRIPTIONS

Once you have installed the XM Mini7Tuner Dock, inserted the XM
Mini7Tuner, connected the XM Dock to your XM Ready home audio
system, and installed the antenna, you are ready to subscribe and
begin receivrng XM programming. There are three places to ﬁnd your
eight character XM Radio ID: on the XM Mim7Tuner, on the XM
Mini7'luner package, and on XM Channel 0. Record the Radio ID in
the following eight squares for reference.

DDDDDDDD

Note: The XM Radio ID does not use the letters I, "0', S" or

F. Activate your XM Satellite Radio service in the Us. online at
http://activate.xmradio.com or call 178007XM7RADIO (1780079677
2346). You will need a ma)or credit card. XM will send a signal irom
the satellites to activate the full channel lineup. Activation normally
takes 10 to 15 minutes, but during peak busy periods you may need to
keep your XM Ready home audio system on for up to an hour. When
you can access the full channel lineup on your XM Ready home audio
system you are done.

To receive the SIRIUS Satellite Radio

SIRIUS Satellite Radi The Best Radio On Radio

SIRIUS brings all your favorite entertainment including 100%
commerciaHree music, plus superior sports coverage, uncensored
talk and comedy, world7class entertainment, news, weather and more
for your car, home or ofﬁce.

Sirius is available in the US for subscribers with addresses in the
continental US and is available in Canada for subscribers with

a Canadian address. Required subscription plus compatible
SiriusConnect Home Tuner with antenna are required and sold
separately. SIRIUS Programming is subject to change. Visit Sirius.
com or sinuscanada.ca for the most complete and up7to7date channel
lineup and product information. SIRIUS and the SIRIUS dog logo
and related marks are trademarks of Sirius Satellite Radio Inc. All
rights reserved.

To Subscribe to SIRIUS Satellite Radio

Purchase and connect a SiriusConnect Home Tuner to your Sirius
Ready home audio system. You are then ready to activate and
subscribe to Sirius by either calling 1.888.539.51RIUS (7474) or log on
to Siriuscom. It is that easy.

Playing a (D
1 Press CD on the unit.
CD" appears in the display.

2 Press A on the unit, and place a disc with the
label side up on the CD tray.

To close the CD tray, press 2 on the unit.

3 Press > IE on the unit.
The unit plays all the tracks once.

IW-IVI '
t I II";
. | .
Track number Playing time

To Press
Pause playback . To resume play, press it again.
Stop playback I @-
Go to the next track »-»I (M on the remote)
Go back to the «-I44 (144 on the remote) I.

previous track

Locate a point while
listening to the sound

»-»I (forward) or «444
(backward) while playing and hold it
until you ﬁnd the point. (0n the remote,
use >>l or 144 I)

»-»i (forward) or «-l44

Locate a point while

observing the display (backward) in pause and hold it until
you find the point. (On the remote, use
I)
Locate a speciﬁc track The number button E5) of the track on
directly the remote.
Remove the CD

On the remote
To select CD function, press FUNCTION
to select "CD" in the display.

repeatedly

To locate a track by number on the remote
(Examples)

For track 1: Press 1
For track 12: Press 1, 2

and then ENTER

Note

You cannot locate a speciﬁc track ifSHUF or PGM' is lit in the
display. Press I and then press MODE @ repeatedly until
SHUF and P M disappears from the display.

Listening to PM or AM radio

To listen to FM or AM

1 Press RADIO BAND-AUTO PRESET on the unit
(RADIO-BAND @ on the remote) repeatedly to
select FM or AM.

2 Hold downTUNE/CHANNEL+or- untilthe
frequency digits begin to change in the display.
The unit automatically scans the radio frequencies and
stops when it ﬁnds a clear station.
If you cannot tune in a station, press TUNE/
CHANNEL + or 7 7 repeatedly to change the
frequency step by step.
When an FM stereo broadcast is received, ST
appears.

Tip
If the FM broadcast is noisy, press MODE E until MONO" appears
in the display and the radio will play in monaural.

Listening to satel I e radio

You can operate and listen to XM or SIRIUS satellite
radio by connecting an optional antenna or tuner. Before
using the unit, connect the XM Mini-Tuner and Home
Dock or the SiriusConnect Home tuner to the unit.

Connect the XM Mini-Tuner and Home Dock to the XM
jack E on the unit, or the SIRIUS Connect Home tuner
to the SIRIUS connector on the unit. You can also
connect both tuner units.

(XM)

XM Mini-Iunerand Home
Dork (not supplied)

or SIRIUS

(SIRIUS)

The SIRIUS Connect Home tuner need not be connected
to a wall outlet through the AC power adaptor since it is
powered from the unit.

Satellite Radio Home Antenna
(not supplied)

DIN (able (not supplied)

SiriusConnett HomeIunel
(not supplied)

To listen to XM or SIRIUS

1 Switch to XM or SIRIUS
off.

Press POWER
Press SATELLITE-RADIO to select"XM"orS|R|US[

Press MODE El repeatedly until"CATdisappears to
select All Channel mode.

5 Press TUNE/CHANNEL + or - repeatedly to select
the channel.

when the unit is turned

On the remote
Press RADIO-BAND repeatedly to select XM or
uSIRIUS.

To select a channel in Category mode

1 Do Stepsl to 3 of To listen to XM or SIRIUSto
select XM or"SlR|USI
Press MODE @ repeatedly until"CATappearS.

Press PRESET/CATEGORY + or -
on the remote) repeatedly to select the
category.

4 Press TUNE/CHANNEL + or - repeatedly to select
the channel.

To select a channel using the number buttons
Press the number buttons on the remote.

For example, to enter 123, press 1,2, 3 I, and then
ENTER

Notes

- If you select a channel using the number buttons in Category
mode, the tuning mode changes to All Channel mode automatically.

- You cannot SWitch from XM to SIRIUS (or vice versa) while the
unit is turned on. If you want to switch from XM to SIRIUS (or vice
versa) I, be sure to turn the unit on ﬁrst.

- You cannot select a SIRIUS channel using TUNE/CHANNEL + or
7 if the Parental Lock is set for the channel.

ID or SIRIUS ID nu ber
, then press ENTER

To check your XM Radi
Press the number button 0
select channel 0.

Page 2

Other Operations

Using the display

You can check information about the CD using the
display.

To check the total track number and
' me of the (D

PIaVI 9
Press I to stop the CD playback.

Iotal tratlt number
Iotal playing time

To check the remaining time
Press DISPLAY El on the unit while playing a CD. The
display changes as follows:

The current track number and playing time

The current track number and the remaining
time of the current track

The number of tracks left and the time
remaining on the CD

, For a track whose number is more than 20, the remaining time
appears as - » : - -" in the display.

Playing tracks repeatedly
(Repeat Play)

You can play tracks repeatedly in normal, Shufﬂe or
Program play modes,

1 Press CD I,
CD appears in the display.

2 Proceed as follows,

To repeat Do this
A single track l Press REPEAT @ until G 1" appears.

2 Press «#44 or »->>l (H4 or>>l on
the remote) to select the track that you want
to repeat.

3 Press > I.

All tracks on 1 Press REPEAT @ repeatedly until 3"

the co appears.
2 Press > .-
Tracks in 1 Press MODE (El repeatedly until SHUF

random order appears, and then press REPEAT E to show

t;
2 Press > .-
Programed Press MODE @ repeatedly until PGM

tracks appears, and then press REPEAT E to show
«3,.
2 Program tracks (see step 3 of Creating your
own program").
3 Press > I.

0n the remote
- To select the CD function, press FUNCTION
repeatedly until CD appears in the display.

ITo select the track number, press the number buttons
and then ENTER I.

To cancel Repeat Play
Press REPEAT until 1 disappears from the display.

Playing tracks in random order (Shufﬂe

Play)

You can play tracks in random order.

1 Press CD
CD appears in the display

2 Press MODE El repeatedly until SHUFappears in
the display,

3 Press > IE to start Shufﬂe Play.

0n the remote
To select the CD function, press FUNCTION
repeatedly until CD appears in the display.

To cancel Shufﬂe Play

Stop playing ﬁrst. Then press MODE E repeatedly until
SHUF disappears from the display.

Tip

During Shufﬂe Play, you cannot select the previous track by pressing
«-I<< (m on the remote) I.

Creating your own program (Program

Play)

You can arrange the playing order of up to 20 tracks on

a CD.

1 Press CD ﬂ.
CD appears in the display.

2 Press MODE IE repeatedly untilPGMﬂashes in the
display,

3 Press « I44 or »I>>| (K4 orb»! on the
remote) then press ENTER for the tracks you
want to program in the order you want.

' t / =..l:
|
Programed track number
Playing order
4 Press > to start Program Play.

0n the remote

I To select the CD function, press FUNCTION IE
repeatedly until CD" appears in the display.

I After you have selected PGM, press the number
buttons for the tracks you want to program in the
order you want, and then ENTER

To cancel Program Play
Stop playing first. Then press MODE IE repeatedly until
PGM disappears from the display.

To delete the last track of the program
Press CLEAR on the remote while the player is
stopped.

To check the order of tracks before play
Press ENTER I.

Every time you press the button, the track number
appears in the programed order.

To change the current program

Press I once if the CD is stopped and twice if the
CD is playing. The current program will be erased.
Then create a new program following the programing
procedure.

Tips

. if you try to program 21 tracks or more, FULL will appear in the
display.

- You can play the same program again, since the program is saved
until you open the CD tray or turn oﬁ the power of the unit.

Presetting PM or AM radio stations

You can store radio stations into the units memory. You
can preset up to 30 radio stations, 20 for FM and 10 for
AM in any order.

1 Press RADIO BANDcAUTO PRESET IE on the unit to
select the band.

2 Hold down RADIO BAND°AUTO PRESET @ on the
unit for 2 seconds until lAUTOﬂashes in the display,

3 Press ENTER whileAUTO"ﬂashes in the display.

The stations are stored in memory from the lower
frequencies to the higher ones.

If a station cannot be preset automatically
You need to preset a station with a weak signal manually.

1 Press RADIO BAND-AUTO PRESET IE on the unit to
select the band.

2 Tune in a station you want,

3 Hold down ENTER on the unit for 2 seconds until
the preset number ﬂashes in the display.

4 Press PRESET/CATEGORY + or- on the unit until
the preset number you want for the station ﬂashes
in the display.

5 Press ENTER
The new station replaces the old one.

on the unit.

0n the remote

1 Press RADIO-BAND repeatedly until the band
you want appears in the display.

2 Tune in a station you want,

3 Hold down the number buttons @l that you want to
preset the new station on for about 2 seconds.
To select a one~digit preset number, hold down the
number for about 2 seconds.
To select a two-digit preset number, press the ﬁrst
digit, and then hold down the second digit for about
2 seconds.
(Examples)
For preset numberl: Hold down
seconds,
For preset number 12: Press 1 IE, and then hold down
2 IE for about 2 seconds.

Tip
The preset radio stations remain in memory even if you unplug the
AC power cord or remove the batteries.

Playing preset PM or AM radio

stations

1 Press RADIO BAND-AUTO PRESET @ on the unit to
select the band.

2 Press PRESET/CATEGORY + or - on the unit
(PRESET + or - on the remote) to tune in the
stored station.

0n the remote

1 Press RADIO-BAND IE

2 Press the number buttons IE, and then press ENTER
to tune in the stored station.

(Examples)
For preset number 1: Press
For preset number 12: Press 1, 2 I, and then ENTER

Presetting satellite radio channels
You can preset up to 20 XM and 20 SIRIUS channels.

1 Do steps I to 5 of To listen to XM or S|R|US"to
select the channel you want to preset.

2 Hold down ENTER for 2 seconds or more.
The preset number I" (default setting) ﬂashes if it
is the ﬁrst time to do the procedure, or the preset
number immediately following the last preset number
added.

3 Press PRESET/CATEGORY (PRESET + or a on
the remote) repeatedly to select your desired preset
number.

4 Press ENTER I.

Note
You cannot preset XM or SIRIUS channels except when you reserve
the channel.

Playing preset satellite radio

channels

1 Do stepsl to 4 of "To listen to XM or SIRIUS"to
select the channel you want to preset,

2 Press PRESET/CATEGORY + or - (PRESET + or -
on the remote) repeatedly to select your desired
preset channel in All Channel mode,

To View XMISIRIUS information
Each time you press DISPLAY IE on the unit, the display
will change as follows;

CH NAME"

Preset number/Channel number (for 4 seconds)

Channel name

Artist name

J1 Song title
CAT" Category name

* in the case of SIRIUS, the name of the composer is shown with
artist name.

Restricting access to speciﬁc
channels (SIRIUS only)

Parental Lock

You can restrict access to certain channels using

your own password, The password is set to 0000

as the default. Change the password before you use

this function for the ﬁrst time (see To change the

passwor ").

1 While the SIRIUS channel you want to lock is
selected, press PARENTAL LOCK IE on the remote,
LOCK ﬂashes in the display.

2 Press ENTER I.

ENTERCODE appears in the display.

3 Enter a 4-digit password using the number buttons

on the remote,

COMPLETE appears in the display. If INVALID

appears, repeat steps I to 3.

To delete the number you have entered
Press CLEAR on the remote repeatedly.

To change the password
1 While the SIRIUS channel is selected, press

PARENTAL LOCK on the remote repeatedly until
lEDIT CODE"ﬂashes in the display.

2 Press ENTER I,
OLD CODE appears in the display.

3 Enter the current 4-digit password using the
number buttons on the remote.
NEW CODE appears in the display.

4 Enter a new 4-digit password using the number
buttons IE on the remote,
CONFIRM" appears in the display.

5 Re-enter the new password to conﬁrm it.

COMPLETE" appears in the display If INVALID"
appears, repeat steps 1 to 5.

To listen to the locked channels

1 Select a locked channels you want to listen to using
the number buttons IE on the remote,

ENTERCODE appears in the display.

2 Enter your 4-digit password using the number
buttons IE on the remote,

The channel is tuned in.

To unlock a channel

1 While the SIRIUS channel you want to unlock is
selected, press PARENTAL LOCK on the remote
repeatedly untilUNLOCKﬂashes in the display.

2 Press ENTER I,
COMPLETE" appears in the display

Notes

. When you select a channel using TUNE/CHANNEL + or 7
channel mode or Category mode, locked channels are skipped

- The display will return to the original indication ifyou press I
or if no entry is made for a set period of time after you have been
prompted to enter the password.

. When the unit is reset to the factory settings, the Parental Lock
password returns to the default (0000"), but Parental Lock settings
are not removed.

. You cannot preset locked channels.

e if you set the Parental Lock for a preset channel, the preset
information for that channel returns to the default.

. You cannot set the Parental Lock for channels 0 or 184.

Falling asleep to music

Play the music source you want.
2 Press SLEEP on the unit to displaySLEER"

Press SLEEP on the unit to select the minutes
until the unit goes off automatically.

Each time you press the button, the indication changes
as follows:

AUTO - 60MIN -* "30MIN" - 20MIN ->
l OMIN - OFF".

' when you select AUTO, the CD stops playing in 90 minutes at

most and the unit goes off automatically. When you are listemng
to the radio, the radio goes off in 90 minutes.

If 4 seconds have passed after you pressed SLEEP I,
the minutes in the display are entered.

When the preset time has passed, the unit goes off
automatically.

To cancel the sleep function
Press POWER El to turn off the power.

Tip
The displays backlight goes off while sleeping time is active.

Connecting optional component

You can enjoy the sound from a PC, TV, VCR, portable
digital music player, etc. through the speakers of this unit,
Be sure to turn off the power of each component before
making any connections,

For details, refer to the instruction manual of the
component to be connected.

1 Connect the AUDIO INjack on the unit to the
line output jack of the portable digital music player
or other components using an audio connecting
cable* (not supplied).

For a PC: use a cable which ﬁlls the connector of your PC.
For a TV or VCR: use a cable with a stereosmim plug on one
end and two phono plugs on the other end.

For a portable digital music player: use a cable with a stereo
rnini plug on both ends.

2 Turn the unitand the connected component on,
3 Press AUDIO IN on the unit and start playing
sound on the connected component.

The sound from the connected component is output
from the speakers.

Discs that this unit CAN play

I Audio CD

I CDvR/CD-RW (CDvDA)

, coon is the abbreviation tor Compact Disc Digital Audio. it is a
recording standard used for Audio cos.

Discs that this unit CAN NOT play

I CD-R/CD~RW other than those recorded in music CD
format

I CDrR/CD-RW of poor recording quality, CD»R/CDRW
that has scratches or are dirty, or CD-R/CD-RW recorded
with an incompatible recording device

I CDrR/CD-RW which is ﬁnalized incorrectly

Notes on discs

I Before playing, clean the CD with a cleaning cloth,
Wipe the CD from the center out, If there is a scratch,
dirt or ﬁngerprints on the CD, it may cause tracking
error,

I Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPS.

0 Do not expose the CD to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in
direct sunlight as there can be a considerable rise in
temperature inside the car.

I Do not stick paper or sticker on the CD, nor scratch the
surface of the CD.

I After playing, store the CD in its case.

On safety

I As the laser beam used in the CD player section is
harmful to the eyes, do not attempt to disassemble the
casing. Refer servicing to qualiﬁed personnel only.

I Should any solid object or liquid fall into the unit,
unplug the unit, and have it checked by qualiﬁed
personnel before operating it any further,

I Discs with non-standard shapes (e.g., heart, square,
star) cannot be played on this unit. Attempting to do so
may damage the unit. Do not use such discs.

0n power sources

I For AC operation, use the supplied AC power cord; do
not use any other type.

I The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet,
even if the unit itself has been turned off.

I Unplug the unit from the wall outlet when it is not used
for an extended period of time.

I When the batteries are not to be used, remove them to
avoid damage that can be caused by battery leakage or
corrosion.

I The nameplate indicating operating voltage, power
consumption, etc, is located at the bottom.

0n placement

I Do not leave the unit in a location near heat sources,
in a place subject to direct sunlight, excessive dust or
mechanical shock or in a car subject to the direct rays
of the sun.

I Do not place the unit on an inclined or unstable place.

I Do not place anything within 10 mm of the side of the
cabinet. The ventilation holes must be unobstructed for
the unit to operate properly and prolong the life of its
components.

I Since a strong magnet is used for the speakers, keep
personal credit cards using magnetic coding or spring
wound watches away from the unit to prevent possible
damage from the magnet.

0n operation

I If the unit is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lens inside the CD player section.
Should this occur, the unit will not operate properly. In
this case, remove the CD and wait about an hour for the
moisture to evaporate.

Cleaning the cabinet

I Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder, or
solvent, such as alcohol or benzine.

If you have any questions or problems concerning your
unit, please consult your nearest Sony dealer.

Troubleshoot ng

General

The power is not on.

. Connect the AC power cord to the wall outlet securely.

0 Make sure the batteries are inserted correctly.

I Replace all the batteries with new ones if they are weak.

I You cannot turn on the unit with the remote when you
operate the unit on batteries.

There is no audio.

I Make sure the function you want to use appears in the
display window.

- Unplug the headphones when listening through
speakers.

Noise is heard.

0 Someone is using a portable telephone or other
equipment that emits radio waves near the unit,
-> Move the portable telephone, etc., away from the
unit.

CD player

The CD does not play or"N0 DISC" is displayed

even when a CD is in place.

0 Place the CD with the label surface up.

0 Clean the CD.

0 Take out the CD and leave the CD compartment open
for about an hour to dry moisture condensation.

0 The CD~R/CD-RW is blank

0 There is a problem with the quality of the CD-R/
CD-RW, recording device or application software.

0 Replace all the batteries with new ones if they are weak.

The sound drops out.

0 Reduce the volume.

0 Clean the CD, or replace it if the CD is badly damaged.

. Place the unit in a location free from vibration,

0 Clean the lens with a commercially available blower.

I The sound may drop out or noise may be heard when
using poor quality CD~R/CD»RW or if there is a
problem with the recording device or application
software.

PM or AM radio

Reception is poor.
0 Reorient the antenna to improve FM reception.

Noise is heard.

I The SIRIUS Connect Home tuner is connected to a wall
outlet through the AC power adaptor.
-> Disconnect the AC power adaptor,

The audio is weak or has poor quality.
0 Replace all the batteries with new ones if they are weak.
I Move the unit away from the TV.

I If you are using the remote while listening to AM radio,
noise may be heard.

The picture of yourTV becomes unstable.
0 If you are listening to an FM program near the TV with
an indoor antenna, move the unit away from the TV.

Satellite radio (XM or SIRIUS)

The unit cannot receive satellite channels at all.

I Check that the XM Mini-Tuner and Home Dock or the
SiriusConnect Home tuner are connected properly

a The receiving condition is not good. Move the antenna
to the place where the condition is good.

0 Check that you subscribed to the desired satellite radio
service (see Before using the unit).

Remote

The remote does not function.

I Replace all the batteries in the remote with new ones if
they are weak

I Make sure that you are pointing the remote at the
remote sensor on the unit.

I Remove any obstacles in the path of the remote and the
unit.

I Make sure the remote sensor is not exposed to strong
light such as direct sunlight or ﬂuorescent lamp light.

I Move closer to the unit when using the remote.

To reset the unit to factory settings

Ifthe unit still does not operate properly, reset the unit to
factory settings

Use buttons on the unit to reset the unit to its factory
default settings.

1 Remove all the batteries from the unit.

2 Disconnect and reconnect the power cord, and then
turn on the unit

and POWER on the unit at

the same time.
All user»conﬁgured settings, such as preset radio

stations and SIRIUS Parental Lock password, are
deleted.

After trying the remedies, if the problem persists, please
consult your nearest Sony dealer.

Messages

ANTENNA: The XM Mini-Tuner and Home Dock is
not connected, Check the connection of the antenna
cord, and then turn the system on again.

CH - - - : You have entered an invalid channel number.
The channel to be tuned-in is void due to the change
by the broadcast service, or the receiving condition
is not good.

LOADING : The system have not ﬁnished receiving the
entire audio data or text information. Some buttons
are not available.

NO SIGNAL : The receiving condition is not good. Try
moving the antenna to another location, Make sure
the antenna points south. For details about the
antenna location, see the instructions supplied with
the XM Mini-Tuner and Home Dock.

OFF AIR : The channel is not broadcasted now.

UPDATING : You have not subscribed for XM or the
channel is not authorized. You need to subscribe for
XM.

- - - - : There is no text information or time information
in the channel. This is not an error. The text
information may not be displayed depending on the
system condition, for example, right after the system
has received a channel.

SIRIUS

ANTENNA 2 The antenna is not connected properly.
Check the connection between the SiriusConnect
Home tuner and the antenna.

LINKING : The receiving condition is not good. Try
moving the antenna to another location. For details
about the antenna location, see the instructions
supplied with the SiriusConnect Home tuner.

CALL 888-539-SIRI : You have not subscribed for the
selected channel.

CHECK SIRIUS : The SiriusConnect Home tuner is not
connected properly. Check all the connections, and
then turn the system on again.

INVALID : You have entered an invalid channel number.
The channel to be tunedvin is void due to the change
by the broadcast service, or the receiving condition
is not good.

SUB UPDT: You have not subscribed for SIRIUS or the
channel is not authorized. You need to subscribe for
SIRIUSr

UPDATING : Channel information or SiriusConnect
Home tuner ﬁrmware is being updated.

Display examples

Display indicates

j 2 (two)

l: 5 (five)

6 (six)

Cl 8 (eight)

l7! 0 (zero)

l-Fl
es
