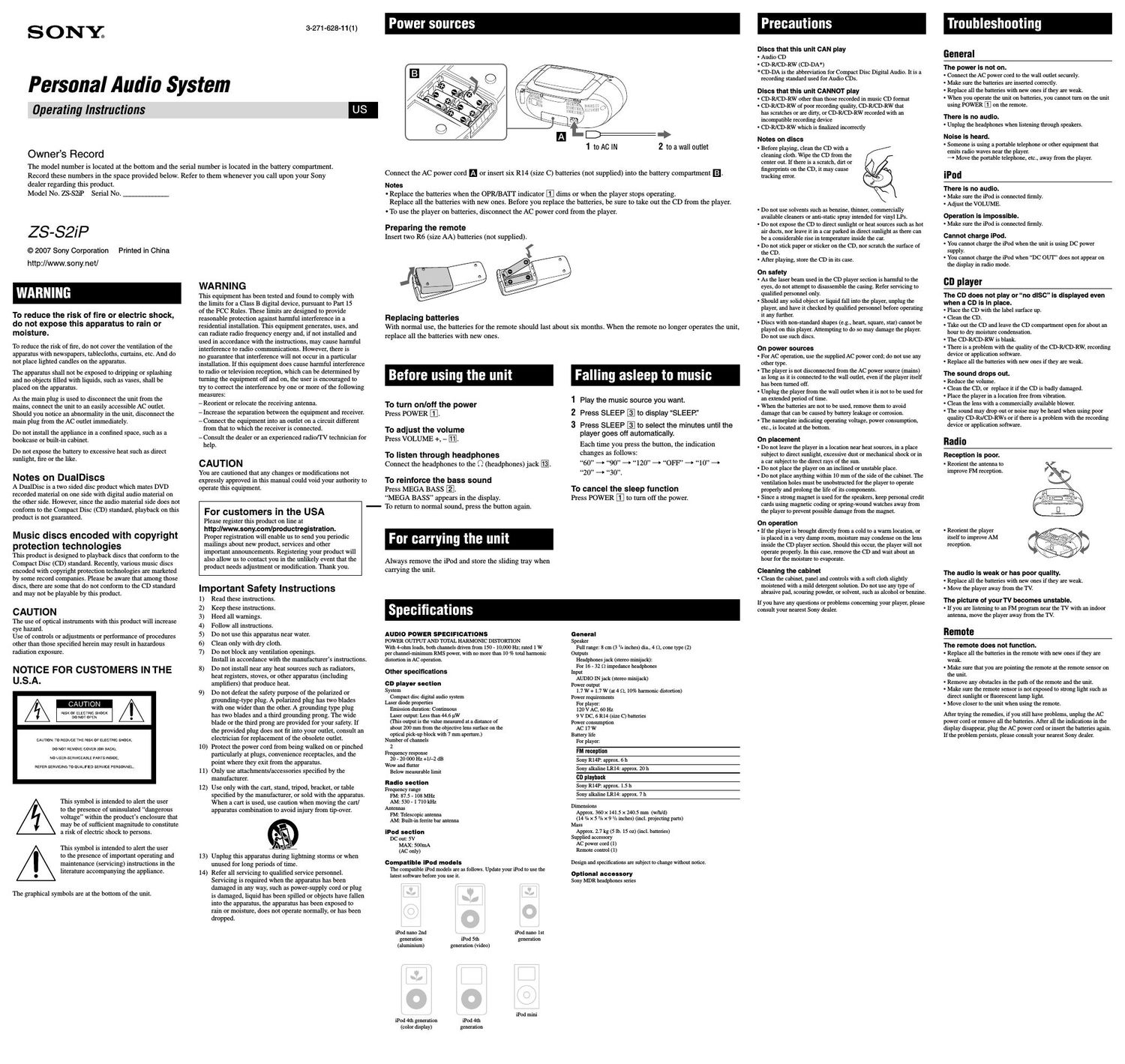

Page 1

SONYs

3-271 4528-1 1 (1)

Personal Audio System

Operating Instructions

Owners Record

The model number is located at the bottom and the serial number is located in the battery compartment.
Record these numbers in the space provided below. Refer to them whenever you call upon your Sony

dealer regarding this product.
Model No. ZS-SZiP Serial No.

Z S-S2iP
© 2007 Sony Corporation
http://www.sony.net/

To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.

Printed in China

To reduce the risk of fire, do not cover the ventilation of the
apparatus with newspapers, tablecloths, curtains, etc. And do
not place lighted candles on the apparatus.

The apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.

As the main plug is used to disconnect the unit from the
mains, connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect the
main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.

Do not expose the battery to excessive heat such as direct
sunlight, fire or the like.

Notes on DualDiscs

A DualDisc is a two sided disc product which mates DVD
recorded material on one side with digital audio material on
the other side. However, since the audio material side does not
conform to the Compact Disc (CD) standard, playback on this
product is not guaranteed.

Music discs encoded with copyright

protection technologies

This product is designed to playback discs that conform to the
Compact Disc (CD) standard. Recently, various music discs
encoded with copyright protection technologies are marketed
by some record companies. Please be aware that among those
discs, there are some that do not conform to the CD standard
and may not be playable by this product.

CAUTION

The use of optical instruments with this product will increase
eye hazard.

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

NOTICE FOR CUSTOMERS IN THE
U.S.A.

CA IO

RlSK or ELECTRlC SHOCK
Do NOT OPEN

CAUTloN To REDUCE we RlSK or ELECTRlC SHOCK

Do NOT REMOVE COVER (on EACKt

NO osewsruvtctiut r PAHlS thtot

REFER sEvaclNG To QUALlFlED sERVlcE PERSONNEL

This symbol is intended to alert the user

to the presence of uninsulated dangerous
voltage" within the product's enclosure that
may be of sufficient magnitude to constitute
a risk of electric shock to persons.

This symbol is intended to alert the user
to the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

The graphical symbols are at the bottom of the unit.

WARNING

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for
help.

CAUTION

You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.

For customers in the USA

Please register this product on line at
http:/Iwww.sony.comlproductregistration.

Proper registration will enable us to send you periodic
mailings about new product, services and other
important announcements. Registering your product will
also allow us to contact you in the unlikely event that the
product needs adjustment or modification. Thank you.

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the manufacturers instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart]
apparatus combination to avoid injury from tip»over.

10

ll

12

o

v-

13

Unplug this apparatus during lightning storms or when
unused for long periods of time.

Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.

14

Power sources Precautions

1 to AC IN 2 to a wall outlet

Connect the AC power cord or insert six R14 (size C) batteries (not supplied) into the battery compartment I3.

Notes

- Replace the batteries when the OPR/BATI indicator dims or when the player stops operating.
Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the player.

- To use the player on batteries, disconnect the AC power cord from the player.

Preparing the remote
Insert two R6 (size AA) batteries (not supplied).

Replacing batteries

With normal use, the batteries for the remote should last about six months. When the remote no longer operates the unit,

replace all the batteries with new ones.

Before using the unit

To turn on/off the power
Press POWER El.

To adjust the volume
Press VOLUME +, v El.

To listen through headphones
Connect the headphones to the Q (headphones) jack

To reinforce the bass sound

Press MEGA BASS E.

MEGA BASS appears in the display.

To return to normal sound, press the button again.

For carrying the unit

Always remove the iPod and store the sliding tray when
carrying the unit.

Falling asleep to music

1 Play the music source you want.

2 Press SLEEP to display SLEEP.

3 Press SLEEP to select the minutes until the
player goes off automatically.
Each time you press the button, the indication
changes as follows:
1.60.._,.190.. _, .1120 _, OFF _, 10.. _,
1.20.. _, 30".

To cancel the sleep function
Press POWER 3 to turn off the power.

per: cat ons

Aunlo POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DlSTORTlON

With 4-ohm loads. both channels driven from 150 - 10,000 HZ: rated 1 W
per channchninimum RMS power, with no more than 10 We total harmonic
dls|ortion in AC operation.

Other specifications

CD player section
System
Compact disc digital audio system
laser diode properties
Emission duration Continuous
Laser output Less than 44.6 w
(This output is the value measured at a distance of
about 200 mm from die objective lens surface on the
optical pick-up block with 7 mm apemire.)
Number of channels
2
Frequency response
20 - 20 000 Hz +ll~2 dE
Wow and flutter
Below measurable limit

Radio section
Frequency range

FM: 37.5 >108 MHz

AM 530 - l 710 kHz
Antennas

FM: Telescopic antenna

AM Built-in ferrite bar antenna

iPod section
DC out: 5v
MAX: SODmA
(AC only)

Compatible iPod models
The compatible iPod models are as follows. Update your iPod to use the
latest software before you use it.

iPod nano 2nd iPod nano lst

generation iPod 5th generation
(alurriinium) generation (video)
iPod mint
iPod 4th generation iPod 4m
(color display) generation

General
Speaker
Full range 8 cm (3 Vi inches) dis, 4 t1, cone type (2)
Outputs
Headphones jack (stereo miiiljack):
For lo - 31 t2 impedance headphones
input
AUDlo tN jack (stereo minijuck)
Power output
17 w +1.7 W (at 4 s1, 10% harmonic distortion)
Power requirements
For player:
120 v AC, 60 Hz
9 v DC, 6 R14 (size C) batteries
Power consumption
AC 17 w
Battery life
For player:

FM reception

Sony R1417: approx 6 h

Sony alkaline Lk14 approx. 20 h
on playback

Sony R1417: approx 1.5 h

Sony alkaline 1.1114 approx. 7 h

Dimensions

Approx. 360 x 141.5 x 240 5 mm (w/h/d)

(14 u x s 5h x 9 In inches) (incl. projecting pans)
Mass

Approx. 2.7 kg (5 1b. 15 oz) (incl. batteries)
Supplied accessory

AC power cord (1)

Remote control (1)

Design and specifications are subject to change without notice.

Optional accessory
Sony MDR headphones series

Discs that this unit CAN play

- Audio CD

- CDrR/CDRW (CDrDAt)

CDrDA is Ihe abbreviation for Compact Disc Digital Audio. It is a
recording standard used for Audio CDS.

Discs that this unit CANNOT play

- CDrR/CDrRW other than those recorded in music CD format

- CDrR/CDVRW of poor recording quality. CDrR/CDVRW that
has scratches or are dirty. or CDrR/CDVRW recorded with an
incompatible recording device

- CDrR/CDVRW which is finalized incorrectly

Notes on discs

- Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out. If there is a scratch, dirt or
fingerprints on the CD, it may cause
tracking error.

- Do not use solvents Such as benzine. thinner, commercially
available cleaners or antistatic spray intended for vinyl LPs.

- Do not expose the CD to direct sunlight or heat Sources such as hot
air ducts, not leave it in a car parked in direct sunlight as there can
be a considerable rise in temperature inside the Car.

- Do not stick paper or sticker on the CD. not scratch the surface of
the CD.

- After playing, Store the CD in its case.

On safety

- As the laser beam used in the CD player Section is harmful to the
eyes, do not attempt to disassemble the casing. Refer servicing to
qualified personnel only.

- Should any solid object or liquid fall into the player, unplug the
player, and have it checked by qualified personnel before operating
it any further.

- Discs with nonstandard shapes (cg, heart, square, star) cannot be
played on this player. Attempting to do so may damage the player.
Do not use such discs.

On power sources

- For AC operation, use the supplied AC power cord: do not use any
other type.

- The player is not disconnected from the AC power source (mains)
as long as it is connected to the wall outlet, even if the player itself
has been turned off.

- Unplug the player from the wall outlet when it is not to be used for
an extended period of lime.

- When the batteries are not to be used, remove them to avoid
damage that can be caused by battery leakage or corrosion.

- The nameplate indicating operating voltage, power consumption,
etc., )5 located at the bottom.

On placement

- Do not leave the player in a location near heat sources, in a place
subject to direct sunlight, excessive dust or mechanical shock or in
a car subject to the direct rays of the sun.

- Do not place the player on an inclined or unstable place.

- Do not place anything within 10 mm of the side of the cabinet. The
venlilalion holes must be unobstructed for the player to operate
properly and prolong the life of its components.

- Since a strong magnet is used for the speakers, keep personal credit
cards usmg magnetic coding or spi'ingrwound watches away from
the player to prevent possible damage from the magnet.

On operation

- If the player is brought directly from a cold to a warm location, at
is placed in a very dump room, moisture may condense on the lens
inside the CD player section. Should this occur, the player will not
operate properly. In this case, remove the CD and wait about an
hour for the moistilre to evaporate.

Cleaning the cabinet

- Clean the cabinet, panel and controls with n soft cloth slightly
moistened with a mild detergent Solution. Do not use any type of
abrasive pad, securing powder, or solvent, such as alcohol or benzi'ne.

if you have any questions or problems concerning your player, please
consult your nearest Sony dealer.

Troubleshooting

General

The power is not on.

- Connect the AC power cord to the wall outlet Securely.

- Make sure the batteries are inserted correctly.

- Replace all the batteries with new ones if they are weak.

- When you operate the unit on batteries, you cannot tum on the unit
using POWER on the remote.

There is no audio.
- Unplug the headphones when listening through speakers.

Noise is heard.

- Someone is using a portable telephone or other equipment that
emits radio waves near the player.
a Move the portable telephone, ctc., away from the player.

iPod

There is no audio.
- Make sure the iPod is connected firmly.
- Adjust the VOLUME.

Operation is impossible.
- Make sure the iPod iS connected firmly.

Cannot charge iPod.

- You cannot charge the iPod when the unit is using DC power
supply.

- You cannot charge the iPod when DC OUT" does not appear on
the display in radio mode.

GI) player

The CD does not play or no dISC is displayed even

when a CD is in place.

- Place the CD With Ihe label surface up.

- Clean the CD.

- Take out the CD and leave the CD compartment open for about an
hour to dry moisture condensation.

- The CD-R/CDVRW is blank.

- There is a problem with the quality of the CDrR/CDer, recording
device or application software.

- Replace all the batteries with new ones if they are weak.

The sound drops out.

- Reduce the volume.

- Clean the CD, or replace it if the CD is badly damaged.

- Place the player in a location free from vibration.

- Clean the lens with a commercially available blower.

- The sound may drop out or noise may be heard when using poor
quality CDRS/CDRWS or if there is a problem with the recording
device or application software.

Radio

Reception is poor.
- Reorient the antenna to
improve FM reception.

- Reorient the player
itself to improveAM
reception.

The audio is weak or has poor quality.
- Replace all the batteries with new ones if they are weak.
- Move the player away from the Tv.

The picture of yourTV becomes unstable.
- If you are listening to an FM program near the TV with an indoor
antenna, move the player away from the TV.

Remote

The remote does not function.

- Replace all the batteries in the remote with new ones if they are
weak.

- Make Sure that you are pointing the remote at the remote sensor on
the unit.

- Remove any obstacles in the path of the remote and the unit.

- Make sure the remote sensor is not exposed to strong light such as
direct sunlight or fluorescent lamp light.

- Move closer to the unit when using Ihe remote.

After trying the remedies, if you still have problems, unplug the AC
power cord or remove all the batteries. After all the indications in the
display disappear, plug the AC power cord or insert the batteries again.
if the problem persists, please consult your nearest Sony dealer.

Page 2

Basic Operations

13

12
14

VOLUME + and NI have a tactile dot.

mod on

CD]

E

@ QsQ

usuu

O
[E
O

@0

@QE

@

@@

VOLUME + have a tactile dot.

Opening/closing the Sliding Tray

Setting the iPod

1 Press the PUSH OPEN/CLOSE button I.
The Sliding Tray IE is ejected halfway.

2 Pull the Sliding Tray @ all the way out.

3 Attach the iPod Universal Dock Adapter if
necessary (not supplied).

4 Place your iPod on the Sliding Tray I.

5 Push in and adjust the Sliding Tray El so that the
iPod fits on the Back Support I.

Playing a CD

1 Press CD @ (direct power-on).
2 Press 2 PUSH OPEN/CLOSE and place a disc
with the label side up in the CD compartment.

To close the CD compartment, press A PUSH OPEN/
CLOSE I.

3 Press >|I I.
The player plays all the tracks once.

M
I F! I'I-II -

Track . - Playing
number -# LIL/U time

To Press

Pause playback b"
To resume play, press it again.

Stop playback I

Closing the Sliding Tray
1 Remove the iPod

2 Push the Sliding Tray until it clicks.
3 Press the PUSH OPEN/CLOSE button I.
4 Push the Sliding Tray IE into the unit.

Notes

- Do not carry the unit with an iPod set on the connector. Doing so
may cause a malfunction.

- Be sure to store the Sliding Tray before moving the unit.

Playing the iPod

1 Press iPod (direct power-on).
DC OUT appears in the display (AC only).

iPod

2 Press >II I.

The iPod begins to play.
You can operate the connected iPod by the unit or the
iPod buttons.

To Press

Pause playback >Il

To resume play, press it again.
Stop playback I
Go to the next PM E
track
Go back to the I44 @
previous track
Locate a point >>l (forward) or I44 (backward)
while listening to IE while playing and hold it until
the sound you find the point.
Locate a point >>l (forward) or I44 (backward)
while observing IE in pause and hold it until you
on the iPod find the point.
display

Press MENU and f or S on the
remote to select a menu, and then
press ENTER
Go back to the Press MENU
previous menu

Select a menu

on the remote.

Notes

- You may use the universal adaptor supplied with your iPod for a
more custormzed fit. The iPod may be docked Without the use of an
adaptor.

- If you connect the iPod when another function is in use, the
function will change to iPod automatically.

- Apples iPod Universal Dock Adapter (not supplied) can be used
With this unit.

- To use an iPod, refer to the users guide of your iPod.

- Before disconnecting the iPod, pause playback.

To use the unit as a battery charger (AC
only)

You can use the unit as a battery charger. The charging
status appears in the iPod display. For details, see the
users guide of your iPod.

On copyrights

- iPod is a trademark of Apple lnc., registered in the U.S.
and other countries.

- All other trademarks and registered trademarks are
of their respective holders. In this manual, "M and ®
marks are not specified.

Go to the next >>I IE
track
Go back to the I44 E]

previous track

Locate a point >>l (forward) or I44 (backward)
while listening to El while playing and hold it until

the sound you find the point.

Locate a point >>l (forward) or I44 (backward)
while observing El in pause and hold it until you
the display find the point.

Remove the CD 2 PUSH OPEN/CLOSE

Using the display

To check the total track number and playing
time

ln stop mode, press DISPLAY'ENTER or DISPLAY
on the remote.

To check the remai ' 9 time

Press DISPLAY-ENTER or DISPLAY on the
remote repeatedly while playing a CD. The display
changes as follows:

The current track number and playing time

The current track number and the remaining
time of the current track*

The number of tracks left and remaining
time on the CD

* For a track whose number is more than 20. the remaining time
appears as 7:7 in the display.

Selecting the play mode

Press MODE E until 3 1, 3", SI-1UP", SHUF
and G", PGM, or PGM and 3 appear in

the display. Then proceed as follows:

Then do this

Press I44 or >>I El to
select the track that you want
to repeat, then press >I

Press b" I.

To Select Select

Repeat a G 1
single track

Repeat all 4;
tracks

Shuffle play SHUF Press b" I.

Repeat tracks SHUF Press b" I.
in random and ¢

order
Program PGM Press I44 or >>I El then
play press DISPLAY-ENTER E
or ENTER on the remote
for the tracks (up to 20) you
want to program in the order
you want. Then press b"
g) I I (
- PGM -
I; |\\
Programed H 3 IV I Playing
track U U I order
Repeat PGM Press l44 or m El then
programed and ¢ press DISPLAY-ENTER IE
tracks or ENTER on the remote

for the tracks (up to 20) you
want to program in the order
you want. Then Press b" I.

To cancel the selected play mode
Press MODE E repeatedly until the selected mode
disappears from the display.

To check the programed track and playing
order in the display

To check the order of tracks before play, press
DISPLAY-ENTER or ENTER on the remote.
Every time you press the button, the track number
appears in the programed order.

To change the current program

Press I once if the CD is stopped and twice if the
CD is playing. The current program will be erased.
Then create a new program following the programing
procedure.

Tip

You can play the same program again, since the program is saved
until you open the CD compartment.

Listening to the radio

1 Press RADIO-BAND-AUTO PRESET
repeatedly (direct tower-on) or press RADIO
and press BAND repeatedly on the remote.
Each time you press the button, the indication
changes as follows:

FM H AM

2 Hold down TUNE + or - E until the frequency
digits begin to change in the display.

The player automatically scans the radio frequencies
and stops when it finds a clear station.

If you cant tune in a station, press the button
repeatedly to change the frequency step by step.
When an FM stereo broadcast is received, ST
appears.

Tips

- If the FM broadcast is notsy, press MODE E until Mono" appears
in the display and the radio will play in monaural.

- If you touch or operate an iPod connected to this unit while
listening to AM/FM, noise may occur. Avoid touching or operating
the iPod in this case.

- If you hear noise from the AMIFM while supplying power to
iPod (DC OUT indicator appears in the display). press and hold

MODE for a few seconds to stop the power supply to the iPod (DC
our" indicator disappears from the display).

Presetting radio stations

You can store radio stations into the players memory.
You can preset up to 30 radio stations, 20 for FM and 10
for AM in any order.

1 Press RADIO-BAND-AUTO PRESET IE or
BAND on the remote to select the band.

2 Hold down RADIO-BAND-AUTO PRESET
or RADIO on the remote for 2 seconds until
AUTO flashes in the display.

3 Press DISPLAY-ENTER or ENTER on the
remote.

The stations are stored in memory from the lower
frequencies to the higher ones.

If a station cannot be preset automatically
You need to preset a station with a weak signal
manually.

1 Press RADIO-BAND-AUTO PRESET IE or
BAND on the remote to select the band.

2 Tune in a station you want.

3 Hold down DISPLAY-ENTER or ENTER
on the remote for 2 seconds until the preset
number flashes in the display.

4 Press PRESET + or- El until the preset number
you want for the station flashes in the display.

5 Press DISPLAY-ENTER or ENTER on the
remote.
The new station replaces the old one.
Tip
The preset radio stations remain in memory even if you unplug the
AC power cord or remove the batteries.

Playing preset radio stations

1 Press RADIO-BAND-AUTO PRESET or
BAND on the remote to select the band.

2 Press PRESET + or - El to tune in the stored
station.

Connecting optional components

You can enjoy the sound from an optional component
such as a portable digital music player through the
speakers of this unit. Be sure to turn off the power of
each component before making any connections. For
details, refer to the instruction manual of the component
to be connected.

1 Connect the AUDIO IN jack on the unit to
the line output jack of the portable digital music
player or other components using an audio
connecting cable (not supplied).

2 Turn the unit and the connected component on.
3 Press AUDIO IN and start playing sound on
the connected component.
The sound from the connected component is output
from the speakers.

To connect the unit to a TV or VCR, use an extension
cable (not supplied) with a stereo-mini jack on one
end and two phono plugs on the other end.
