Sony zs d 55 ver 1 1
This is the 58 pages manual for sony zs d 55 ver 1 1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony zs d 55 ver 1 1 (Ocr-read)

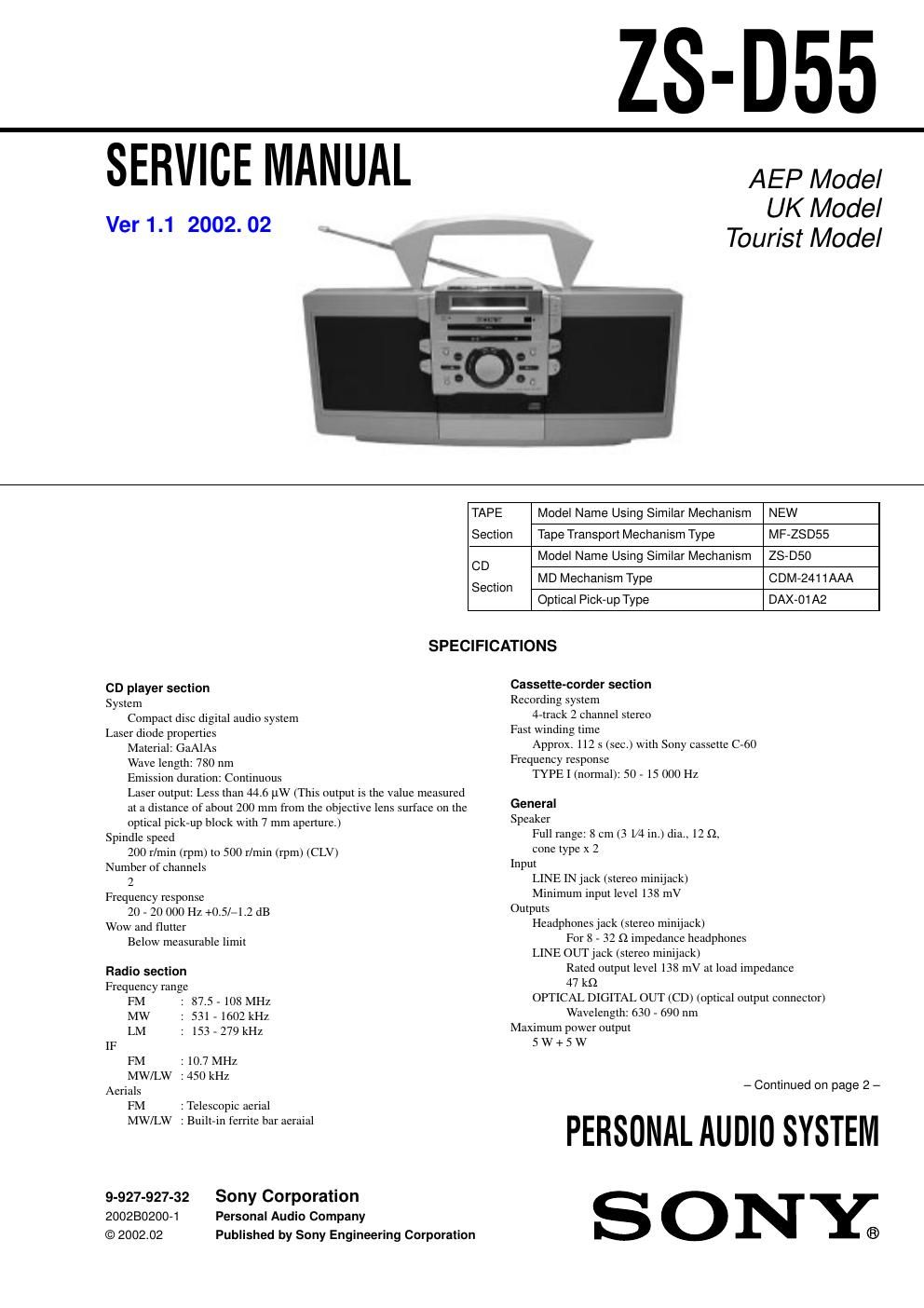

Page 1
– 2 – Specifications ........................................................................... 1 1. SERVICE NOTE ........................................................... 3 2. GENERAL ...................................................................... 4 3. DISASSEMBLY 3-1. Cabinet Rear ASSY, Cabinet Front ASSY ................ 6 3-2. Power Board, P/T In Board, P/T Out Board, BATT S Board ........................................................... 7 3-3. Tuner Board .............................................................. 7 3-4. Jack Board ................................................................. 7 3-5. Audio Board .............................................................. 8 3-6. CD Board .................................................................. 8 3-7. TC Board ................................................................... 9 3-8. Cabinet Top ASSY .................................................... 9 3-9. H/P Board ................................................................ 10 3-10. TC/M Board ............................................................ 10 3-11. MD Block ASSY ...................................................... 11 3-12. TC LED (L) Board, TC LED (R) Board, TC Key Board .......................................................... 11 3-13. TC RF Board, Head Relay Board, Belt FR, Belt BR, Capstan/Reel Motor (M691) .................... 12 3-14. CD Chassis ASSY ................................................... 12 3-15. CD Block Section ................................................... 13 3-16. Loading Board ........................................................ 13 3-17. Tray ASSY, CD ................................................... 14 3-18. Optical Pick-up Block, Pick-up Relay Board ......... 14 3-19. Panel DECO ASSY ................................................ 15 3-20. Control Board, JOG LED1 Board, JOG LED2 Board .................................................... 15 3-21. Key Board ............................................................... 16 TABLE OF CONTENTS 3-22. BATT Board ........................................................... 16 4. TEST MODE ................................................................ 17 5. ADJUSTMENTS 5-1. Mechanical Adjustmens ............................................ 18 5-2. Electrical Adjustments .............................................. 19 6. DIAGRAMS 6-1. Explanation of IC Terminals ................................... 22 6-2. Block Diagrams (Tape, Main Section) ................... 24 6-3. Block Diagrams (Tuner, CD Section) .................... 27 6-4. Printed Wiring Boards (Main Section) ................... 31 6-5. Schematic Diagram (Main Section) ....................... 35 6-6. Schematic Diagram (CD Section) .......................... 39 6-7. Printed Wiring Boards (CD Section) ...................... 43 6-8. Printed Wiring Boards (Contorl Section) ............... 45 6-9. Schematic Diagram (Control Section) .................... 47 6-10. Printed Wiring Boards (Tuner Section) .................. 51 6-11. Schematic Diagram (Tuner Section) ...................... 52 7. EXPLODED VIEWS 7-1. Rear Cabinet Section ................................................ 60 7-2. Front Cabinet Section ............................................... 61 7-3. CD Block Section ..................................................... 62 7-4. Top Cabinet Section .................................................. 63 7-5. Mechanism Deck Section (1/2) ................................ 64 7-6. Mechanism Deck Section (2/2) ............................... 65 7-7. CD Section ................................................................ 66 7-8. Optical Pick-up Section ............................................ 67 8. ELECTRICAL PARTS LIST ................................... 68 Power requirements For personal audio system: 230V AC, 50 Hz 12 V DC, 8 R20 (size D) batteries For memory back-up: 6 V DC, 4 R6 (size AA) batteries For remote control: 3 V DC, 2 R6 (size AA) batteries Power consumption AC 20 W Battery life For personal audio system FM recording Sony R20P: approx. 6 h Sony alkaline LR20: approx. 12 h Tape playback Sony R20P: approx. 3 h Sony alkaline LR20: approx. 6 h CD playback Sony R20P: approx. 1.5 h Sony alkaline LR20: approx. 3 hDimensions (incl. projecting parts) Approx. 486 x 244 x 177 mm (w/h/d) (17 1⁄10 x 9 3⁄5 x 6 9⁄10 inches) Mass (incl. batteries) Approx. 6.2 kg (13 lb. 11 oz) Supplied accessories Mainns Lead (1) Remote control (1) Design and specifications are subject to change without notice.
Page 2
– 3 – NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve more than 30 cm away from the objective lens.LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Close the tray for CD. 2. Press CD u button. 3. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. CAUTION DURING WHEN MOUNTING THE PULLEY FOR THE LOADING MOTOR Make the following adjustment when mounting the loading motor (part number : 1-698-999-11) and motor pulley (part number : 2- 627-174-01) of the CD section. Specification : A = 0.9 to 1.1mm SECTION 1 SERVICE NOTE
