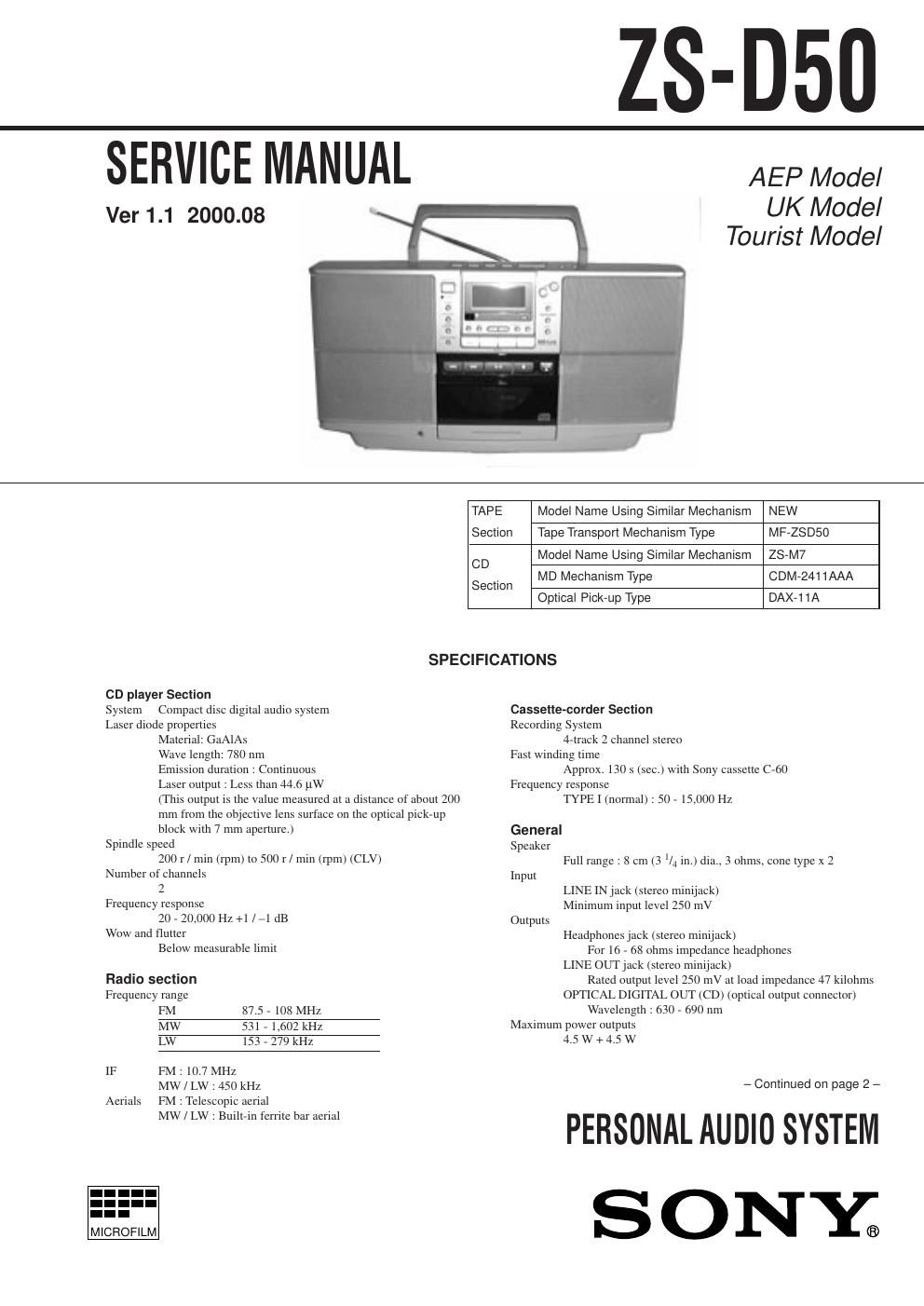

Ð 2 Ð Specifications ........................................................................... 1 1. SERVICE NOTE ........................................................... 3 2. GENERAL ...................................................................... 4 3. DISASSEMBLY 3-1. ÒCabinet, RearÓ, ÒCabinet Sub ASSY, FrontÓ ............ 6 3-2. Inlet Board, Power Board ........................................... 7 3-3. Battery (R) Board, Battery (L) Board ......................... 7 3-4. Cabinet (Upper) ASSY ............................................... 7 3-5. Switch (1) Board ......................................................... 8 3-6. Mechanism Deck ........................................................ 8 3-7. Line Board .................................................................. 8 3-8. Tuner Board ................................................................ 8 3-9. CD Block ASSY ......................................................... 9 3-10. Headphone Board ..................................................... 9 3-11. Switch (2) Board, LCD Board, Lamp Board .......... 10 3-12. Main Board, CD/System Board .............................. 10 3-13. CD Block Section .................................................... 11 3-14. TC RF Board, Head Relay Board, Belt (FR/BR), Motor (M691) .................................. 11 3-15. Tray ASSY, CD ....................................................... 12 3-16. Loading Board ........................................................ 12 3-17. Optical Pick-up Block, Pick-up Relay Board ......... 12 4. TEST MODE ................................................................ 13 TABLE OF CONTENTS 5. ADJUSTMENTS 5-1. Mechanical Adjustmens ............................................ 14 5-2. Electrical Adjustments .............................................. 14 6. DIAGRAMS 6-1. Explanation of IC Terminals ..................................... 18 6-2. Block Diagrams (Tape, Main Section) ..................... 20 6-3. Block Diagrams (Tuner, CD Section) ....................... 23 6-4. Printed Wiring Boards (Main Section) ..................... 27 6-5. Schematic Diagram (Main Section) ......................... 31 6-6. Printed Wiring Boards (CD/System Section) ........... 36 6-7. Schematic Diagram (CD/System Section) ............... 41 6-8. Printed Wiring Boards (Tuner Section) .................... 46 6-9. Schematic Diagram (Tuner Section) ........................ 48 7. EXPLODED VIEWS 7-1. Rear Cabinet Section ................................................ 56 7-2. Front Cabinet Section ............................................... 57 7-3. CD Block Section ..................................................... 58 7-4. Mechanism Deck Section -1 ..................................... 59 7-5. Mechanism Deck Section -2 ..................................... 60 7-6. CD Section ................................................................ 61 7-7. Optical Pick-up Section ............................................ 62 8. ELECTRICAL PARTS LIST ................................... 63 Power requirements For personal audio system : 230V AC, 50 Hz 12 V DC, 8 R20 (size D) batteries For memory back-up : 6 V DC, 4 R6 (size AA) batteries For remote commander : 3 V DC, 2 R6 (size AA) batteries Power consumption AC 27 W Battery life For personal audio systemFM recording Sony R20P : approx. 6 hSony alkaline LR20 : approx. 12 hTape playback Sony R20P : approx. 3 hSony alkaline LR20 : approx. 6 hCD playback Sony R20P : approx. 1.5 hSony alkaline LR20 : approx. 3hDimensions (incl. projecting parts) Approx. 435 x 223 x 160 mm (w / h / d) (17 1/4 x 8 7/8 x 6 1/8 inches) Mass (incl. batteries) approx. 4.3 kg (9 lb. 7 oz) Supplied accessories AC power cord (1) Remote commander (1) Plug adaptor (1) (UK) Design and specifications are subject to change without notice.
Page 2
Ð 3 Ð NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Close the lid for CD. 2. Press CD ^ button. 3. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down once for the focus search. CAUTION DURING WHEN MOUNTING THE PULLEY FOR THE LOADING MOTOR Make the following adjustment when mounting the loading motor (part number : 1-698-999-11) and motor pulley (part number : 2- 627-174-01) of the CD section. Specification : A = 0.9 to 1.1mm SECTION 1 SERVICE NOTE SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270¡C during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat.
