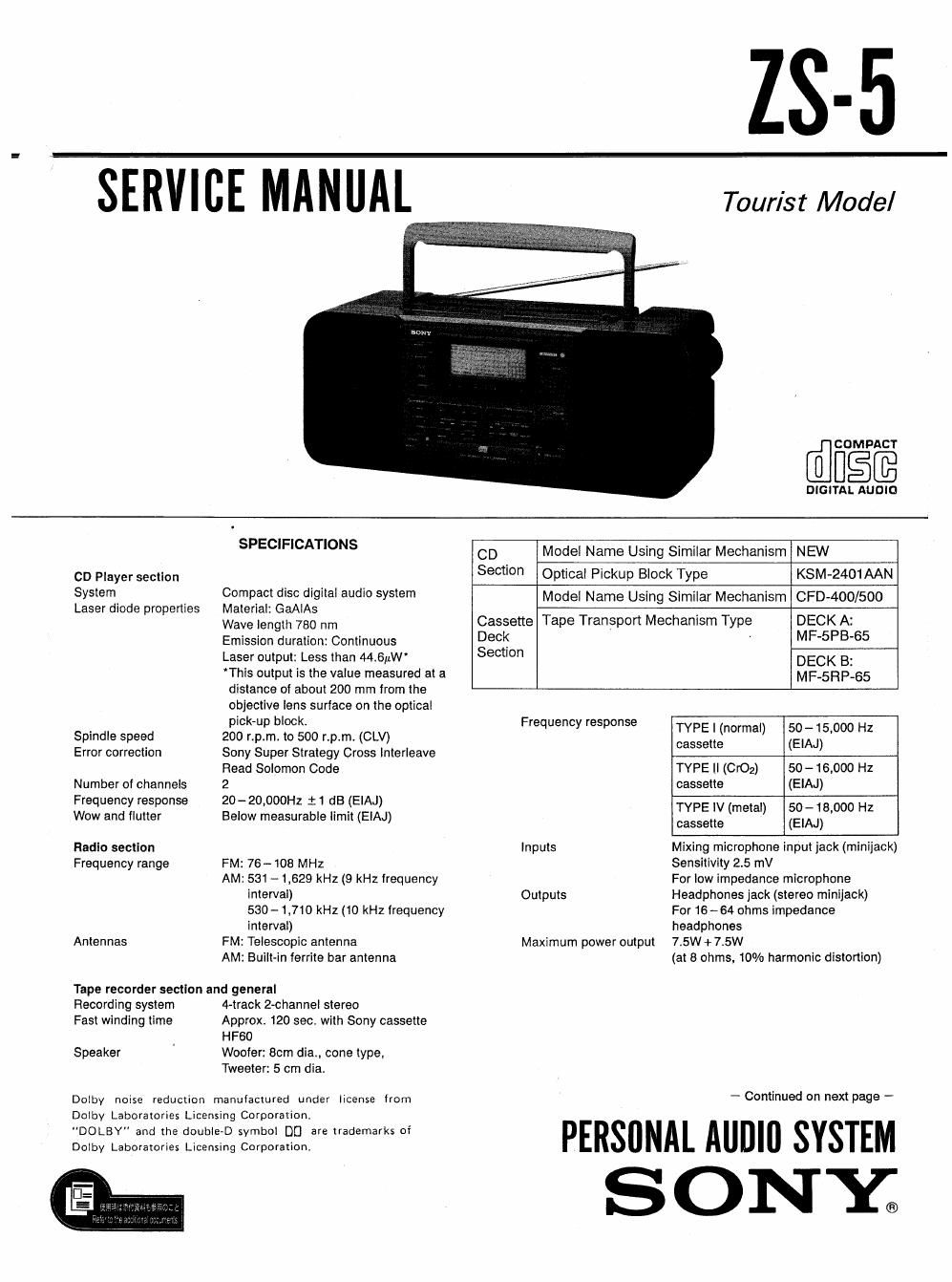

ZS-5

SERVICE MANUAL

Tourist Model

WEE

DIGITAL AUDIO

CD Player section
System
Laser diode properties

Spindle speed
Error correction

Number of channels
Frequency response
Wow and flutter

Radio section
Frequency range

Antennas

SPECIFICATIONS

Compact disc digital audio system

Material: GaAlAs

Wave length 780 nm

Emission duration: Continuous

Laser output: Less than 44i6pW'

'This output is the value measured at a
distance of about 200 mm from the
objective lens surface on the optical
pick~up block,

200 rpm, to 500 rpm, (CLV)

Sony Super Strategy Cross lnterleave

Read Solomon Code

2

20-20,000Hz :1 dB (EIAJ)

Below measurable limit (ElAJ)

FM: 76-- 108 MHz

AM: 531 -1,629 kHz (9 kHz lrequency
interval)
530-1.?10 kHz (10 kHz frequency
interval)

FM: Telescopic antenna

AM: Built-in ferrite bar antenna

Tape recorder section and general

Recording system
Fast winding time

Speaker

4-track 2-channel stereo

Approx. 120 sec. with Sony cassette
HF60

Woofer: 8cm dia., cone type,
Tweeter: 5 cm dia.

Dolby noise reduction manufactured under license Irom
Dolby Laboratories Licensing Corporation:
"DOLBY" and the double-D symbol D!) are trademarks of
Dolby Laboratories Licensing Corporation:

CD Model Name Using Similar Mechanism NEW

Section

Optical Pickup Block Type

KSM-2401AAN

Model Name Using Similar Mechanism CFD-400/500

Cassette Tape Transport Mechanism Type DECK A:
Deck , MF-5PB-65
Section DECK B:
MF-SRP-BS
Fequency 95pm TYPE I (normal) 50-15,ooo Hz
cassette (EIAJ)
TYPE [I (CrOz) 50 - 16,000 Hz
cassette (EIAJ)
TYPE IV (metal) 50 -18,000 Hz
cassette (ElAJ)

Inputs

Outputs

Maximum power output

Mixing microphone input jack (minijack)
Sensitivity 25 mV

For low impedance microphone
Headphones jack (stereo minijack)

For 16 - 64 ohms impedance
headphones

7:5W + 7.5W

(at 8 ohms, 10% harmonic distortion)

- Continued on next page -

PERSllNAL Alllllll SYSTEM
SONE

Page 2

ZS-5

Power requirements

Power consumption

For CD radio cassette-corder
AC 100V-110V, 120V, 220V, 240V
DC 12V, 8 size D (R20) batteries
For clock/timerlmemory
DC 6V, 4 size AA (H6) batteries
For remote commander
DC 3V, 2 size AA (H6) batteries
30-37W (100-110V)
37W (120V, 220V, 240V)

Battery ille
Batteries for CD radio cassette corder
Recording Playback CD playing
Sony SUM-1 (NS) approx. 4H approx. 2H approx, 1H
Sony Alkaline AMI approxi 9.5H approx. 5H Iapprox 3.5H

For clock/timar/memory: approx. 1 year

480 x 198 x 252.5 mm (w/hld) (ElAJ)
incl. projecting parts and controls

Dimensions

Weight

Supplied accessories

7.9kg

(incl. batteries; excl. supplied

accessories)

AC power cord (1)
Remote commander (RMT-CS) (1)
AC plug adaptor (1)

Design and specifications subject to change without notice,

SA FETY-RELATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-

LISHED BY SONY.
