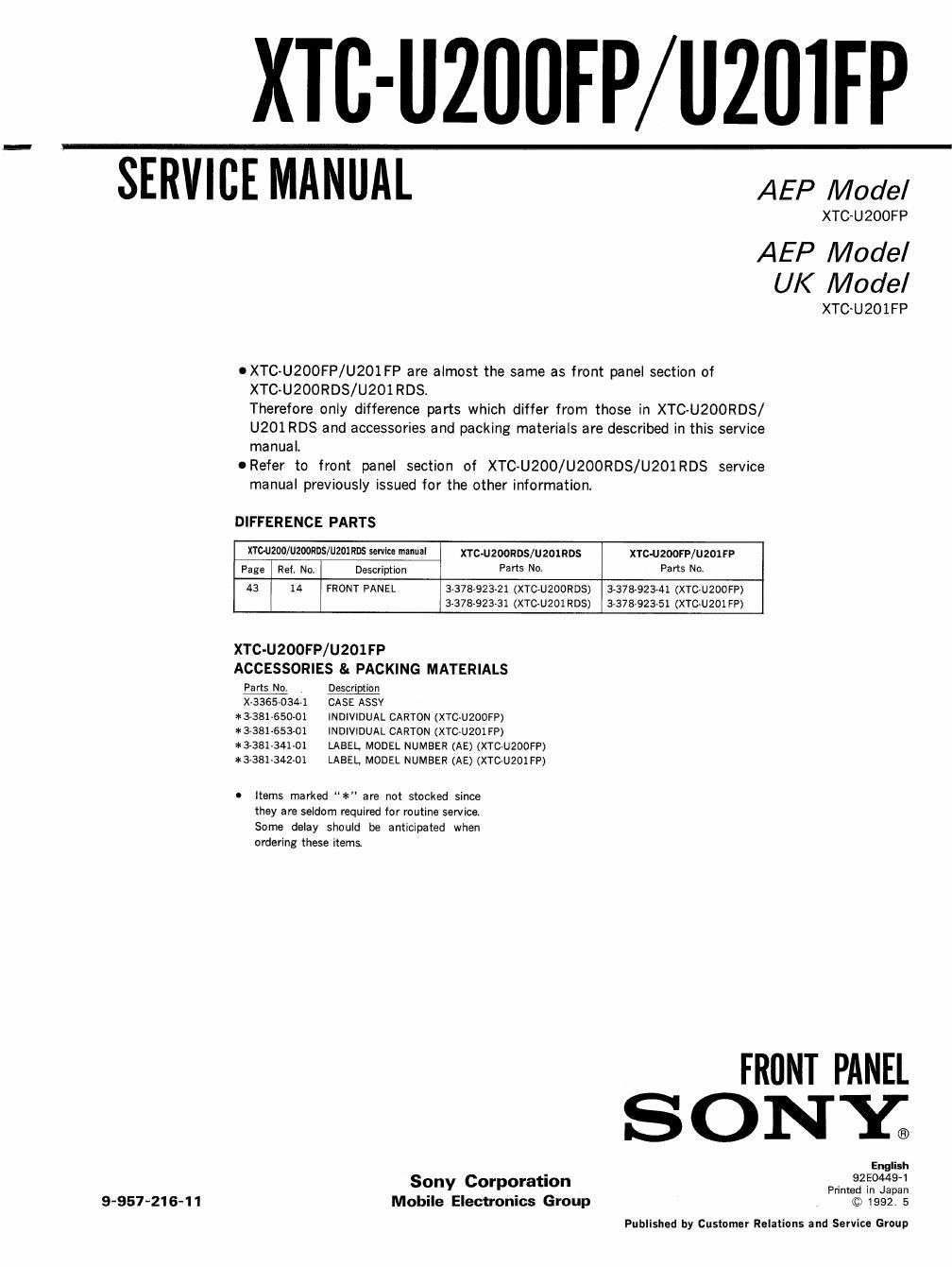

XTC-UZIIIIFP/UZUIFP

SERVICE MANUAL AEP Model

XTC-U200FP

AEP Model
UK Model

XTCU201FP

OXTC-U200FP/U201FP are almost the same as front panel section of
XTC-U2OORDS/U201RDS.
Therefore only difference parts which differ from those in XTC-U2OORDS/
U201 RDS and accessories and packing materials are described in this service
manual.

0 Refer to front panel section of XTC-U200/U200RDS/U201RDS service
manual previously issued for the other information.

DIFFERENCE PARTS

XTOUZOOIUZODRDS/UZMRDS service manual XTC-UZOORDs/UZOARDS XTC-UZOOFP/UZOIFV
Page Ref. No. Description Parts N°~ Parts N0»
43 14 FRONT PANEL 337392321 (XTC-UZOORDS) 3378923'41 (XTC-UZOOFF')
3378-92331 (XTOU201RDS) 337392351 (XTC-U201FF)

XTC-UZOOFP/UZOIFP
ACCESSORIES & PACKING MATERIALS

Pans No. Descrietion

X~3365~034L1 CASE ASSY
*3»381-650~01 INDIVIDUAL CARTON (XTC-UZOOFP)
*3-381-653»01 INDIVIDUAL CARTON (XTGUZOIFP)
*3-381-341-01 LABEL. MODEL NUMBER (AE) (XTC-UZOOFP)
*3-381342-01 LABEL. MODEL NUMBER (AE) (XTC-UZOIFP)

- ltems marked *" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.

FRONT PANEL
SONY;

English

' 92E0449-1

Sony Corporation Primed in Japan

Published by Customer Relations and Service Group
